16
Instruction Manual

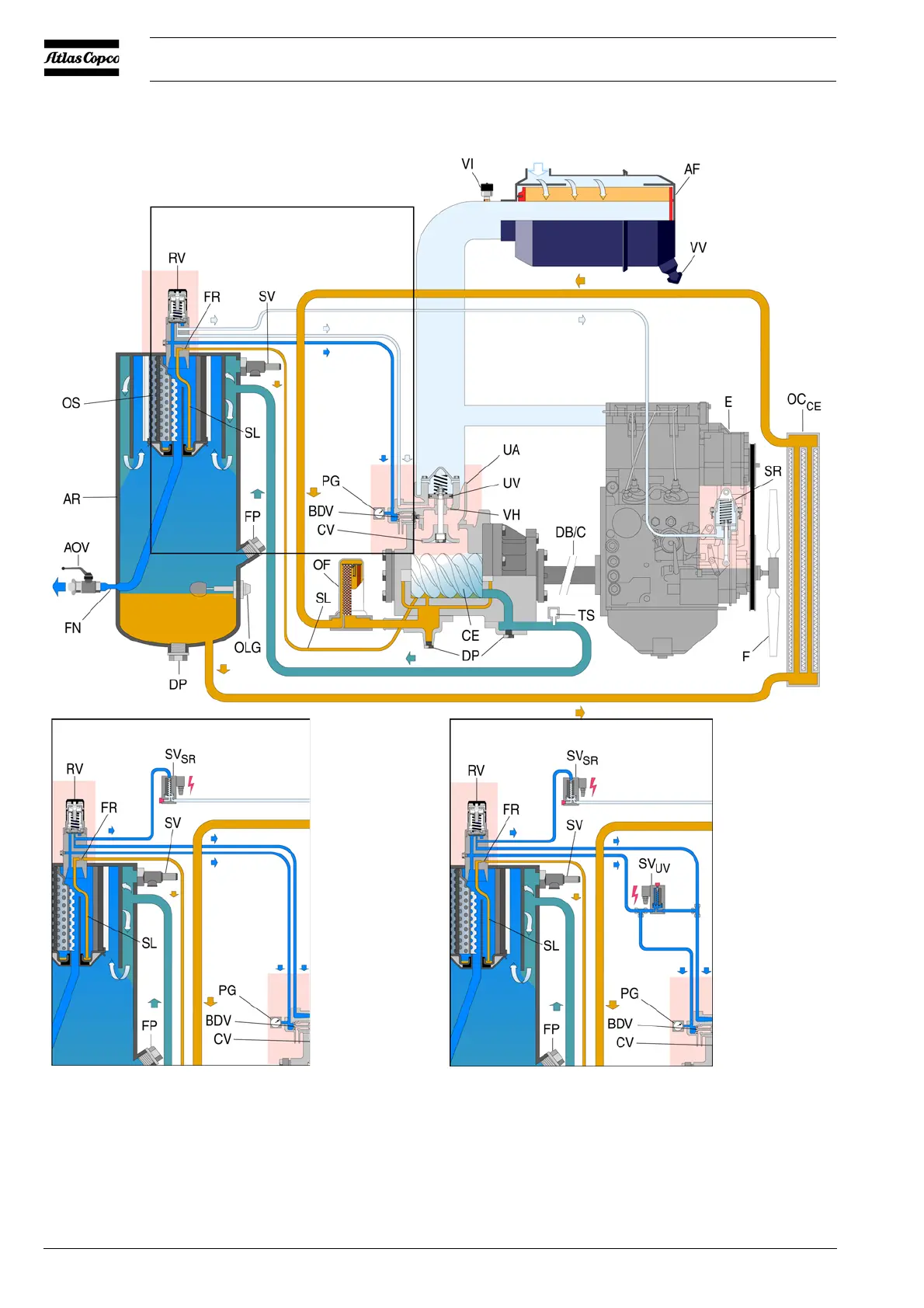

COMPRESSOR REGULATING SYSTEM
Fig. 2.3
AF Air Filter
AR Air Receiver
AOV Air Outlet Valves
BDV Blow Down Valve
C Coupling
(XAS 77 DD - XAS 150 DD7,
XAS 97 DD - XAS 185 DD7)
CE Compressor Element
CV Check Valve
DB Drive Belt
(XAS 67 DD - XAS 130 DD7,
XATS 67 DD - XATS 125 DD7)
DP Drain Plug
E Engine
FFan
FN Flow nozzle
FP Filler Plug
FR Flow Restrictor
OC
CE
Oil Cooler
(compressor element)
OF Oil Filter
OLG Oil Level Gauge
OS Oil Separator
PG Pressure Gauge
RV Regulating Valve
SL Scavenge Line
SR Speed Regulator
SV Safety Valve
SV
SR
Solenoid Valve
(Speed regulator)
TS Temperature Switch
UA Unloader Assembly
UV Unloader Valve
VH Vent Hole
VI Vacuum Indicator
VV Vacuator Valve
With generator
Without generator
With generator
67 DDG 6.5 kVA
67 DDG 12 kVA
97 DDG 6.5 kVA
97 DDG 12 kVA
