Atlas Copco XRXS 567 Cd User Manual

- 18 -

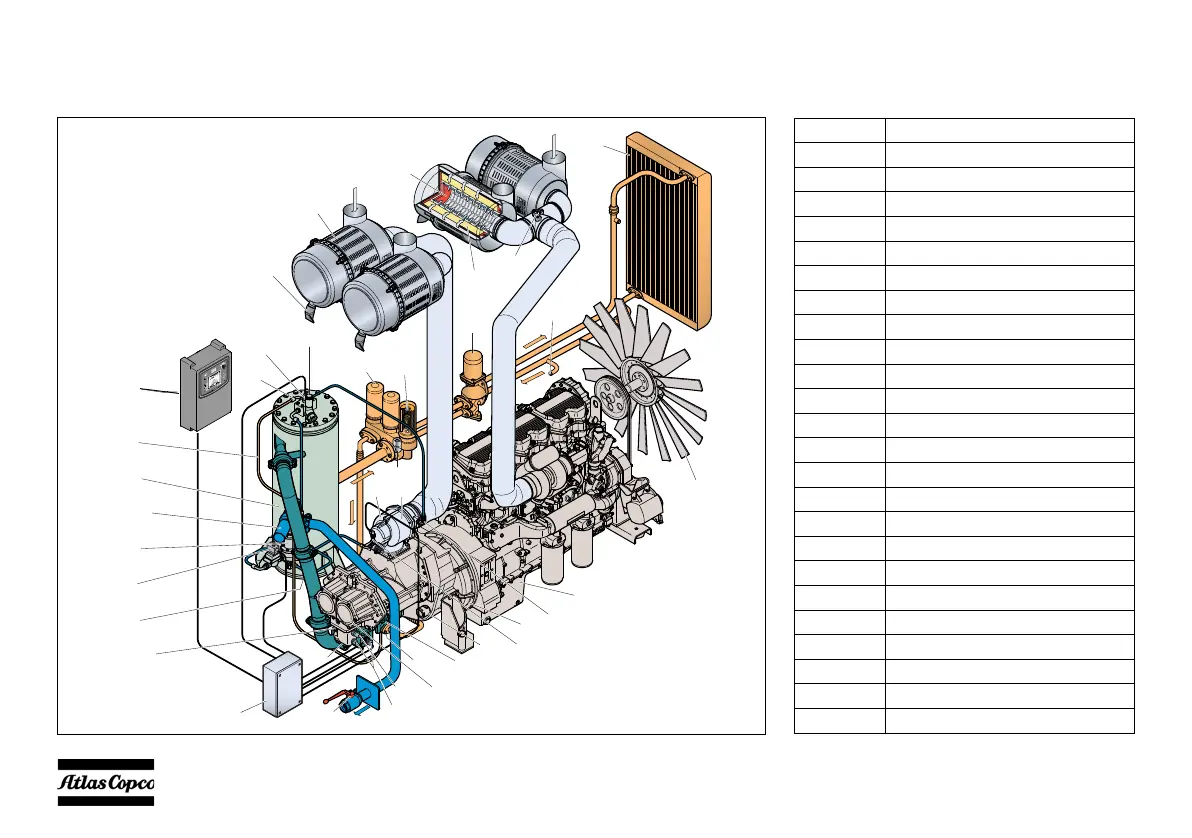

REGULATING SYSTEM
OVERVIEW
(CU)
(AFce)
(SC)
(AFe)
(AFS)
(OC)
(F)
(VV)
(SV)
(SL)
(WPS)
(AR)
(WPG)
(MPV)
(RV)
(LV)
(DP)
(AOV)
(CEhp)
(CElp)
(OSV)
(CBE)
(BO V)
(DP)
(CV)
(PS)
(TS)
(C)
(SV)
(E)
(TV)
(UA)
(RPS)
(DP)
(OT)
(TBV)
(BVof)
(OFce)
(FR)
Reference Name
AFce Air Filter (compr. element)
AFe Air Filter (engine)
AFS Air Filter Switch
AOV Air Outlet Valves
AR Air Receiver
BOV Blow Off Valve
BVof Bypass Valve oil filter
C Coupling
CBE Cubicle for Electrical devices
CElp Compressor Element (low pressure)
CEhp Compressor Element (high pressure)
CU Control Unit
CV Check Valve
DP Drain Plug
EEngine
FFan
FR Flow Restrictor
LV Loading Valve
MPV Minimum Pressure Valve
OC Oil Cooler
OFce Oil Filter (compressor element)
OSV Oil Stop Valve
OT Oiltronix
PS Pressure Sensor
