Control panel

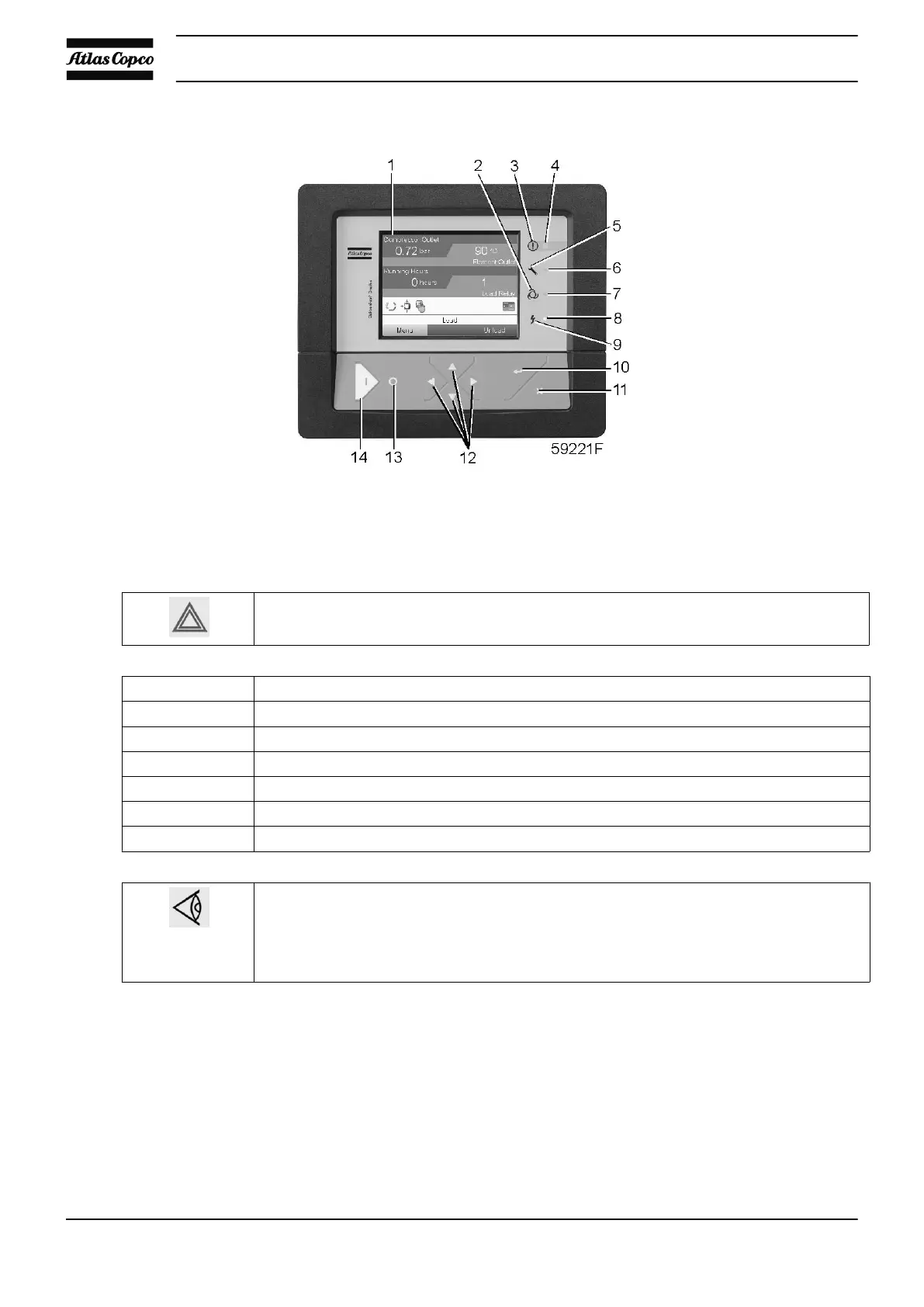

Control panel of Elektronikon GraphicPlus controller
Procedure
The operator must apply all relevant safety precautions.
Step Action
1 Press the emergency stop button (if not yet done).
2 Switch off the voltage and then depressurize the compressor.
3 Remedy the fault.
4 Unlock the emergency stop button by pulling it back.
5 Reset the protection warning in the Elektronikon controller.
6 Restart the compressor. Check the section Routine starting.
If the automatic restart function after voltage failure is activated and the duration of
repair is shorter than the programmed power recovery time, reset the display after
remedying the fault. Press the key “Reset”; the message “All protection functions are
OK” will appear, whereupon the compressor can be restarted. Press the keys “Menu”
and “Main Screen” to return to the main display.
Minimum stop time
The compressor will not be allowed to restart within a programmed time (20 s) after a stop for any reason
at all. A start command given during the minimum stop time will be memorized; automatic operation LED
(8) lights up. The compressor will start when the minimum stop time has run out.
Manual restart
In automatic operation, the regulator limits the number of motor starts.
Instruction book
270 2920 1815 04
