The 8-bit Timer/Counter0 features both a high-resolution and a high-accuracy usage with the lower prescaling opportuni-
ties. Similarly, the high-prescaling opportunities make the Timer/Counter0 useful for lower-speed functions or exact-timing
functions with infrequent actions.

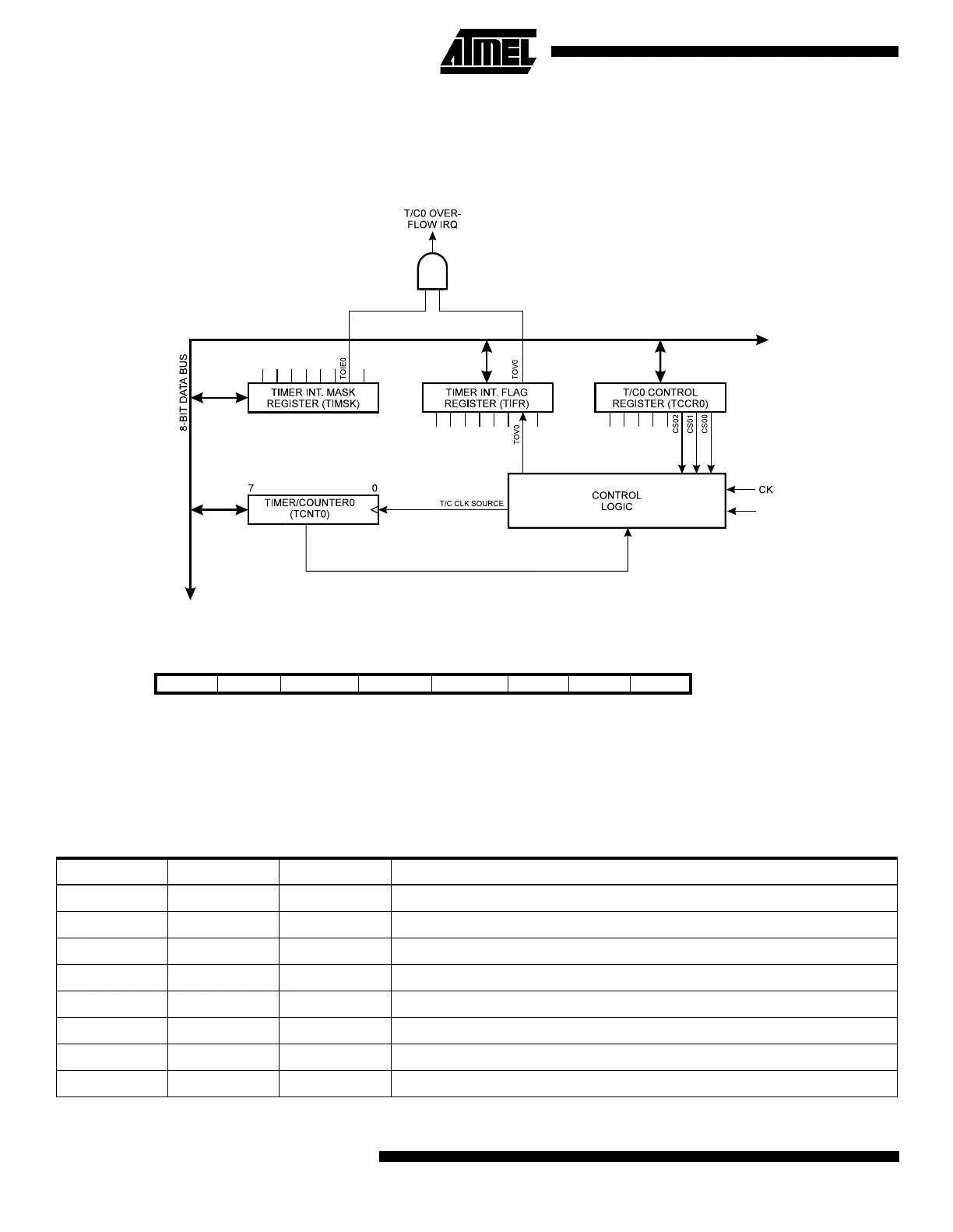

Figure 24. Timer/Counter0 Block Diagram
Timer/Counter0 Control Register – TCCR0
•
Bits 7..3 - Res: Reserved bits:
These bits are reserved bits in the ATtiny10/11/12 and always read as zero.
•
Bits 2,1,0 - CS02, CS01, CS00: Clock Select0, bit 2,1 and 0:
The Clock Select0 bits 2,1 and 0 define the prescaling source of Timer0.
Bit 76 5 4 3 210
$33 - - - - - CS02 CS01 CS00 TCCR0
Read/Write R R R R R R/W R/W R/W
Initial value 0 0 0 0 0 0 0 0
Table 15. Clock 0 Prescale Select
CS02 CS01 CS00 Description
0 0 0 Stop, the Timer/Counter0 is stopped.
001CK
010CK/8
011CK/64
100CK/256
101CK/1024
1 1 0 External Pin T0, falling edge
1 1 1 External Pin T0, rising edge
