8
ATtiny15L
1187H–AVR–09/07
Operands are contained in register r (Rr) and d (Rd). The result is stored in register d
(Rd).

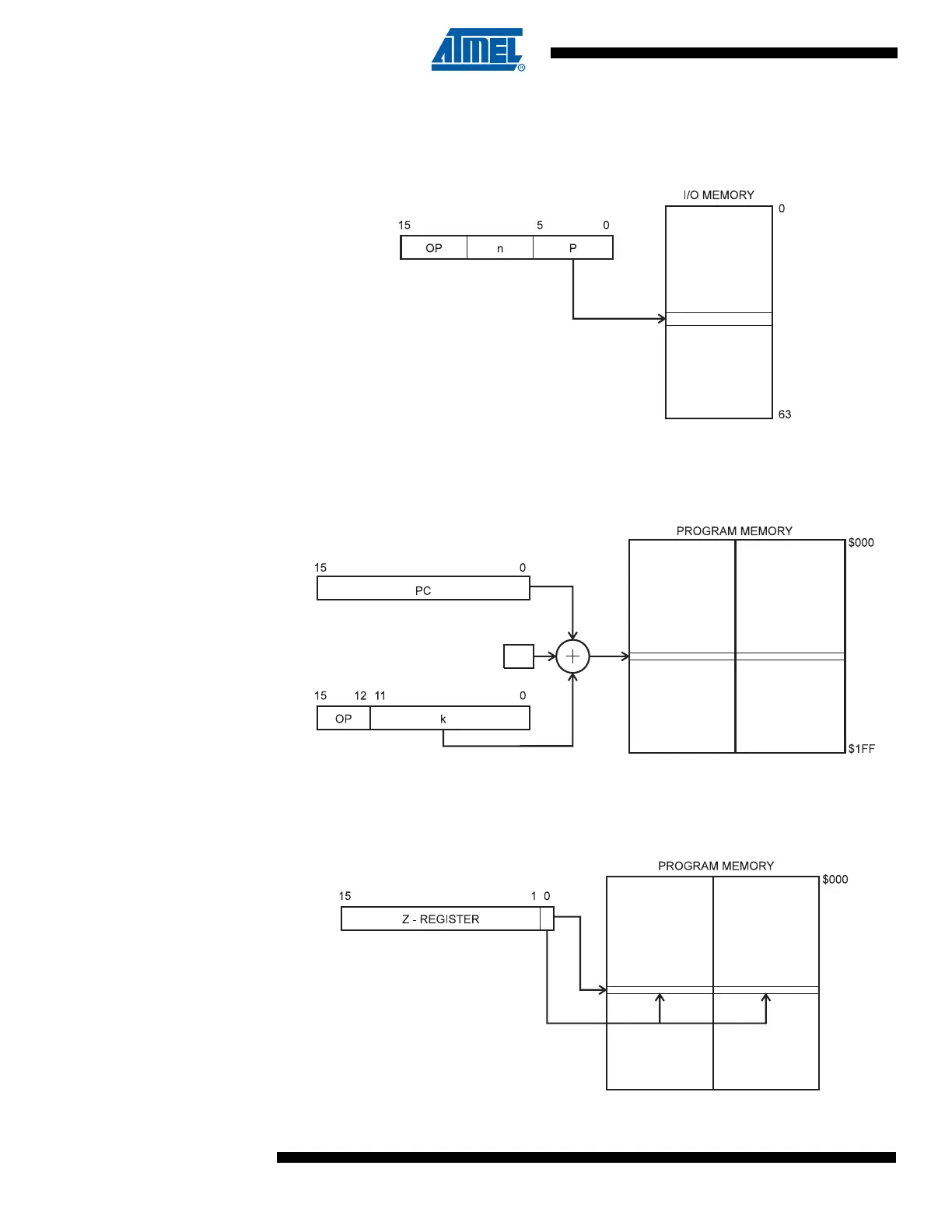

I/O Direct Figure 7. I/O Direct Addressing
Operand address is contained in 6 bits of the instruction word. “n” is the destination or
source register address.
Relative Program Addressing,
RJMP and RCALL
Figure 8. Relative Program Memory Addressing
Program execution continues at address PC + k + 1. The relative address k is -2048 to
2047.
Constant Addressing using
the LPM Instruction
Figure 9. Code Memory Constant Addressing
+1
