Atmel SAME70-XPLD User Manual

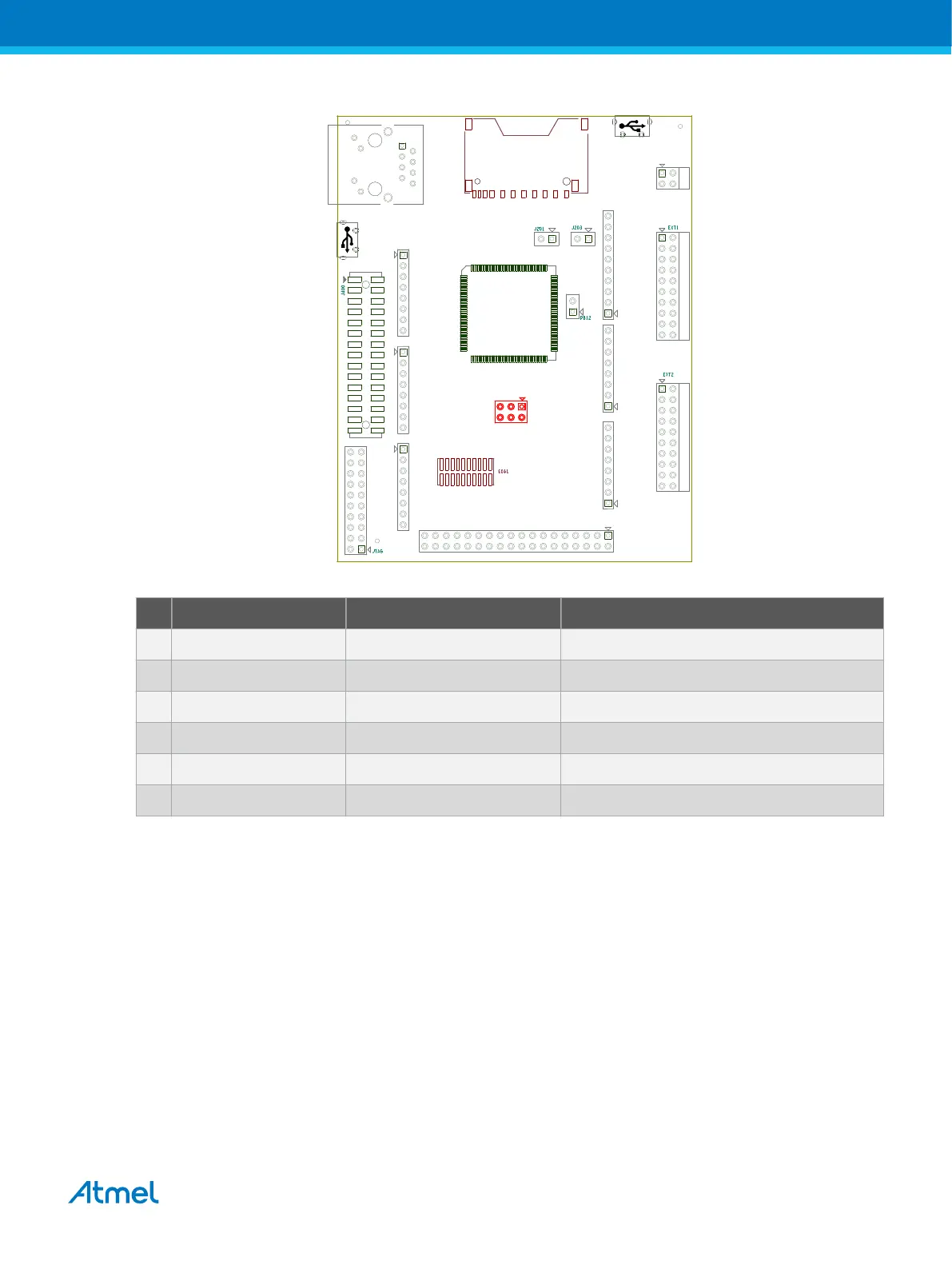

Figure 4-10 J506 Header
J406 - SAME70 De bu g (SWD)
J600 - SDCARD Socket
(Bottom Side )
J900
DEBUG USB
Co resight 20 - SWD + ETM
(Bottom Side )
VDDCORE VCC_MCU_3V3
J200 - ERASE
J700 - Ethern et RJ45
J302
Ta rget USB
CAMERA
INTERFACE
J501 - Powe r
OPTION
J502 - An alog Low
OPTION
J504 - An alog High
OPTION
J506 - SPI
OPTION
OPTION
J500 - Digital Hig h
OPTION
J503 - Digital Low
OPTION
J505 - Co mmunicat ion
OPTION
J507 - Digital Extra
OPTION
J402 - Exte nsion Heade r 2 J401 - Exte nsion Heade r 1 J101 - Powe r He ader
Table 4-9 J506 Header IOs
Pin PCB Marking PIO Primary Function
1 MISO PD20 SPI0_MISO
2 5V0 -- Power supply
3 SPCK PD22 SPI0_SPCK
4 MOSI PD21 SPI0_MOSI
5 RST NRST System reset
6 GND -- System ground
4.3.2.8. J507 Header
J507 is a 2x18-pin header with 2.54mm pitch. It is not populated by default and can be used to connect to
Arduino Shields. It includes PWM, Timer Counters, Audio Transmit interface, CAN interface, USART1 and
USART2 interfaces and four UART interfaces.
