Atmel SAME70-XPLD User Manual

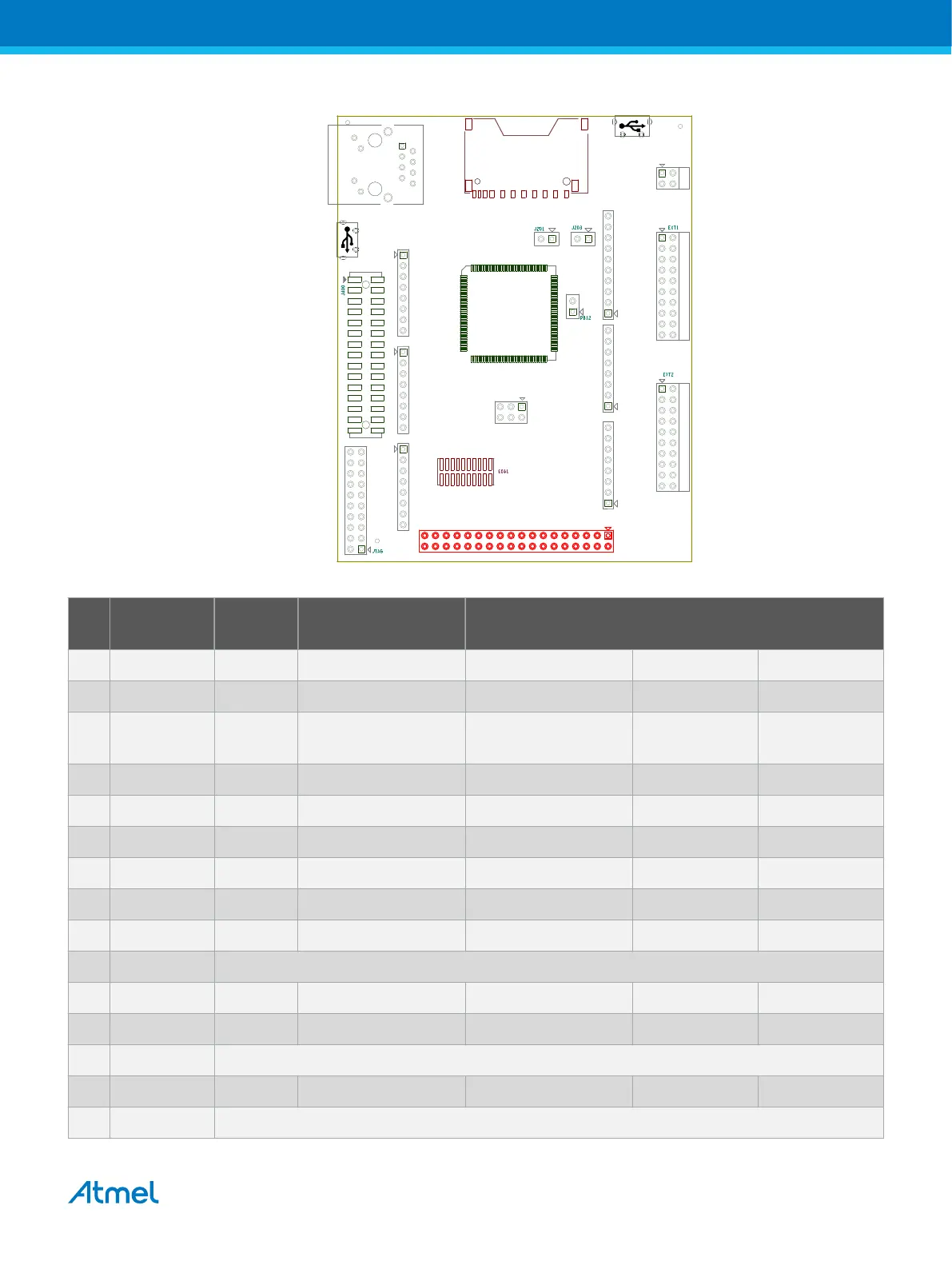

Figure 4-11 J507 Header
J406 - SAME70 De bu g (SWD)
J600 - SDCARD Socket
(Bottom Side )
J900
DEBUG USB
Co resight 20 - SWD + ETM
(Bottom Side )
VDDCORE VCC_MCU_3V3
J200 - ERASE
J700 - Ethern et RJ45
J302
Ta rget USB
CAMERA
INTERFACE
J501 - Powe r
OPTION
J502 - An alog Low
OPTION
J504 - An alog High
OPTION
J506 - SPI
OPTION
OPTION
J500 - Digital Hig h
OPTION
J503 - Digital Low
OPTION
J505 - Co mmunicat ion
OPTION
J507 - Digital Extra
OPTION
J402 - Exte nsion Heade r 2 J401 - Exte nsion Heade r 1 J101 - Powe r He ader
Table 4-10 J507 Header IOs
Pin PCB
Marking
PIO Primary Function Alternate Function
1 5V0 -- Power supply -- -- --
2 5V0 -- Power supply -- -- --
3 D22 PA18 PCK2 PWMC1_PWMEXTR
G1
-- --
4 D23 PB1 TK PWMC0_PWMH1 AFE1_AD0 GTSUCOMP
5 D24 PB0 TF PWMC0_PWMH0 AFE0_AD10 RXD0
6 D25 PD17 SCK2 -- -- --
7 D26 PD19 CTS2 UTXD4 -- --
8 D27 PD18 RTS2 URXD4 -- --
9 D28 PA5 PWMC1_PWML3 URXD1 WKUP4 --
10 D29 Not Connected
11 D30 PA29 TCLK2 -- -- --
12 D31 PA1 WKUP1 PWMC0_PWML0 TIOB0 --
13 D32 Not Connected
14 D33 PA26 PWMC1_PWMFI1 TIOA2 -- --
15 D34 Not Connected
Atmel SAME70-XPLD [USER GUIDE]
Atmel-44050A-SAME70-XPLD_User Guide-12/2015
24
