Atmel SAME70-XPLD User Manual

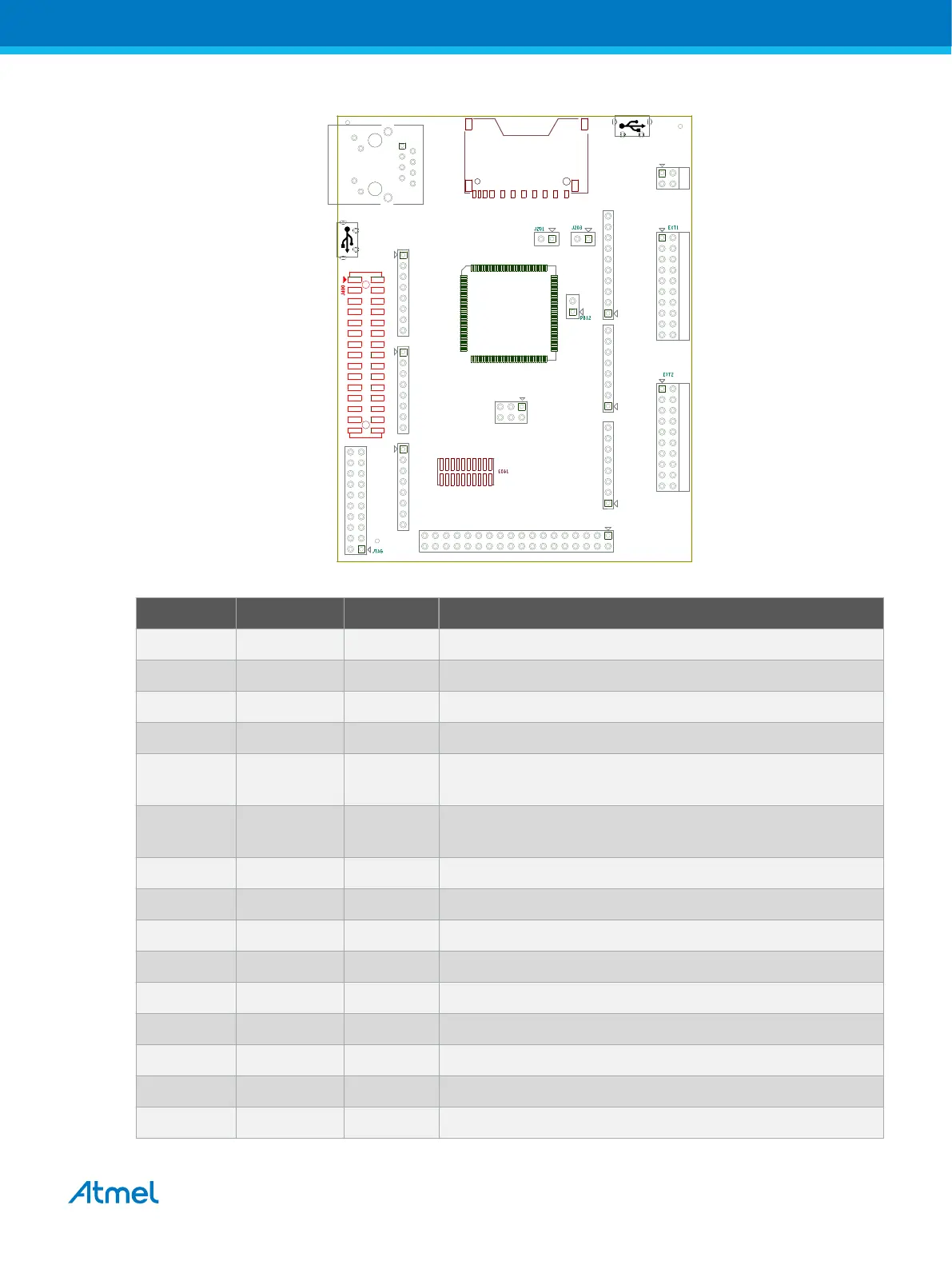

Figure 4-12 Camera Connector
J406 - SAME70 De bu g (SWD)
J600 - SDCARD Socket
(Bottom Side )
J900
DEBUG USB
Co resight 20 - SWD + ETM
(Bottom Side )
VDDCORE VCC_MCU_3V3
J200 - ERASE
J700 - Ethern et RJ45
J302
Ta rget USB
CAMERA
INTERFACE
J501 - Powe r
OPTION
J502 - An alog Low
OPTION
J504 - An alog High
OPTION
J506 - SPI
OPTION
OPTION
J500 - Digital Hig h
OPTION
J503 - Digital Low
OPTION
J505 - Co mmunicat ion
OPTION
J507 - Digital Extra
OPTION
J402 - Exte nsion Heade r 2 J401 - Exte nsion Heade r 1 J101 - Powe r He ader
Table 4-11 J400 - Camera Connector
Pin Number SAM E70 Pin Function Shared Functionality
1 - 3 -- VCC_3V3 --
2 - 4 -- GND --
5 PA13 ISI_RST J507 Header (Arduino Shield)
6 PC19 ISI_PWD EXT2 Header, J503 Header (Arduino Shield)
7 PA4 TWCK0 EXT1 Header, EXT2 Header, AT24MAC402, J500 Header
(Arduino Shield), Embedded Debugger
8 PA3 TWD0 EXT1 Header, EXT2 Header, J503 Header, J500 Header
(Arduino Shield), Embedded Debugger
9 -- GND --
10 PA6 PCK0 EXT2 Header, J503 Header (Arduino Shield)
11 -- GND --
12 PD25 ISI_VSYNC EXT1 Header, J500 Header (Arduino Shield)
13 -- GND --
14 PD24 ISI_HSYNC J504 Header (Arduino Shield)
15 -- GND --
16 PA24 ISI_PCK EXT2 Header, J507 Header (Arduino Shield)
17 -- GND --
Atmel SAME70-XPLD [USER GUIDE]
Atmel-44050A-SAME70-XPLD_User Guide-12/2015
26
