2.1. INSTALLATION PROCEDURES
2.1.1. ATN NIGHT VISION RIFLESCOPES
MOUNTING SYSTEM
The ATN Night Vision Riflescopes Mounting System allows to
change the position of the riflescope flexibly on the weapon in
relation to a shooter in combination with the fixed positions al-
ready available on the weaver rail. For this purpose in the base of
the mounting bracket there is a rail with a fixing projection. There
are three grooves in the mounting bracket for mounting this rail.
Besides it is possible to change the position of the riflescope ad-
ditionally by 1/3 of inch. For doing this one needs to about-face
the rail.

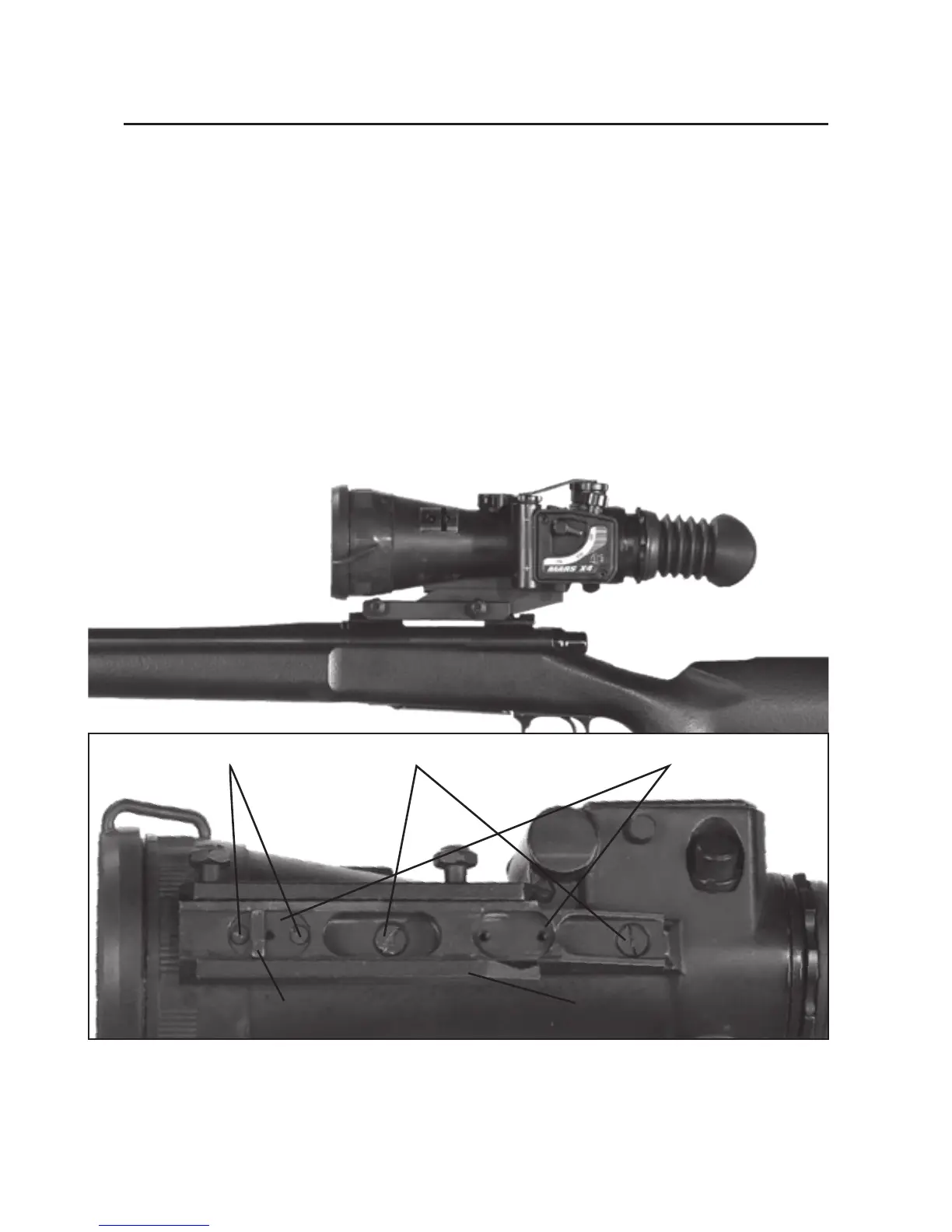

FIGURE 2-2. SCOPE MOUNTING SYSTEM
To change the position of the riflescope on the weaver rail addi-
tionally follow the steps mentioned below:
GROOVES
RAIL WITH A FIXING PROJECTION
SCREWS
MOUNTING SCREWS
