loosen the nut located on the body of the IR. Rotate the IR to the
desired position. Tighten the nut with the wrench to secure the
new position.
2.2.12. RETICLE
Your scope has an electronic reticle with two color and 5 degrees
of brightness of illumination for each color. The knob of brightness
adjustment reticle and color select is located on the top of the
boby of the scope. On the knob there are dots marking with color
of illumination of reticle.
Mars 2 equipped with chevron rangefinder reticle or crosshair
reticle. Mars 4 and Mars 6 have the Mil-dot reticle.
Chevron rangefinder reticle
Chevron rangefinder reticle was designed to assist you in deter-
mining the range of your target.
These distances are based on a 6’ target.
A 6’ target fits between the short baselines and the numbered
main horizontal line. If the 6’ target fits between the 2nd short
baseline and the main line the target is 200 yards away. If the
same target fits between the 4th short baseline and the main line
the target is 400 yards away. The target would be either 100, 300
and 500 yards away.

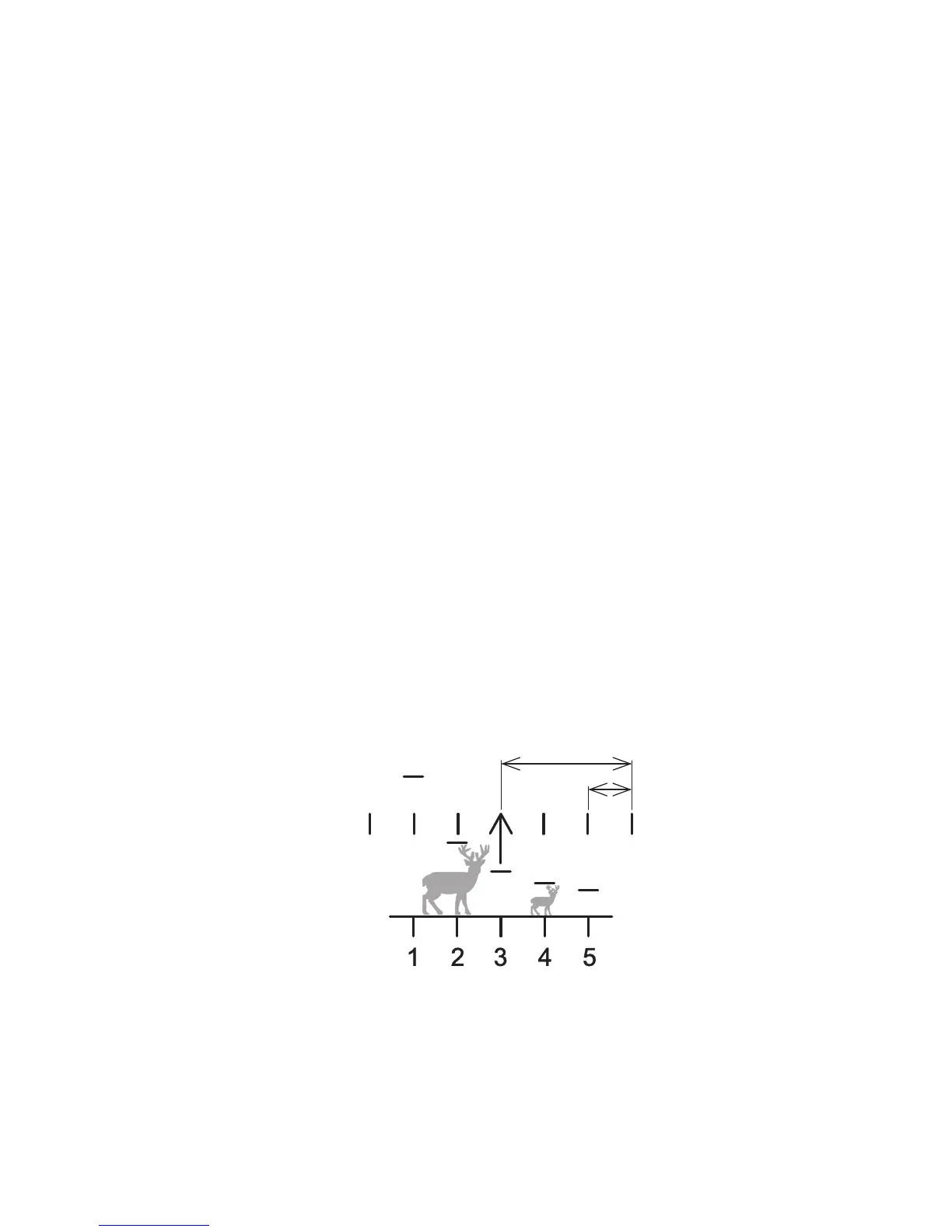

FIGURE 2-12. CHEVRON RANGEFINDER RETICLE
The vertical lines in chevron reticle are proportioned to help in
rangefinding and in making allowances for wind or movement.
If a 6’ target fits between
these two lines then
the target is 400 yards
away.
If a 6’ target fits between
these two lines then
the target is 200 yards
away.
20 MOA
60 MOA
