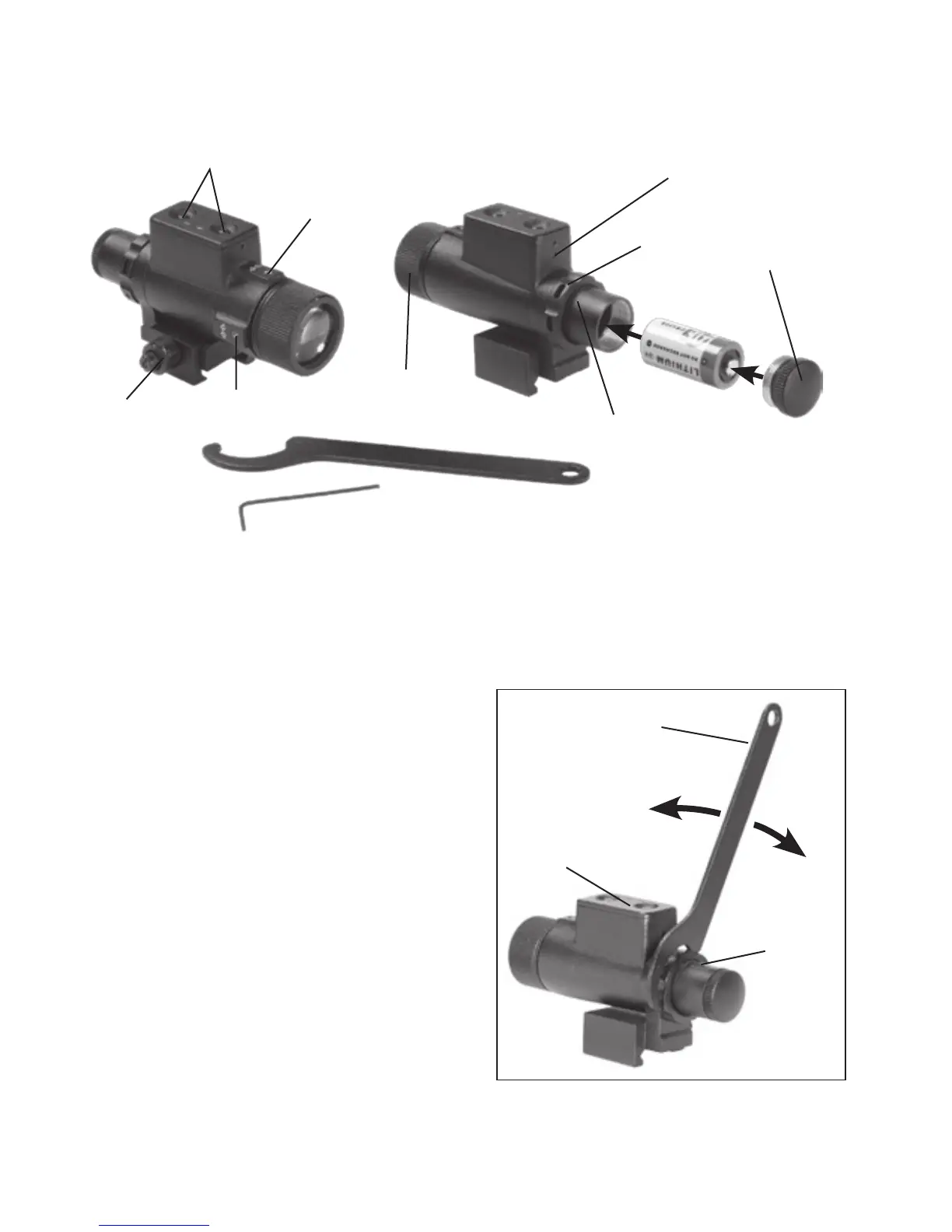

FIGURE 2-10. IR450 ILLUMINATOR
The IR beam is focusable to change the field of coverage. To
change the beam width slightly turn the IR lens.
You may need adjust the focusing of the IR beam to change the
field of coverage. Do it by slightly
rotating the IR lens. The windage
and elevation screws help adjust
the direction of the IR beam from
the IR450 in order to focus on the
scene observed in the viewfinder
of your NVD. Use the included Al-
len wrench to rotate the adjusting
screws until the IR beam is cen-
tered. Please remember the ad-
justments should be performed
under night light conditions only.
You can change the position of
the IR control panel to meet your
your needs. The wrench that
is included in the set, is used to
BATTERY HOUSING
FIXING NUT
IR ELEVATION
ADJUSTMENT
IR WINDAGE
ADJUSTMENT
IR FOCUSING
NUT
POWER LED INDICATOR
WRENCH
IR BRIGHTNESS ADJUSTMENT
BAT TERY
HOUSING CAP
NUT
CONTROL PANEL
WRENCH
TO TIGHTEN
NUT
TO LOOSEN NUT
FIGURE 2-11. CHANGING OF
CONTROL PANEL POSITION
To Next Page
