1. Unscrew the two screws, which attach the rail to the mounting

bracket.

2. Take the rail out of the groove.

3. About-face the rail in case of necessity.

4. Place the rail into another groove.

5. Fix the rail with the two screws.

NOTE

If the rail is not taken out easily, screw up tight one of screws

into the threaded aperture in the middle of a ﬁxing projection

of the rail. Continue rotation of the screw. Thus the screw will

push out a rail from a groove.

2.1.2. ATN DOUBLE LEVER QUICK RELEASE

MOUNT (OPTIONAL)

ATN Double Lever Quick Release Mount (QRM) is used for fast

installation/removing the ATN Mars series Night Vision Rifle-

scopes on MIL-STD-1913/Picatinny rail.

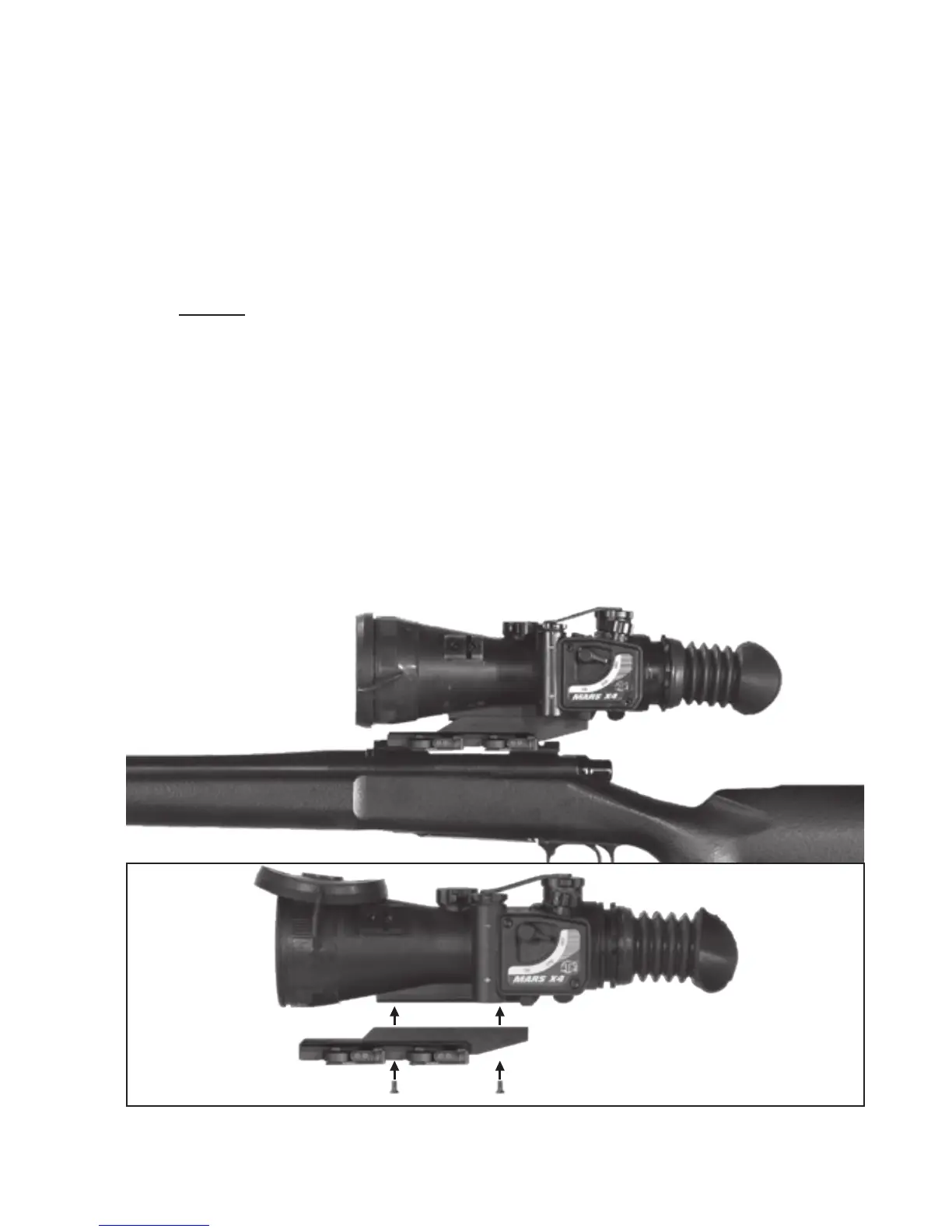

FIGURE 2-3. DOUBLE LEVER QUICK RELEASE MOUNT
