2-4
2.2. ASSEMBLY
2.2.1. REMOVE/INSTALLATION OF QUICK RELEASE
MOUNT (QRM)
ATN Double Lever Quick Release Mount (QRM) is used for fast
installation/removing the ThOR on MIL-STD-1913/Picatinny rail.

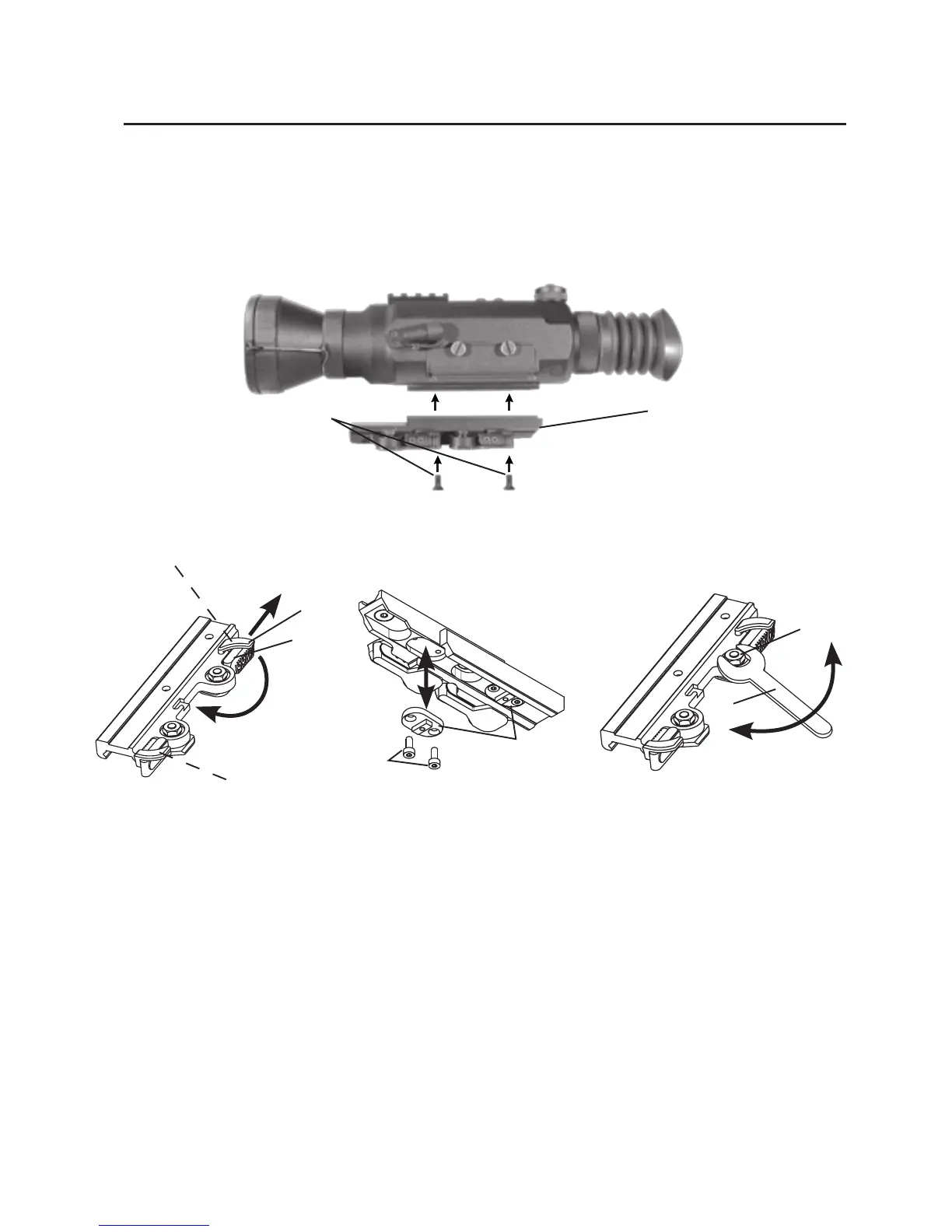

FIGURE 2-2. DOUBLE LEVER QUICK RELEASE MOUNT
FIGURE 2-3. DOUBLE LEVER QUICK RELEASE MOUNT ADJUSTMENT
1. To remove the QRM from the scope unscrew the two mounting
screws, which attach the QRM to the body of the scope.
2. Mount the QRM onto the scope with two mounting screws.
3. To open the QRM, slide the cam latch (1) forward (arrow A) and
turn the cam (2) backward (arrow B).
4.YourQRMcomeswith2shoes(3).Oneforstandardweaverrails
(designatedbytheletterWstampedontheshoe)oneforMIL-
STD-1913/Picatinny rail (designated by the letter P stamped on
the shoe). Depending on which rail you are attempting to mount
you must remove the other.
MOUNTING
SCREWS
QRM
CLOSED POSITION
OPENED POSITION
1
2
A
B
3
4
6
5
