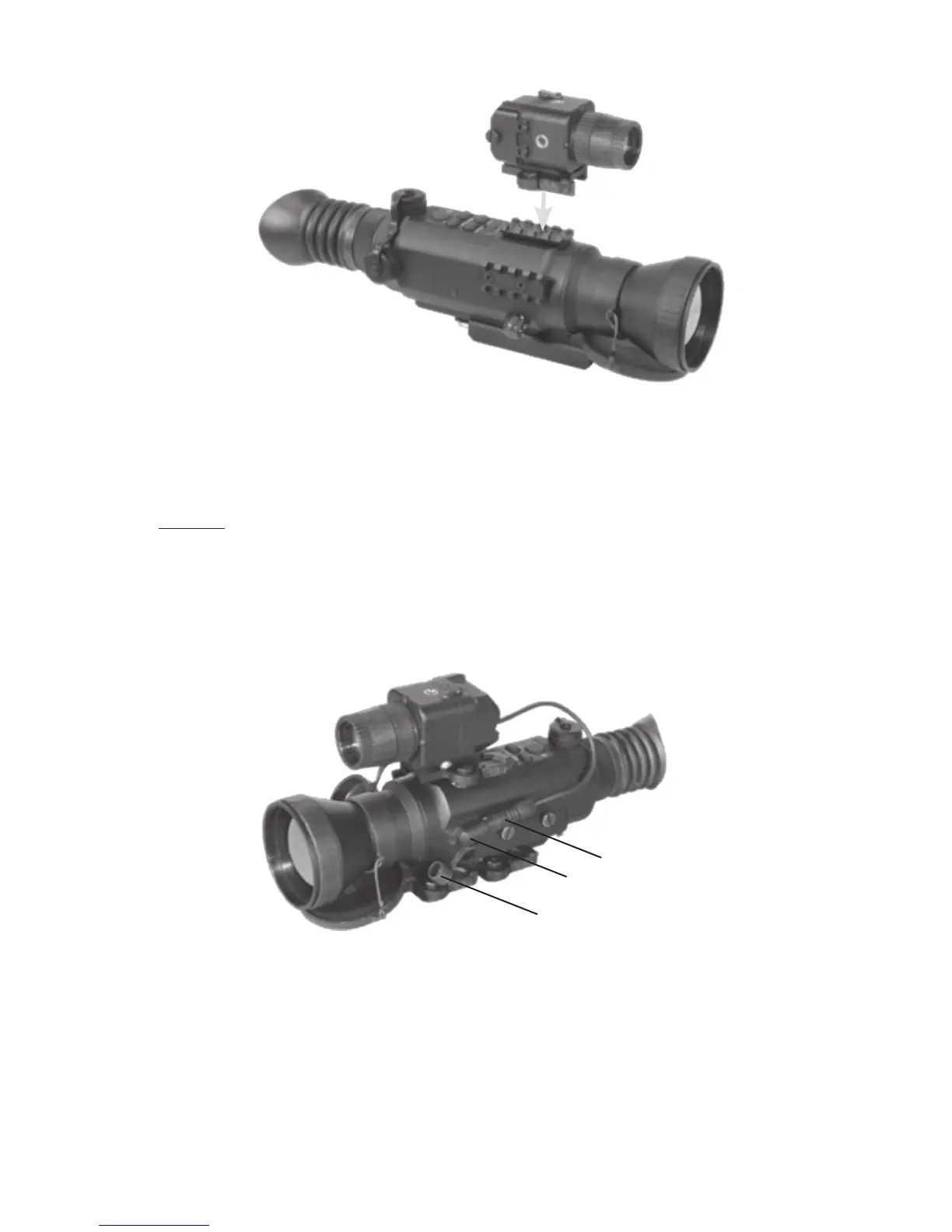

FIGURE 2-7. INSTALLATION ONTO THE ATN THOR

1.PlacetheDVContoThORrail(Figure2-7).Besuretoengage

the recoil lug into the groove on the mounting surface.

NOTE

Operations with QRM of DVC are similar to the operations with

QRM described in Unit 2.2.1.

Remove the protective cap from connector socket of ThOR. Insert

DVC connector to the socket.

FIGURE 2-8. CAMERA CABLE CONNECTION

CONNECTORSOCKET

CABLE CONNECTOR

PROTECTIVE CAP
