ATN Zebra 12 User Manual

OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16
75

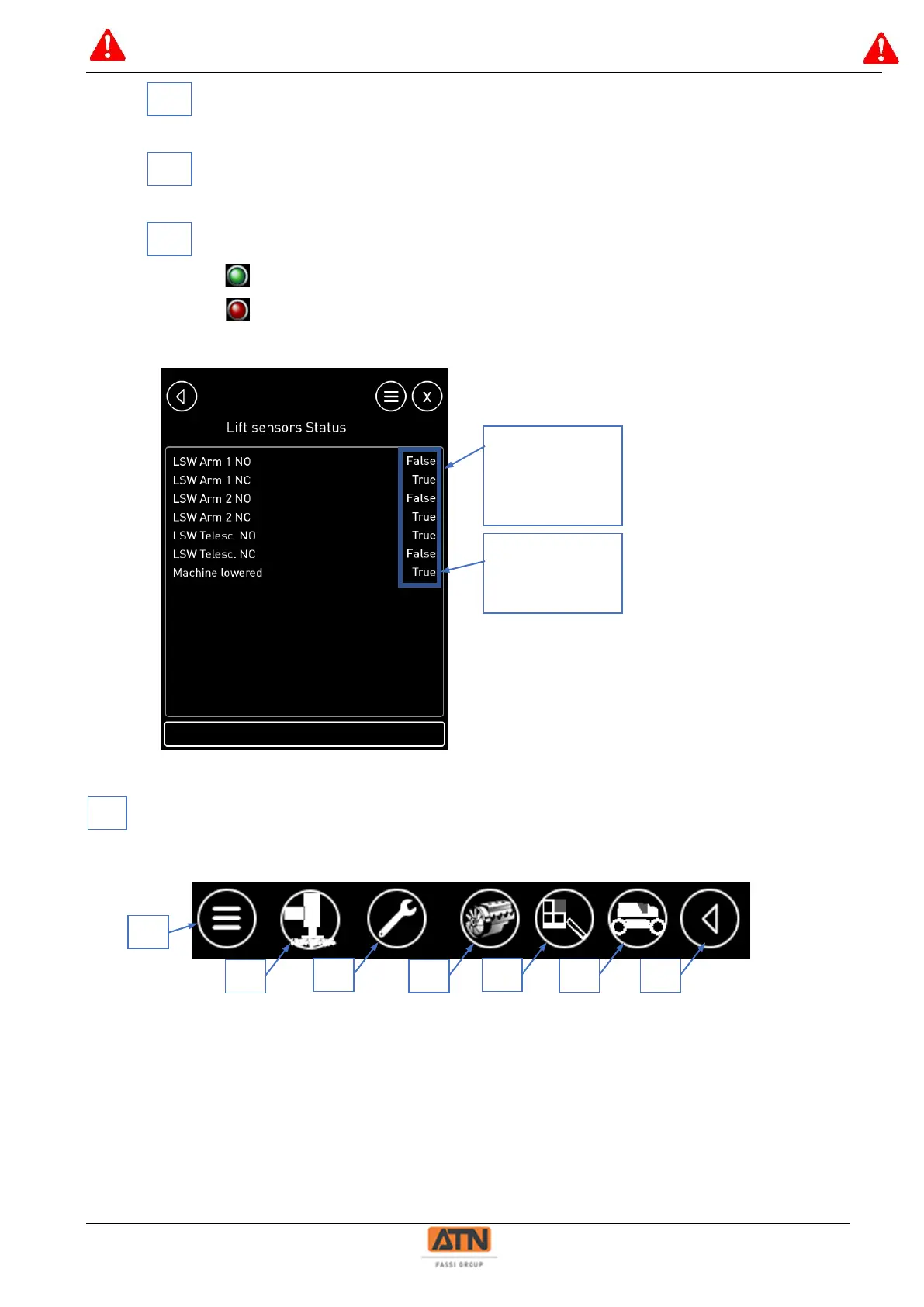

Condition indicator for the structure sensor on arm 1
Condition indicator for the structure sensor on arm 2
Condition indicator for the structure sensor of the telescope
Arm/Telescope in
Arm/Telescope out
Clicking on one of the indicators will give access to the condition of all structure sensors:
Menu area:
Click on the icon to access the corresponding submenu
8A : General Menu (page 73)
8B : Revision / Diagnostic Menu
8C : Engine /Drive Menu
8D : Upper Station Control Menu
8E : Lower Station Control Menu
8F : Return to previous page
8G : Outrigger Menu (Zebra 16 Stabs only)
7B
Contact condition
NO/NC of
arm1/arm2/
telescope
Condition
machine
lowered or not
8
7C
7D
8B
8D
8C
8E
8F
8A
8G
