Atomos Ninja V User Manual

8 NINJA V - Quick Start Guide
DC
1
Touchscreen / User Interface
Main controls

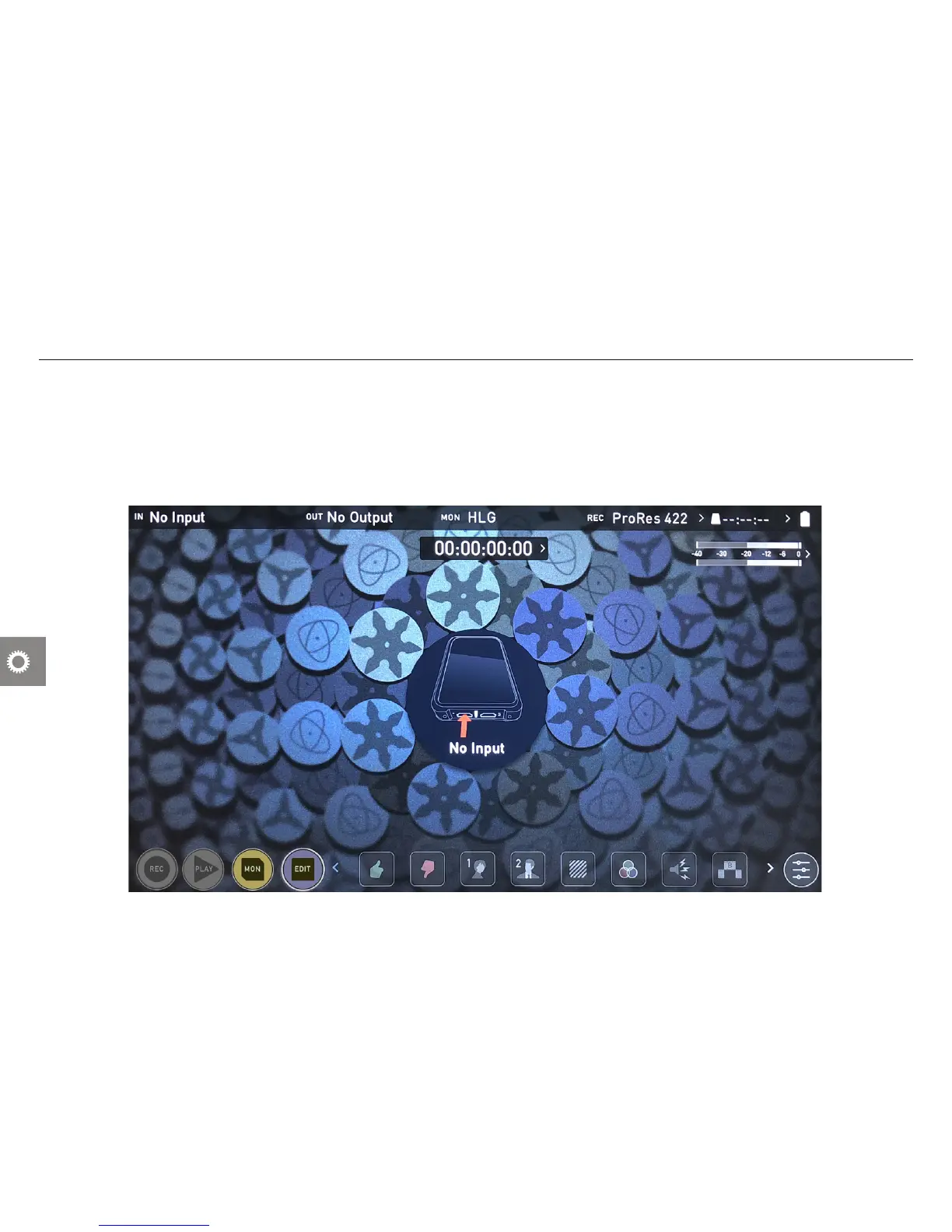

The Ninja V is controlled by a simple user-friendly touchscreen
interface. Pictured below is the home screen and main controls seen
when the Ninja V is rst powered up. Touching the icons will open
menus for the relevant functions. Touch the settings icon located on
bottom right to access more menus, or touch individual icons for
specic settings such as timecode, audio, remaining disk space and
more. For the most up-to-date information visit: atomos.com/ninjav
and click SUPPORT tab

Atomos Ninja V Specifications

General

Voltage	16.8 V
Aspect ratio	16:9
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Channels quantity	12 channels
Maximum video resolution	4096 x 2160 pixels
Power consumption (max)	19 W
Power consumption (typical)	10 W
Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Maximum HDD recording time	2.5 h

Weight and Dimensions

Depth	31 mm
Width	151 mm
Height	91.5 mm
Weight	320 g
