CAST IRON FLOOR STANDING GAS BOILER

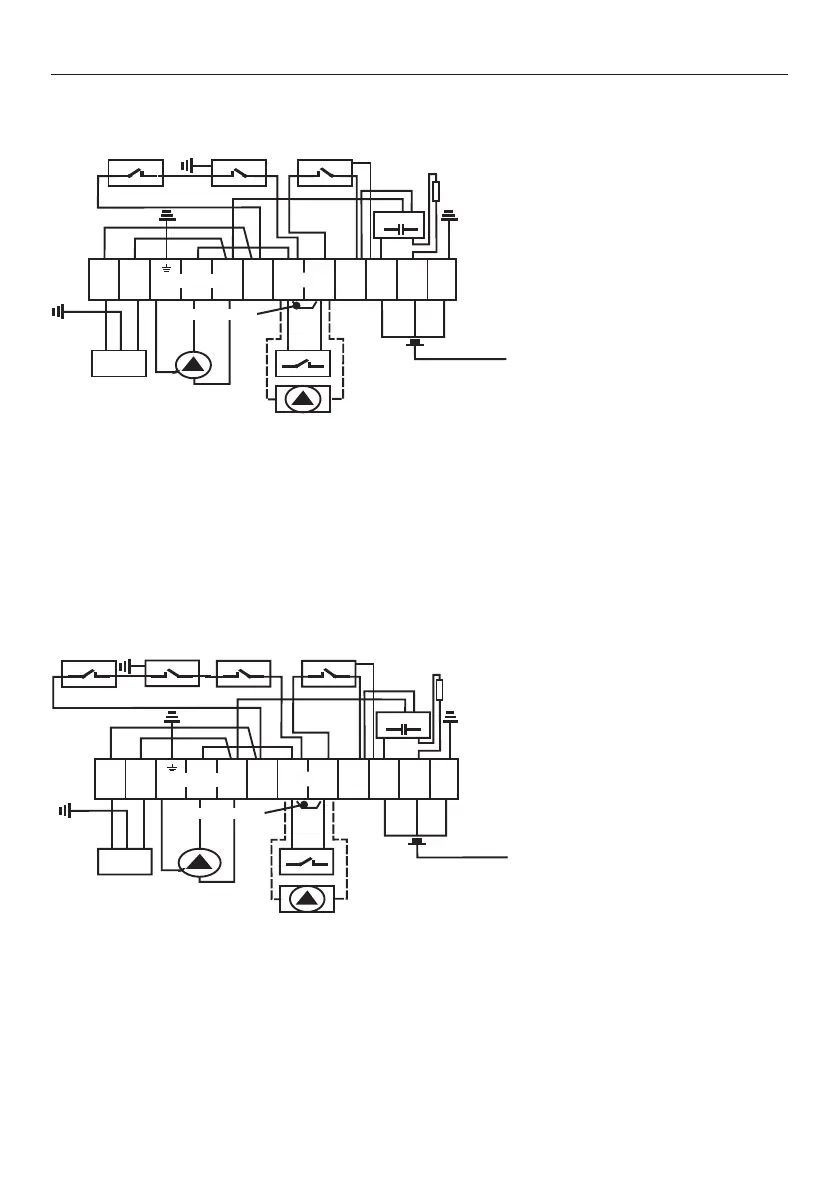

Connecting the electrical installation of the ATTACK EKO boiler
DESCRIPTION:
A – automatics V 4600C
V – main switch
TK – boiler thermostat
TP – room thermostat
OČ – circuit pump
C – capacitor
ST – flue gas thermostat with
reset
TV – three-way valve Honey-
well VC4613
O – orange conductor of the
three-way valve
S – grey conductor of the
three-way valve
7. 9
67
3(
818
8
1
818
$
73
a9+]
&
2ý
  
 




79
62
)
73
33
ý(53$'/2
3(
818
8
1
818
$
73
7. +7 9
&
2ý
   




79
62
67
)
a9+]
73
33
ý(53$'/2
ATTENTION:
Connect the TP (room ther-
mostat), eventually the TV
(three-way valve) as well into
the terminals 7 and 8.
Remove the interconnection!
Connecting the electrical installation of the ATTACK KLV boiler
ATTENTION:
Connect the TP (room ther-
mostat), eventually the TV
(three-way valve) as well into
the terminals 7 and 8.
Remove the interconnection!
DESCRIPTION:
A – automatics VK 4100C
V – main switch
TK – boiler thermostat
TP – room thermostat
OČ – circuit pump
C – capacitor
HT – emergency thermostat
with reset
ST – flue gas thermostat with
reset
TV – three-way valve Honey-
well VC4613
O – orange conductor of the
three-way valve
S – grey conductor of the
three-way valve
PUMP
PUMP
Interconnection
Interconnection
