unD6IO-BT
User Manual
Attero Tech LLC 2019 Page 7 614-00033 Rev 01_e
2.1 – Audio Signal Flow

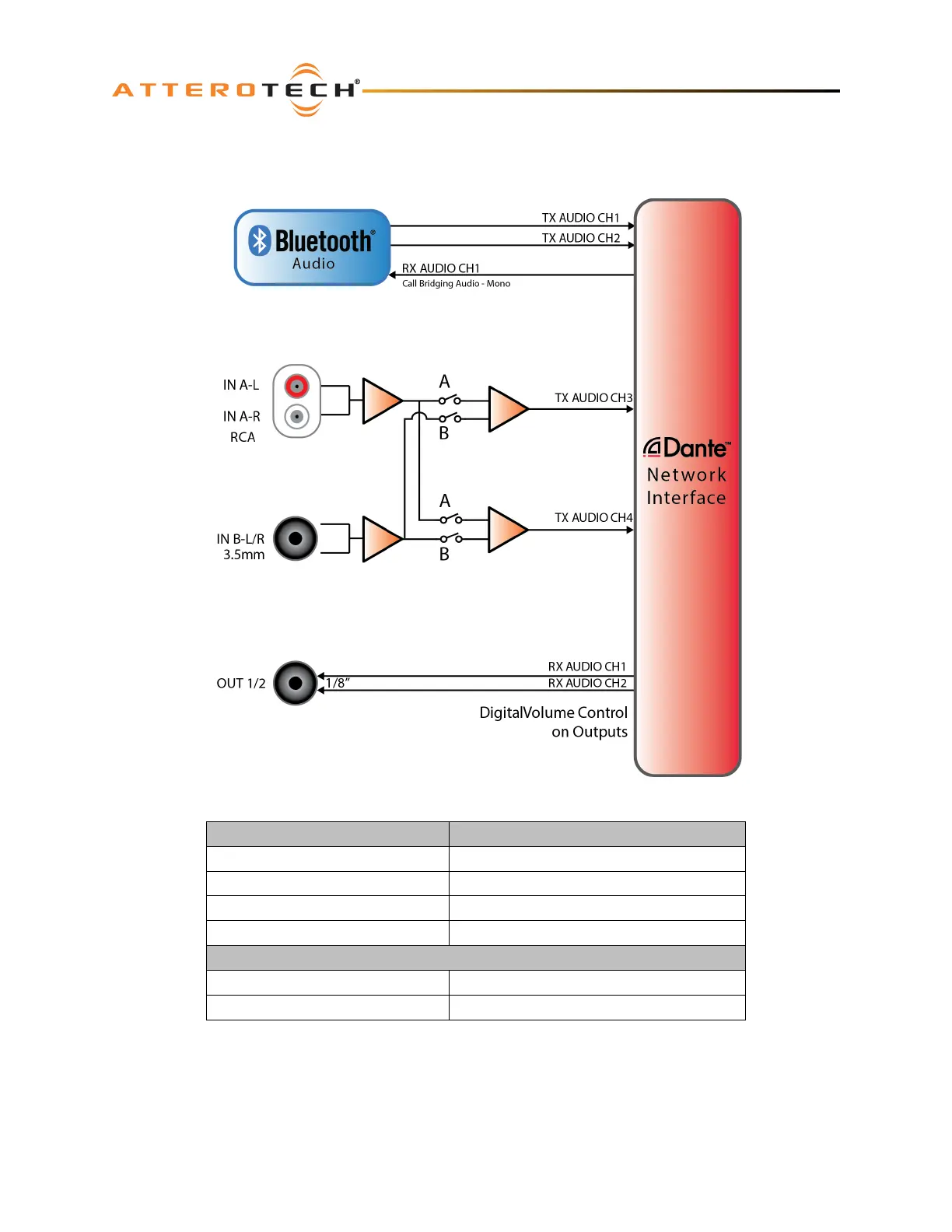

The following diagram depicts the internal signal flow for the unD6IO-BT.
Figure 3 - unD6IO-BT Signal Flow
Dante™ Channel I/O Function
TX 1 Bluetooth Transmit– L Channel
TX 2 Bluetooth Transmit– R Channel
TX3 RCA L+R A, 3.5mm L+R In B, or sum of both
TX4 RCA L+R A, 3.5mm L+R In B, or sum of both
RX1 Bluetooth® Receive/3.5mm Out L
RX2 3.5mm Out R
Figure 4 - Dante™ Channel Mapping
