SPECIFICATIONS
DESCRIPTION
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
MEMORY
SDRAM 512 MB
Flash 4.5 GB
SOFTWARE AND CONTROL OPTIONS
Software Extron Global Configurator Plus and Professional for
Windows
®
Control options GlobalViewer
®
, TouchLink
®
for Web, TouchLink for iPad
®
,
or TouchLink Pro touchpanels
ETHERNET CONTROL
Connector 1 female RJ-45 connector
Data rate 10/100/1000Base-T, half/full duplex with autodetect
Protocols DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP,
SSH, TCP/IP, UDP/IP
SERIAL CONTROL
Quantity/type 1 bidirectional RS-232, RS-422, RS-485 (port 1)
1 bidirectional RS-232 (port 2)
DIGITAL I/O CONTROL
Quantity/type 4 digital input/output (configurable)
Digital inputs
Input voltage range 0 to 24 VDC, clamped at +30 VDC
Digital outputs 250 mA sink from 24 VDC max.
IR/SERIAL CONTROL
Quantity/type 1 programmable: unidirectional RS-232 (±5 V), or TTL
level (0 to 5 V) infrared (carrier and non-carrier) up to
300 kHz
RELAY CONTROL
Quantity/type 2 normally open relays
VOLUME CONTROL
Quantity/type 1 volume control
Control voltage output range 0 to +10 VDC (±0.2 volts), adjustable
GENERAL
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
Power input requirements 12 VDC, 1 A, 12 watts, max.
Device TBD
Device and power supply TBD
Enclosure dimensions 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide)
(4.3 cm H x 10.9 cm W x 15.2 cm D)
(Depth excludes connectors.)
Regulatory compliance
Safety CE, c-UL, UL
Meets UL 60950 for safety.
EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI
Environmental Complies with the appropriate requirements of RoHS,
WEEE
Warranty 3 years parts and labor
Model Version Description Part number
IPCP Pro 250 IP Link Control Processor 60-1429-01
IPCP Pro 250 IP Link Control Processor w/LinkLicense 60-1429-01A
Anaheim • Raleigh • Silicon Valley • Dallas • New York • Washington, DC • Toronto • Mexico City • Paris • London •
Amersfoort • Moscow • Dubai • Johannesburg • New Delhi • Bangalore • Singapore • Seoul • Shanghai • Beijing • Tok yo
UNITED STATES EUROPE ASIA MIDDLE EAST
+
800.633.9876
Inside USA/Canada
+
1.714.491.1500
+
800.3987.6673
Inside Europe
+
31.33.453.4040
+
800.7339.8766
Inside Asia
+
65.6383.4400
+
971.4.299.1800

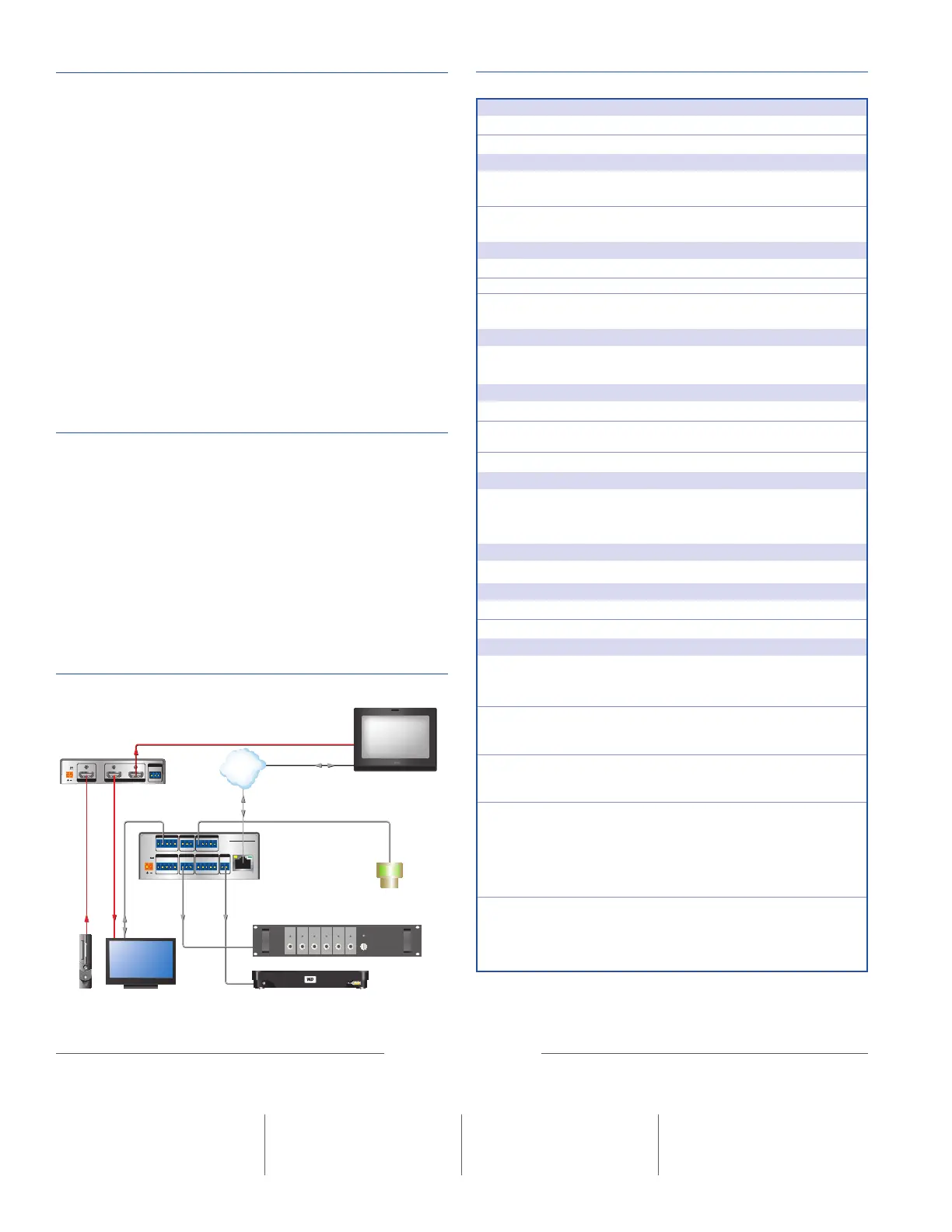

APPLICATION DIAGRAM
01-2014
68-2569-01
REV. A
Letter - English - NP
© 2014 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. Prices and specications subject to change without notice.
POWER
12V
--A MAX
G
Tx Rx RTS CTS
COM 1
G
Tx Rx
COM 2
V C G
VOL
RELAYS
1 2 C
1 2 3 4 G
DIGITAL I/O
PWR OUT = 6W
eBUS
+V +S
-S
G
LAN
IPCP PRO 250
IR/S
S G
POWER
12V
0.4A MAX
RS-232
Tx Rx G
1 2
INPUT
REMOTE
OUTPUTS
A B C D E F
1
TCP/IP
Network
Flat Panel Display
Power Sequencer
Media Player
Extron
IPCP Pro 250
IP Link Pro
Control Processor
PC
IRRS-232HDMI HDMI
HDMI
Ethernet
Ethernet/PoE
Extron
TLP Pro 1220MG
12" Wall Mount
TouchLink Pro
Touchpanel
Extron
HDMI DA2
Distribution Amplier
Motion
Sensor
The Extron IPCP Pro 250 is a versatile, high-performance control
processor designed for centralized AV control in small to medium-
size applications. The IPCP Pro 250 is faster and more secure in
almost every way. It can communicate with multiple TouchLink
®
Pro
touchpanels over a standard network and features Gigabit Ethernet
for compatibility with today’s network infrastructure. The IPCP Pro
250 also supports Extron LinkLicense
™
, which is a simple way for
people to use their mobile devices or computers as primary control
interfaces in an Extron control system.
The IPCP Pro 250 is configured using Extron Global Configurator
Plus and Professional software, which provides powerful
customization options. It is also compatible with GlobalViewer
®
Enterprise software for complete, centralized AV resource
monitoring, management, and control over a computer network.
KEY FEATURES
A Supports TouchLink
®
Pro touchpanels
A Supports secure industry standard communications
protocols
A Supports LinkLicense
™
A One bidirectional RS-232 port with software handshaking
A One bidirectional RS-232/RS-422/RS-485 serial port with
hardware and software handshaking
To Next Page
