SPECIFICATIONS
DESCRIPTION
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
VIDEO INPUT — TRANSMITTER
Connectors 1 female HDMI type A
INTERCONNECTION BETWEEN TRANSMITTER AND RECEIVER
Signal transmission distance
1080p @ 60 Hz Up to 230' (70 m) using shielded twisted pair (STP) cable
or XTP DTP 24 STP cable
2560x1600 @ 60 Hz Up to 130' (40 m) using shielded twisted pair (STP) cable
or XTP DTP 24 STP cable
4K/UHD @ 30Hz and 60 Hz Up to 130' (40 m) using shielded twisted pair (STP) cable
or XTP DTP 24 STP cable
Cable requirements Solid conductor, 24 AWG or better
Cable recommendations 400 MHz bandwidth, STP (shielded twisted pair)
NOTE:
Extron XTP DTP 24 shielded twisted pair cableis strongly recommended for optimal performance.
VIDEO OUTPUT — RECEIVER
Connectors 1 female HDMI type A
AUDIO INPUT
Number/signal type 1 PC level stereo, unbalanced
NOTE:
Analog audio is not embedded onto the digital video signal. Embedded digital audio is not de-
embedded from the digital video signal.
AUDIO OUTPUT
Number/signal type 1 stereo (2 channel), balanced/unbalanced
GENERAL
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
Model Version Description Part number
DTP HDMI 4K 230 Tx HDMI Tx - 230 feet (70 m) 60-1271-12
DTP HDMI 4K 230 Rx HDMI Rx - 230 feet (70 m) 60-1271-13
Model Version Description Part number
DTP HDMI 4K 230 D Tx Decorator-Style Tx, Black - 230 feet (70 m) 60-1441-12
DTP HDMI 4K 230 D Tx Decorator-Style Tx, White - 230 feet (70 m) 60-1441-13
DTP HDMI 4K 230 D Rx Decorator-Style Rx, Black - 230 feet (70 m) 60-1441-22
DTP HDMI 4K 230 D Rx Decorator-Style Rx, White - 230 feet (70 m) 60-1441-23
WORLDWIDE SALES OFFICES
www.extron.com
Anaheim • Raleigh • Silicon Valley • Dallas • New York • Washington, DC • Toronto • Mexico City • Paris • London •
Madrid • Stockholm • Amersfoort • Moscow • Dubai • Johannesburg • Tel Aviv • Sydney • Melbourne
New Delhi • Bangalore • Singapore • Seoul • Shanghai • Beijing • Hong Kong • Tokyo
Decorator-Style
AUDIO
INPUTS OVER DTP
RS-232
IR
TxRx Tx RxG
POWER
12V
0.7A MAX
SIG LINK
DTP OUT
POWER
12V
2
--A MAX
Rx GTx RxTxG
RS-232 IR
RxTx
1
RGB, Y, R-Y, B-Y HDMI HDMI
SIG LINK
DTP OUT
AUDIO
CONTACT RS-232TALLY
3
1 2 3 G 1 2 3 +V
RESET
INPUTS
OVER DTP REMOTE
50-60 Hz
100-240V ~
2.0 A MAX
1
L
R
SIG LINK
OUT
SIG LINK
OUT
1
3
4
4
XTP
RS-232 IR
Tx Rx
RTS CTS
G Tx Rx G Tx Rx G
RS-232 IR
Tx Rx Tx RxG
Tx Rx G
Tx Rx Tx Rx
XTP
RESET
S/PDIF
OUT
DTP
XTP
DTP
XTP
DTP
EXP
+48V
MIC/LINE
1
1
3
2
4
2
3
4
LINK
LAN 2
LAN 1
LAN 3
HDBT
G
DTP
HDBT
2
1 2 3 4
5
7
8
6
DTP CROSSPOINT 84
4
CLASS 2 WIRING
8 /
R
RS-232 IR
Tx Rx Tx RxG
OVER TP
OVER TP
REMOTE
SIG LINK
IN
SIG LINK
IN
AUDIO INPUTS
AUDIO OUTPUTS
AMP OUTPUT
CONTROL
1 2 3 4 G
DIGITAL I/OCOM 3COM 2COM 1
S
DMP EXPANSION
SG G
1
1
2
2
C 3 4 C
INPUTS
-S G+S+V
PWR OUT = 6W
OUTPUTS
RS-232 IR
Tx Rx Tx RxG
1
L R
1
L R
3
L R
3
L R
5
L R
2
L R
4
L R
2
L R
4
L R
6
L R
IR/SERIAL eBUSRELAYS
Extron Extron
HDMI OUT
G
Tx Rx
Tx Rx
OVER DTP
RS-232 IR
HDMI OUT
G
Tx Rx
Tx Rx
OVER DTP
RS-232 IR
Extron
DTP HDMI
4K 230 Tx
Transmitter
Flat Panel Display
Extron
DTP R HWP
4K 331 D
Receiver
Flat Panel Display
CATx
Cable
up to 230'
(70 m)
CATx
Cable
up to 230'
(70 m)
CATx Cable
up to 230'
(70 m)
CATx Cable
up to 330'
(100 m)
RS-232HDMI RS-232HDMI
Extron
DTP R HWP
4K 231 D
Receiver
Ethernet
Ethernet
AudioAudio
Extron
DTP T USW 233
Transmitter
Inputs
Outputs
AV
Control
Network
Microphones
Extron
DTP CrossPoint 84 IPCP SA
Scaling Presentation Matrix
Switcher with DTP Extension
and Control Processor
Extron
SM 26
Surface Mount
Speakers
Extron
TLP Pro 1020T
10" Tabletop TouchLink
Pro Touchpanel
Help
System
Off
Display
Room
Control
Off
Mute
Screen
Lighting
December 15, 2013 - 7:58 AM
Audio
Control
Volume
Mute
Tuner
1 2 3
VCRLaptop PC DVD
Doc
Cam
Tuner
On
Channel
Last
Presets
More
Presets
321
654
987
Enter
0
SPECIFICATION
Frame rate
1
24, 25, 30, 50, or 60 fps
Chroma sampling
1
4:4:4, 4:2:2, or 4:2:0
Color bit depth
1
8 bits per color
Signal type HDMI 1.4, HDCP 2.2
Max. video data rate 10.2 Gbps (3.4 Gbps per color)
NOTE:
1
Subject to the maximum data rate limit. Use our calculator (http://www.extron.com/product/
videotools.aspx) to determine video parameters supported by this data rate.
Max 4K Capabilities
Resolution and Refresh Rate Chroma Sampling Max Bit Depth per Color
4096 x 2160 at 30 Hz
3840 x 2160 at 30 Hz
4:4:4
8 bit
4096 x 2160 at 60 Hz
3840 x 2160 at 60 Hz
4:2:0
The Extron DTPHDMI4K230 is a transmitter and receiver set for
sending HDMI, audio, and bidirectional RS‑232 and IR signals up to
230feet (70meters) over a shielded CATx cable to Extron DTP
™
‑
enabled products. It provides an economical and effective means for
extending HDMI with embedded multi‑channel audio from HDMI‑
equipped devices. The DTPHDMI4K230 accepts analog stereo
audio signals for simultaneous transmission over the same shielded
twisted pair cable. It supports video signals at resolutions up to 4K,
including 1080p/60 Deep Color. The DTPHDMI4K230 enables
the reliable transmission of HDMI signals, supporting DeepColor
up to 12‑bit, CEC pass‑through, and embedded HD lossless audio
formats. In addition, DDC communication of EDID and HDCP is
continuously maintained between a source and display, ensuring
direct compatibility and optimal signal transmission between
devices.
For installation flexibility, the DTPHDMI4K230 transmitter or
receiver can be remotely powered over the shielded twisted pair
cable by a DTP‑enabled product. The twisted pair extender also
supports simultaneous transmission of bidirectional RS‑232
and IR signals from a control system for AV device control.
The DTPHDMI4K 230 can be integrated with an Extron
DTPCrossPoint
®
84 Presentation Matrix Switcher, or other DTP‑
enabled products to support inputs, plus displays and other output
devices at remote locations.
04‑2017
68‑2280‑01
REV. A8
Letter ‑ English ‑ NP

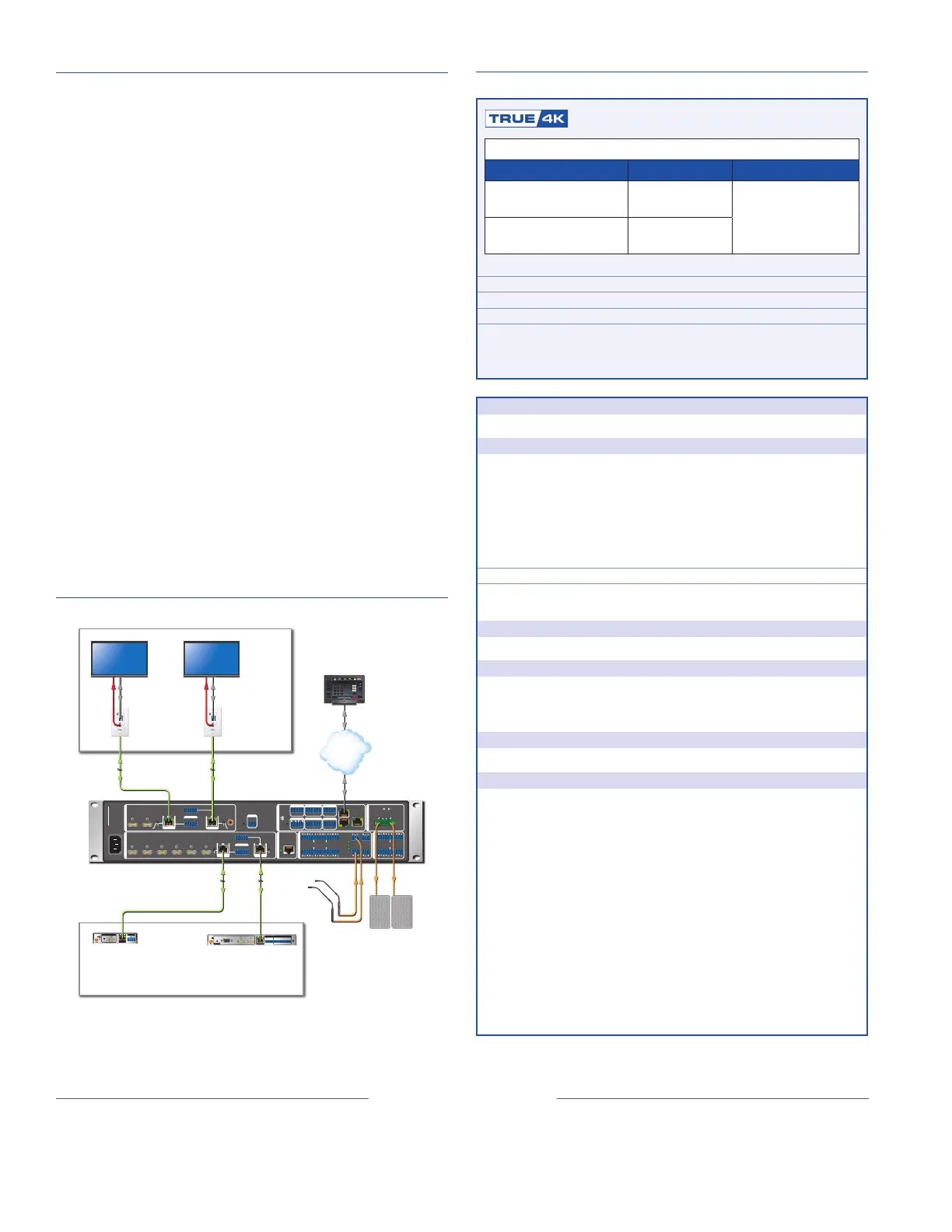

APPLICATION DIAGRAM
