DESCRIPTION
DESCRIPTION
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
DISPLAY
Screen type TFT Active matrix color LCD display
Size 7" (17.8 cm), measured diagonally
Resolution 1024x600
Aspect ratio Widescreen
Color depth 24 bit, 16.7 million colors
Contrast 700:1
MEMORY
SDRAM 2 GB
Flash 4 GB
COMMUNICATION — ETHERNET INTERFACE
Ethernet data rate 10/100/1000Base-T, half/full duplex with autodetect
Ethernet protocol
DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
Software
Configuration software Global Configurator Plus and Professional, GUI Designer
Programming software Global Scripter
Control apps Extron Control, iGVE
Resource management software GlobalViewer Enterprise, iGVE
Utilities Toolbelt, Embedded web page
CONTROL — USB
Number/signal type 1 high-speed USB 2.0 device
USB standards USB 2.0, USB 1.1, USB 1.0 compatible
AUDIO OUTPUT
Speaker output 1 mono, 89 dB Max. SPL @ 0.1 m
Playback format(s)
Container format WAV (Microsoft RIFF)
Encoding LPCM (uncompressed)
Audio channels mono or stereo
GENERAL
Power input requirements Power over Ethernet (PoE 802.3af, class 3)
Auxiliary power output
USB 5 VDC, 275 mA
Temperature/humidity Storage:-4 to +158 °F (-20 to +70 °C) /
5% to 90%, noncondensing
Operating: -4 to +158 °F (-20 to +70 °C) /
20% to 90%, noncondensing
Mounting Wall, furniture, or rack
Enclosure dimensions 5.05" H x 7.24" W x 1.20" D
(128 mm H x 184 mm W x 30 mm D)
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE, C-tick,FCC ClassB, ICES, VCCI
Environmental Complies with theappropriate requirements of RoHS and
WEEE.
Warranty 3 years parts and labor; touchpanel display and overlay
components are covered for 1 year
Model Version Description Part number
TLP Pro 725M Black - Wall Mount 60-1563-02
TLP Pro 725M White - Wall Mount 60-1563-03
Optional Accessories
Model Version Description Part number
RM 5 Rack Mount Kit for TLP Pro 725M 70-1137-02
SMK 2 TLP Surface Mount Kit - Black 70-1140-22
SMK 2 TLP Surface Mount Kit - White 70-1140-23
RWM 2 TLP Recessed Wall Mount Kit 70-1141-23
WORLDWIDE SALES OFFICES
www.extron.com
Anaheim • Raleigh • Silicon Valley • Dallas • New York • Washington, DC • Toronto • Mexico City • Paris • London
Frankfurt • Madrid • Stockholm • Amersfoort • Moscow • Dubai • Johannesburg • Tel Aviv • Sydney • Melbourne
Bangalore • Mumbai • New Delhi • Singapore • Seoul • Shanghai • Beijing • Hong Kong • Tok yo

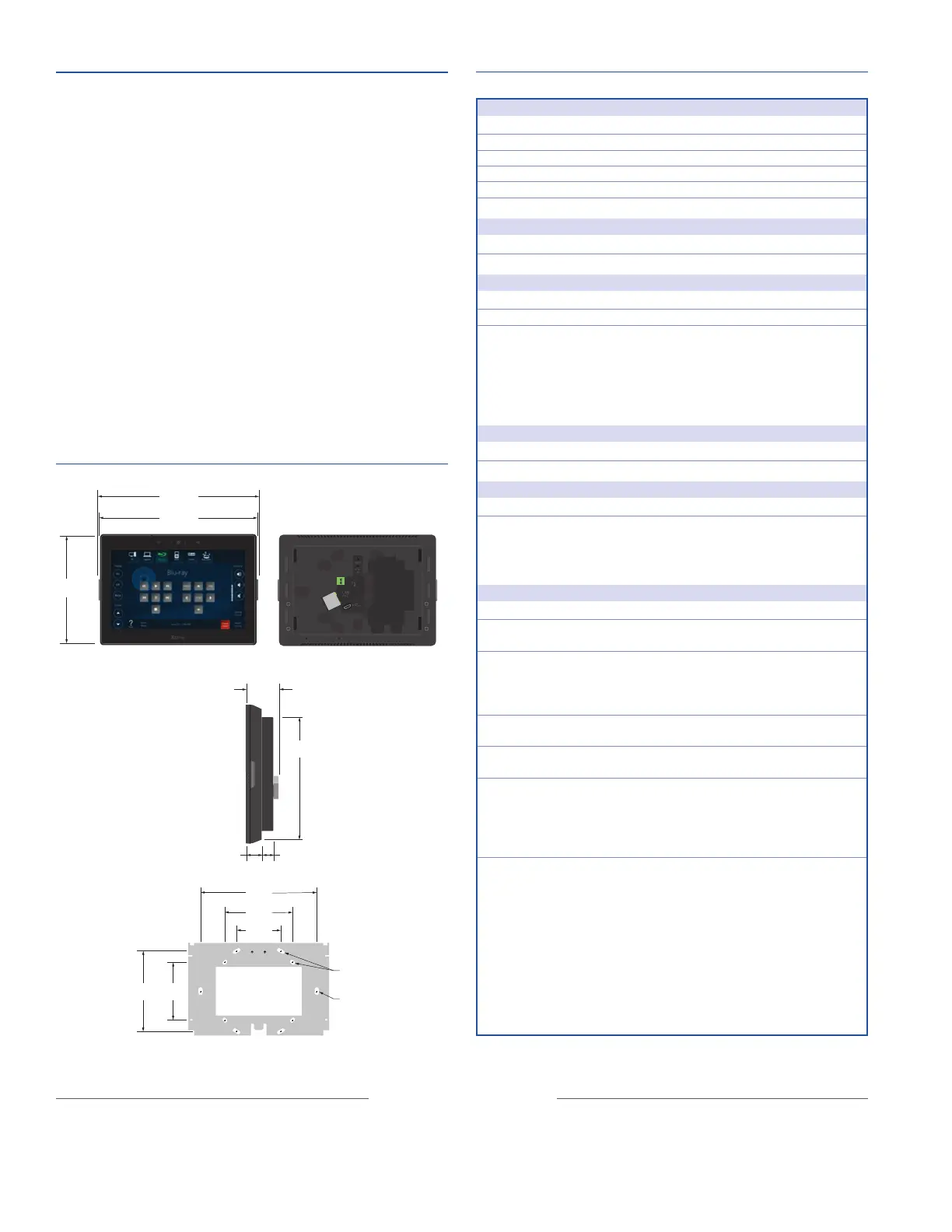

PANEL DRAWINGS
03-2018
68-3238-01
REV. A
Letter - English - NP
© 2018 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. Prices and specications subject to change without notice.
SPECIFICATIONS
1.20"
(30.4 mm)
0.59"
(14.9 mm)
0.42"
(10.8 mm)
1.81"
(46.0 mm)
2.76"
(70.0 mm)
4.75"
(120.6 mm)
Wall Mount
2.36"
(60.0 mm)
3.28"
(83.3 mm)
4.72"
(120.0 mm)
CLEARANCE HOLE FOR
#6 OR M3 HARDWARE
CLEARANCE HOLE FOR
M3.5 HARDWARE
NORTH
AMERICA
NORTH
AMERICA
NORTH
AMERICA
TOP
EU
EU
EU
MK
MK
EU
NORTH
AMERICA
Side
7.24"
(183.9 mm)
7.12"
(180.9 mm)
5.05"
(128.2 mm)
Front
Rear
The TLP Pro 725M is a 7" wall mount touchpanel that offers stellar
performance and superior design. Inside, there's a powerful new
quad-core processor and eight times more memory feeding the high
resolution 1024 x 600 edge-to-edge glass capacitive touchscreen.
The touchscreen, itself, is our most durable yet - built with scratch
and smudge-resistant Corning Gorilla Glass. Outside you'll find a
stylish, ergonomic enclosure that will complement any contemporary
presentation environment.
A host of familiar features provides elegant, simple operation, while
PoE, Power over Ethernet streamlines integration by allowing the
touchpanel to receive power and communication over a single
Ethernet cable.
All TouchLink Pro touchpanels can be customized using Extron GUI
Designer software. This powerful interface design software offers
ready-to-use templates for a wide variety of rooms and presentation
environments.
