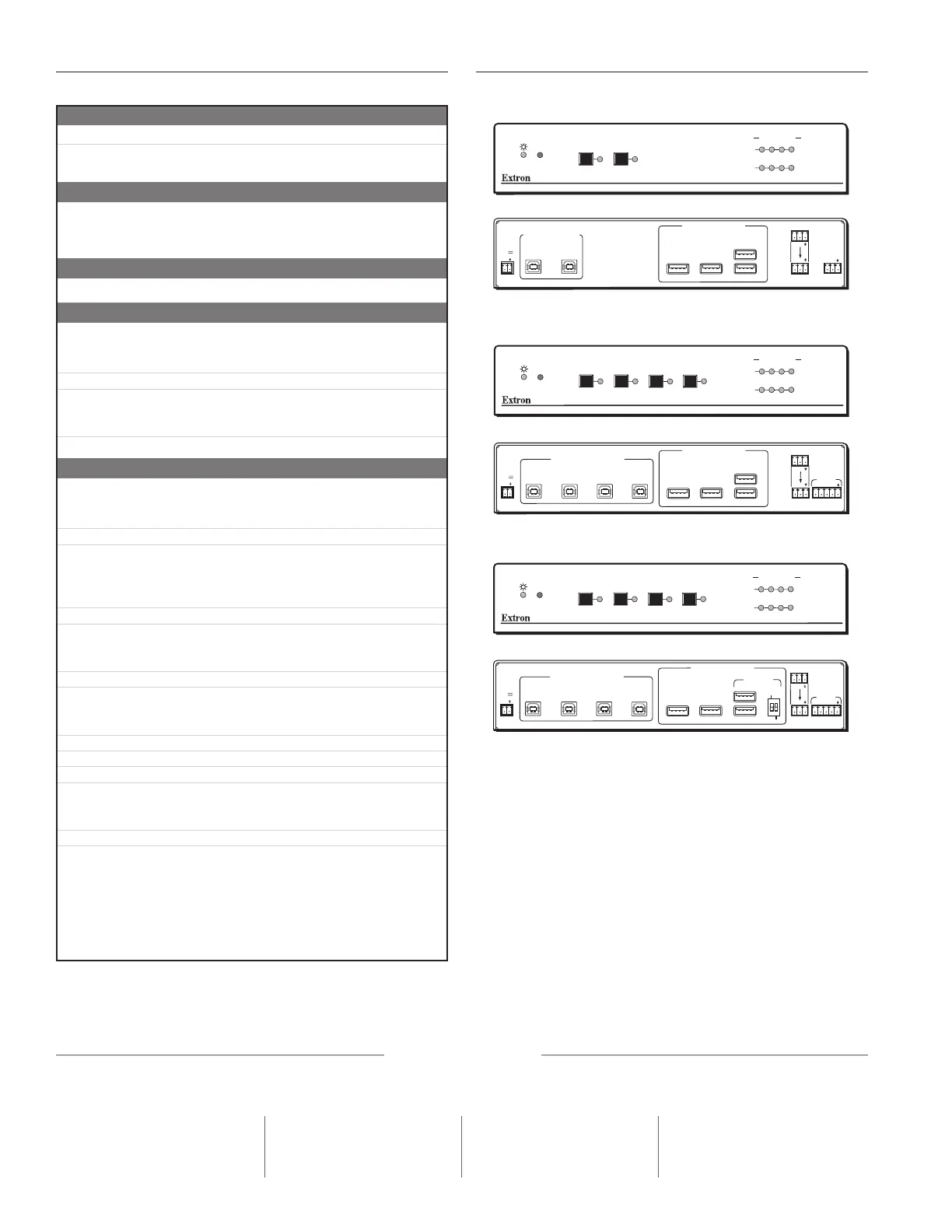

SW4 USB - Back
PANEL DRAWINGSSPECIFICATIONS
SW4 USB Plus
USB SWITCHER
EXEC
MODE
1
2
3
4
1
2
3
4
INPUT
1
2
3
4
OUTPUT
ACTIVE USB
USB SWITCHED INPUTS
USB OUTPUTS HUB
Tx
Tx Rx
RS-232
CONTACT
1
2
3
4
RS-232
PASS THRU
USB 3
USB 1
USB 2
USB 4
1.5A MAX
12V
POWER
+
PC 1
PC 2
PC 3
PC 4
SW4 USB
USB SWITCHER
EXEC
MODE
1
2
3
4
1
2
3
4
INPUT
1
2
3
4
OUTPUT
ACTIVE USB
USB SWITCHED INPUTS
USB OUTPUTS HUB
Tx
Tx Rx
RS-232
RS-232
PASS THRU
USB 3
USB 1
USB 2
USB 4
1.5A MAX
12V
POWER
+
PC 1
PC 2
PC 3
PC 4
MOUSE
1 2
ON
KEYBOARD
ON
OFF
HOST
EMULATION
CONTACT
1
2
3
4
USB SWITCHED INPUTS
USB OUTPUTS HUB
Tx
Tx Rx
RS-232
CONTACT
1
2
RS-232
PASS THRU
USB 3
USB 1
USB 2
USB 4
1.5A MAX
12V
POWER
+
PC 1
PC 2
SW2 USB
USB SWITCHER
EXEC
MODE
1
2
1
2
3
4
INPUT
1
2
3
4
OUTPUT
ACTIVE USB
SW4 USB Plus - Front
SW4 USB - Front
SW2 USB - Front
SW4 USB Plus - Back
SW2 USB - Back
09-2011
68-1605-01
REV. A1
Letter - English - NP
USB
USB specification USB 2.0 compatible
USB data rates Low speed (1.5 Mbps), full speed (12 Mbps), high speed
(480 Mbps)
USB INPUT
Connectors
SW2 USB 2 female USB type B
SW4 USB, SW4 USB Plus 4 female USB type B
USB OUTPUT
Connectors 4 female USB type A
CONTROL/REMOTE — SWITCHER
Serial control port (1) RS-232, 3.5 mm captive screw connector, 3 pole
(1) RS-232 pass-through, 3.5 mm captive screw
connector, 3 pole
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity
Contact closure
SW2 USB (1) 3.5 mm captive screw connector, 3 pole
SW4 USB, SW4 USB Plus (1) 3.5 mm captive screw connector,5 pole
Program control Extron Simple Instruction Set (SIS
TM
)
GENERAL
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
Power input requirements 12 VDC, 0.70 A
Temperature/humidity Storage: -40 to +158 ˚F (-40 to +70 ˚C) / 10% to 90%,
noncondensing
Operating: +32 to +122 ˚F (0 to +50 ˚C) / 10% to 90%,
noncondensing
Cooling Convection, no vents
Mounting
Rack mount Yes, with optional rack shelf
Furniture mount Yes, with optional under-desk mounting kit
Enclosure type Metal
Enclosure dimensions 1.6" Hx 8.6" W x 3.0" D (1U high, half rack wide)
(4.1 cm H x 21.8 cm W x7.6 cm D)
(Depth excludes connectors.)
Product weight 2.0 lbs (0.9 kg)
Shipping weight 3 lbs (2 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI
MTBF 30,000 hours
Warranty 3 years parts and labor
NOTE:
All nominal levels are at ±10%.
Model Version Description Part number
SW2 USB Two Input USB 60-952-02
SW4 USB Four Input USB 60-953-02
SW4 USB Plus Four Input USB with Emulation 60-954-02
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
