USB EXTENDER PLUS T/R SERIES
USB host support xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
USB data rates Low speed (1.5 Mbps), full speed (12 Mbps), high speed
(480 Mbps)
USB host — Tx units
Number/signal type 1 USB
USB hub — Rx units
Number/signal type (1) 4-port USB hub
Interconnection between transmitter and receiver
Connectors 1 female RJ-45 per unit
Signal transmission distance
Point to point Up to 330' (100 m)
Over the network Up to 1980' (600 m)**
NOTE:
**Over the network distance is through connection of up to five network switches.
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A
Enclosure type Metal
GENERAL
Regulatory compliance
Safety CE, c-UL, KCC, UL
EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Class A
Environmental Complies with the appropriate requirements of RoHS,
WEEE
USB PLUS MATRIX CONTROLLER
Ethernet control
Network interface controllers (NICs) 1
Serial control
Quantity/type 1 bidirectional RS-232
GENERAL
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
Power consumption
Device and power supply 2.0 watts, 100-240 VAC, 50-60 Hz
Mounting
Rack mount Yes, with optional 1U rack shelf or back of the rack
mounting kit
Furniture mount Yes, with optional bracket kit
Enclosure type Metal
Warranty 3 years parts and labor
NOTE:
All nominal levels are at ±10%.
Model Version Description Part number
USB Extender Plus T Transmitter 60-1471-12
USB Extender Plus R Receiver 60-1471-13
USB Extender Plus D T Transmitter - Decorator-Style Version - White 60-1473-13
USB Extender Plus D R Receiver - Decorator-Style Version - White 60-1473-23
USB Extender Plus AAP T Transmitter - AAP Version - Black 60-1472-12
USB Extender Plus AAP R Receiver - AAP Version - Black 60-1472-22
USB Extender Plus AAP R Receiver - AAP Version - White 60-1472-23
USB Extender Plus T HID HID Transmitter 60-1539-12
USB Extender Plus R HID HID Receiver 60-1539-13
USB Plus Matrix Controller Controller 42-267-01
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
Form factors can be mixed and matched between transmitters and
receivers for mounting in all types of furniture and locations.

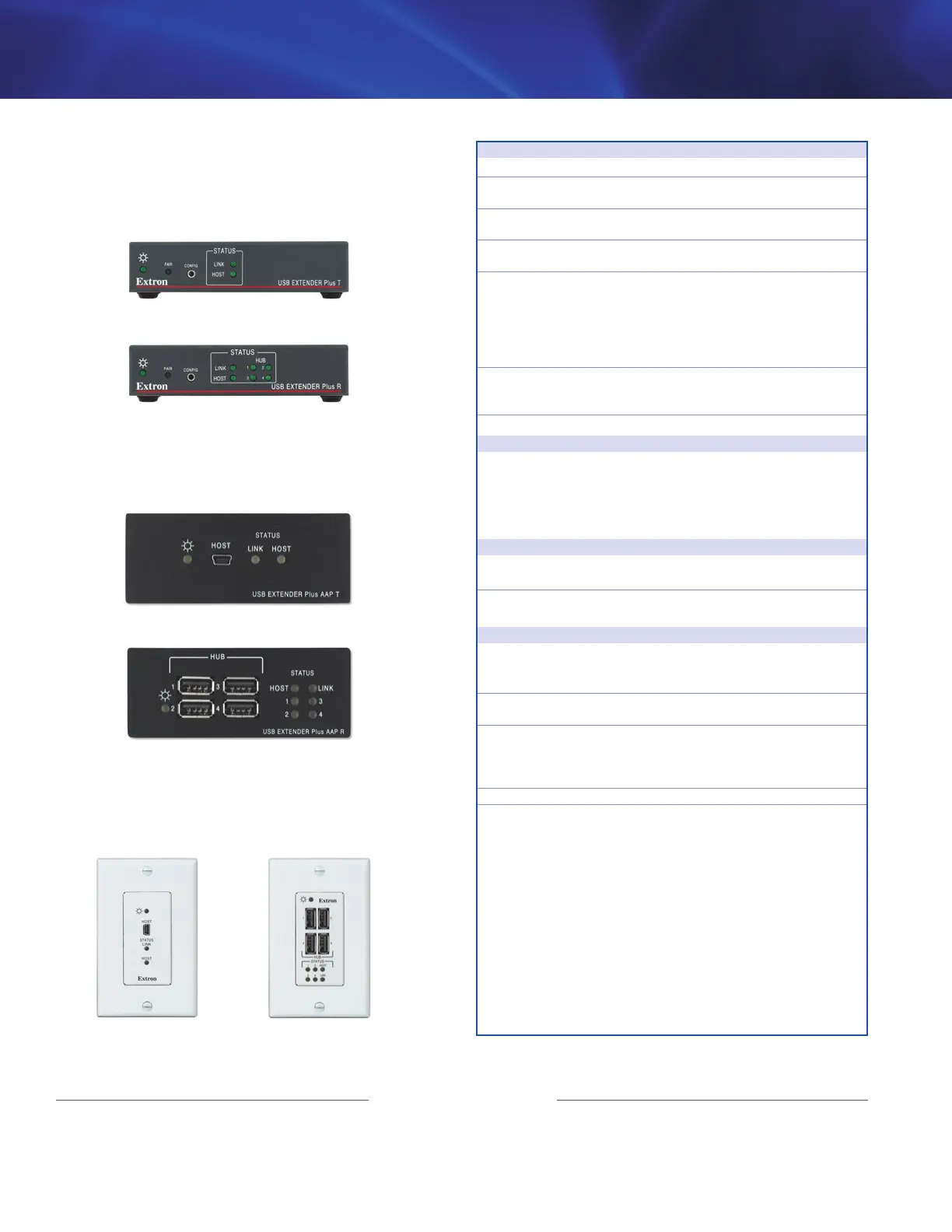

USB Extender Plus T
USB Extender Plus AAP T - Front
USB Extender Plus R
USB Extender Plus AAP R - Front
Architectural Adapter Plates
Rack-Mount
Decorator-Style Wall Plates
USB Extender Plus D T - Front USB Extender Plus D R - Front
