Owner’s Guide 400-109-005-A
4

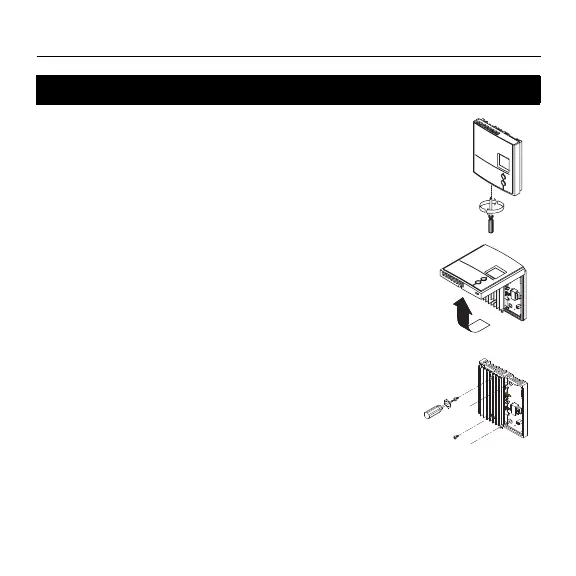

n Loosen the screw underneath the thermostat and
separate the faceplate from the wallplate.
NOTE: The screw remains captive and cannot be
completely removed.
o Wire the thermostat (see page 5).
p Mount the wallplate to the electrical box using the
provided screws. Insert the screws through the two
left or right mounting holes of the wallplate.
q Set the configuration switches (see page 6)
r Reinstall the faceplate onto the wallplate and tighten
the screw.
NOTE: If there is a protective film or sticker on the
thermostat’s screen, peel it off.
s Apply power to the heating system. Verify the
installation by checking that the heating system can
be turned On by raising the setpoint using the Up
button or turned Off by lowering the setpoint using
the Down button.
Mounting the thermostat
400-109-005-A (Calypso) ENG.fm Page 4 Monday, November 30, 2009 2:36 PM
