AUDAC D2 User Manual

11

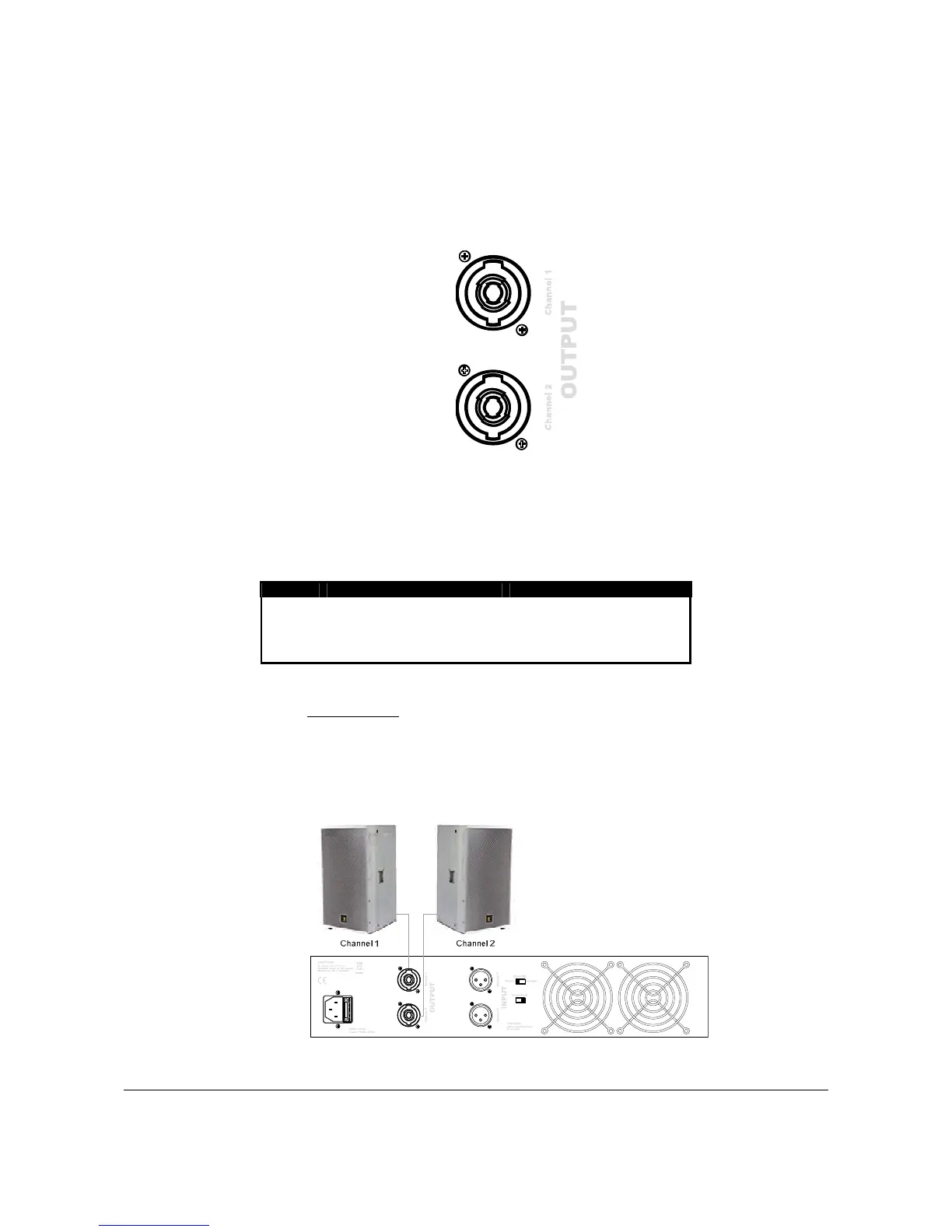

Output connections
The loudspeaker connections are performed by using Speakon connectors. The loudspeakers
should be connected to the corresponding Speakon connector.
The used Speakon connectors are 4-pole versions. At the contacts of Speakon 1 (Channel 1), are
the output signals available for both output channels. Contacts +1 and -1 contain the signal for
output Channel 1, while contacts +2 and -2 contain the signal for output Channel 2. The contacts
of Speakon 2 (Channel 2) only contain the signals of Channel 2, which are available on contacts
+1 and -1.
S
p
eakon 1
(
Channel 1
)
S
p
eakon 2
(
Channel 2
)
Pin +1 Channel 1 + Channel 2 +
Pin -1 Channel 1 - Channel 2 -
Pin +
2
Channel 2 + n/
c
Pin -
2
Channel 2 - n/
c
1) Stereo Mode:
Stereo mode will be the most common operation method for this amplifier. The
loudspeakers of each channel can be connected with a separate two-core
connection cable. (or one four-core connection cable, carrying both signals for
Channel 1 and Channel 2 when connecting by connector Speakon 1)
