Overview front and rear panel

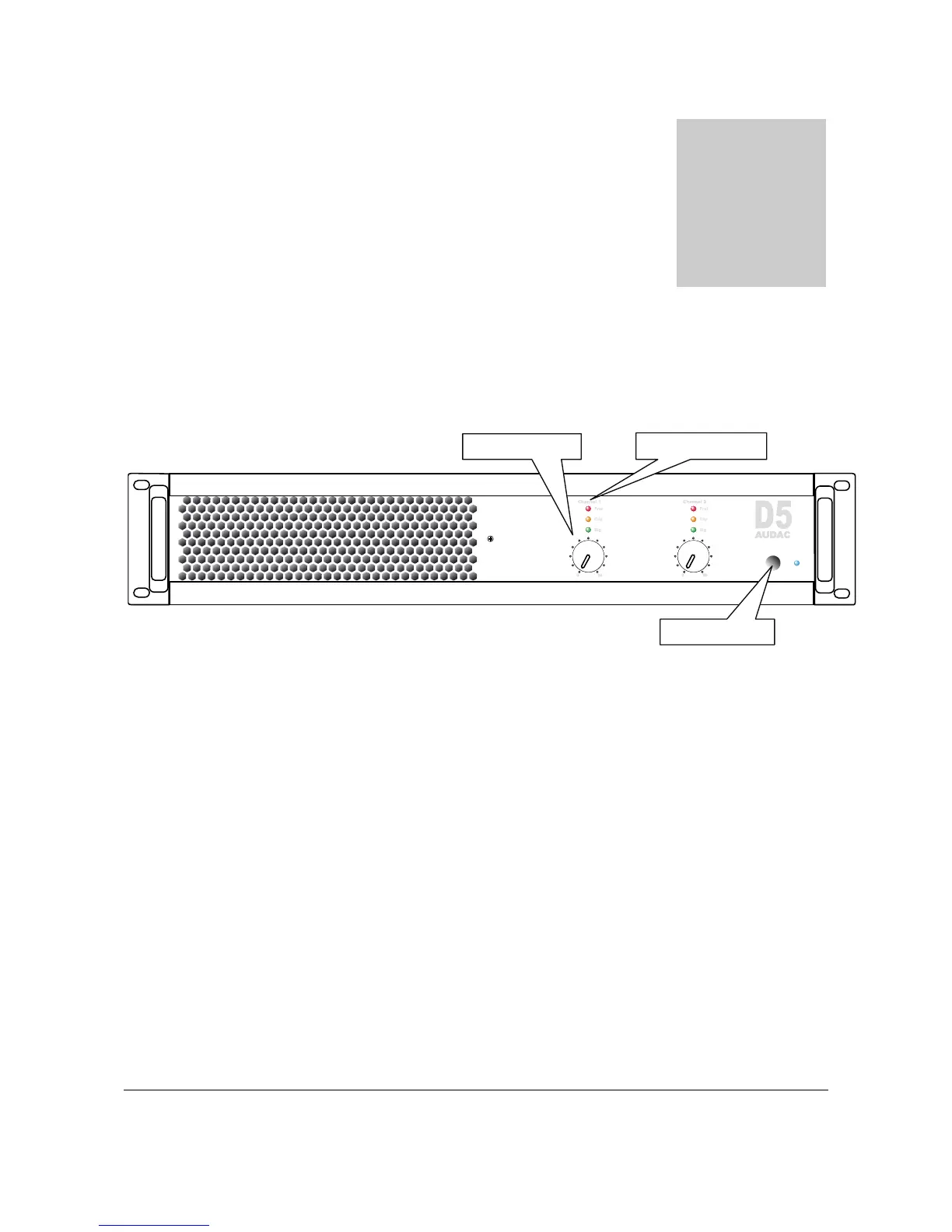

Front panel overview
Description
1. Power switch:
By means of the power switch, the amplifier can be turned ON and OFF. When the amplifier is
switched on, the blue LED located next to the power button will illuminate.
2. Gain control knobs:
These rotary gain control knobs allow you to adjust the level for each individual channel.
3. Indicator LED’s:
These LED’s indicate the operation of the amplifier. There are three LED’s provided. A signal
indicator, a Clip indicator, and a Protect indicator. The green signal indicator LED will illuminate
when a signal is available on the corresponding channel. The yellow clip LED will illuminate when
the channels output is being overdriven, and the red protection indicator will illuminate when the
protection circuit of the corresponding channel is activated. The protection circuit will intervene
during the startup procedure of the amplifier, when a problem occurs. The output signal will be
interrupted when this LED is lit.
