2) Bridge mono Mode:

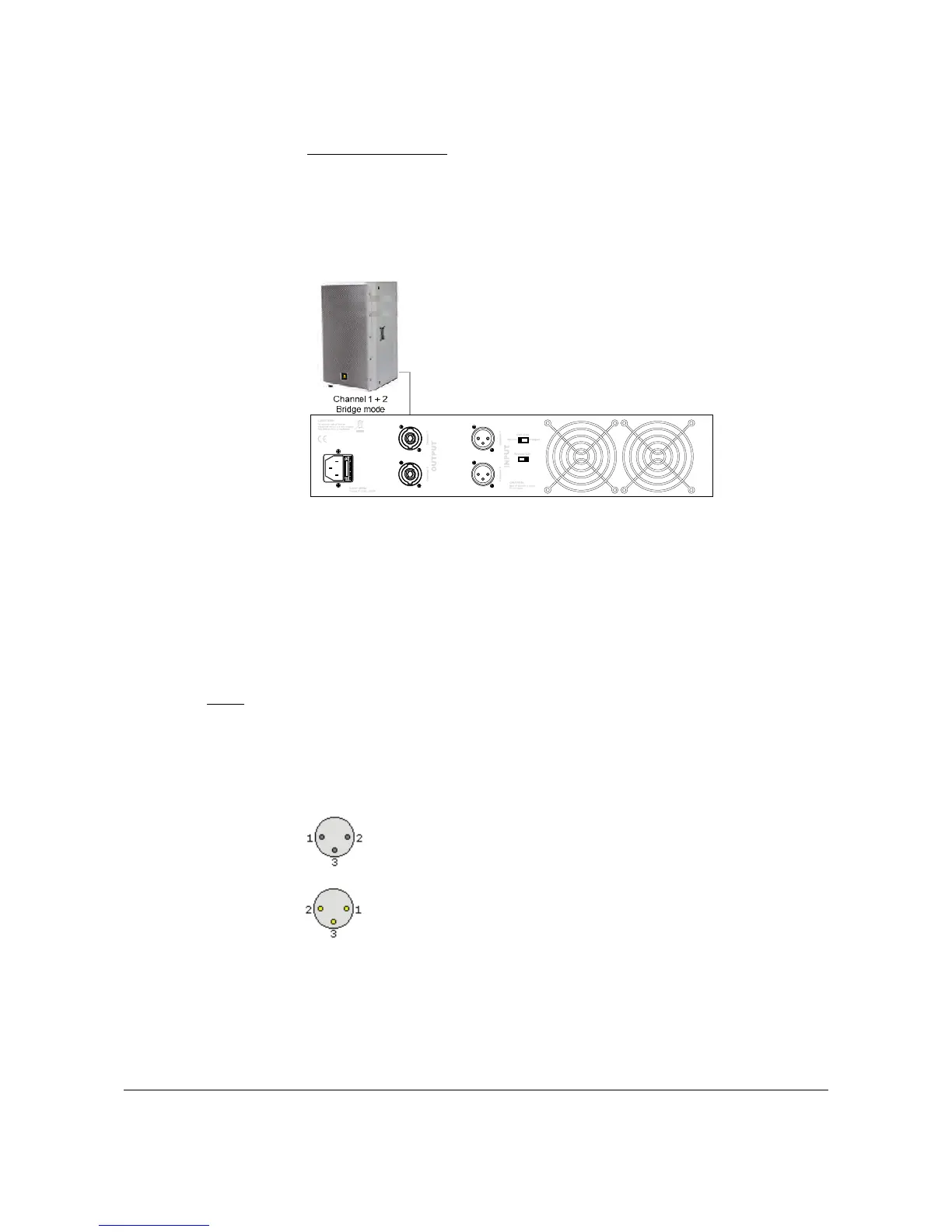

When the amplifier is switched in bridge mode, there will be one single load
connected to the amplifier outputs. This load should be connected between the +
terminal of Channel 1 and the + terminal of Channel 2. This can be done by
connecting the loudspeaker between the +1 and +2 terminals of Speakon
connector one.
Connection standards
The in- and output connections of AUDAC audio equipment are performed corresponding to
international wiring standards for professional audio equipment.
XLR:
1 = ground / shield
2 = +sig
3 = -sig
XLR female:
XLR male:
