Connecting the speaker
For connecting the LINO, the wires coming from the amplifier shall be connected to
the 6-pin terminal block connector on the rear of the speaker. Depending whether
the speaker will be used in a low impedance system or a constant voltage (70/100V)

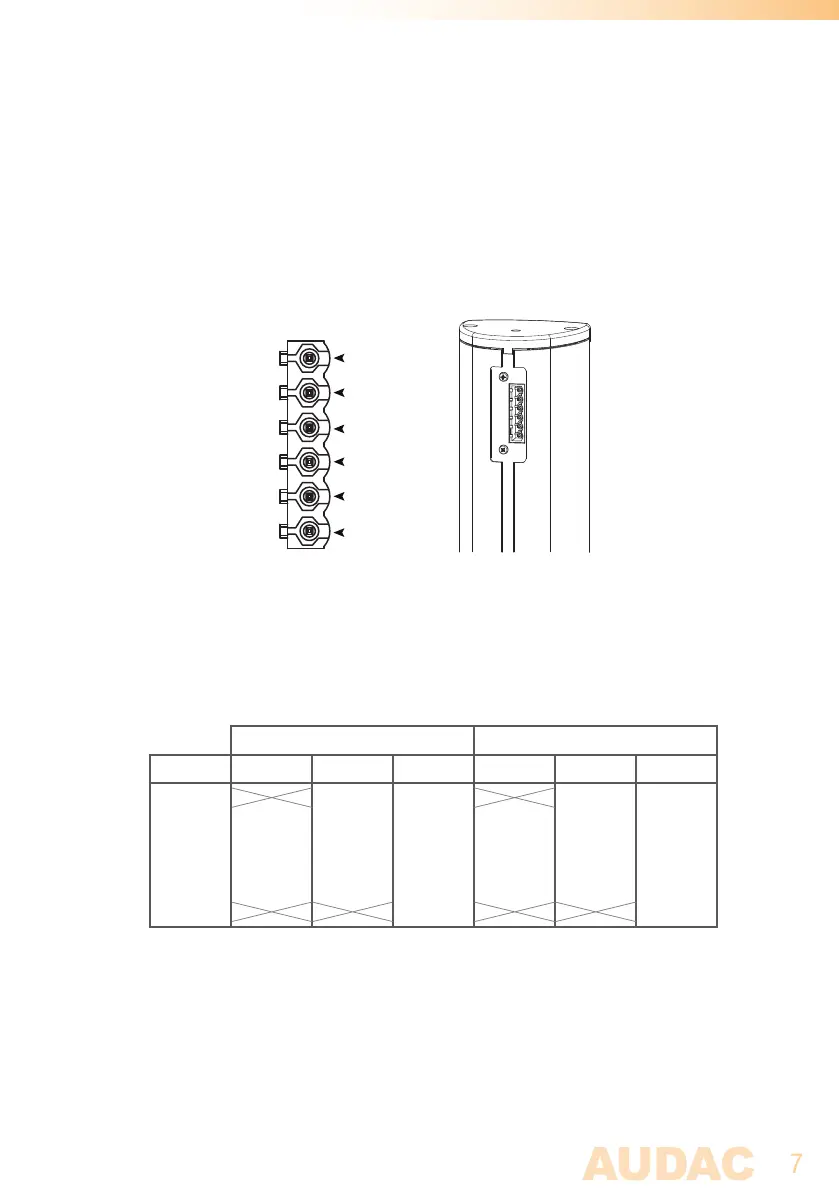

system, the appropriate terminals of the connector should get connected as indicated
in the below drawing.
B
8 Ω
COM
C
A
D
When using in constant voltage 70/100V systems, the power taps can be adjusted in 4
steps of impedance through connecting the appropriate terminals of the 6-pin terminal
block connector. Each position corresponds with a specific impedance / power setting
indicated on a label attached to the speaker, and in the table below.
LINO4 LINO10
Tapping 100V 70V Imp. 100V 70V Imp
A
20 W 250 Ω 40 W 125 Ω
B
20 W 10 W 500 Ω 40 W 20 W 250 Ω
C
10 W 5 W 1000 Ω 20 W 10 W 500 Ω
D
5 W 2.5 W 2000 Ω 10 W 5 W 1000 Ω
Low-Z
8 Ω 20 Ω
