Air vents
Applies to vehicles: wit h Deluxe automatic climate control plus
Air distribution determines the air flow from the individual vents.

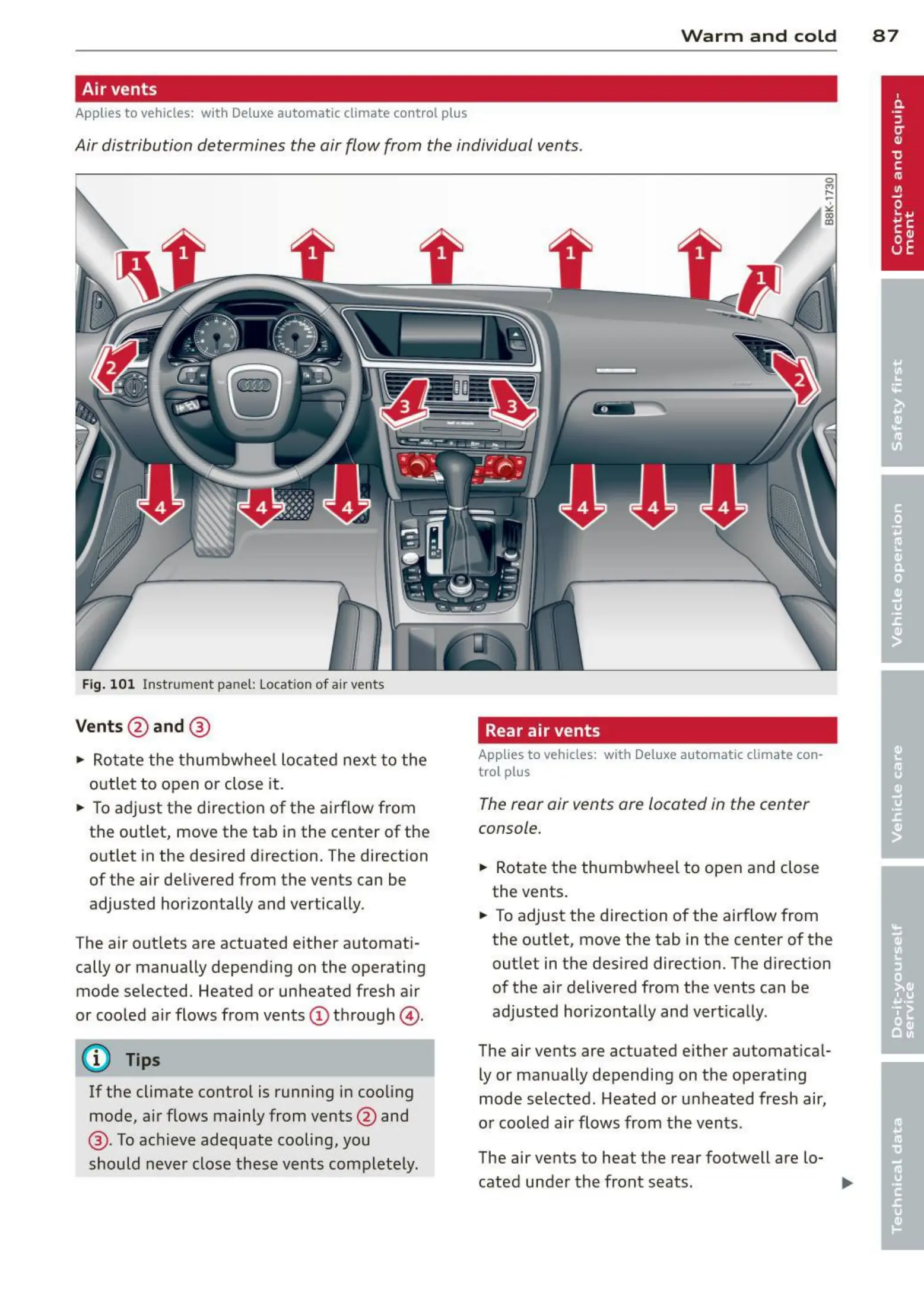

Fig. 101 Instrument pa nel: Locat ion of air vents
Vents @ and @
• Rotat e the thumbwheel located next to the
outlet to open or close it.
• To adjust the direction of the airflow from
the outlet, move the tab in the center of the
outlet in the desired direct ion. The direction
of the air delivered from the vents can be
adjusted horizontally and vertically.
The air out lets are actuated either automati-
cally or manually depending on the operating
mode selected. Heated or unheated fresh air
or cooled a ir flows from vents (!) through @ .
(D Tips
If the climate control is running in cooling
mode, air flows mainly from vents @ and
@. To achieve adequate cooling, you
should never close these vents complete ly.
Rear air vents
Applies to vehicles: with Deluxe automatic climate con-
tro l plus
The rear air vents ore located in the center
console.
• Rotate the thumbwheel to open and close
the vents .
• To adjust the direction of the airflow from
the outlet , move the tab in the center of the
outlet in the desired direction. The direction
of the a ir delivered from the vents can be
adjusted hor izonta lly and vert ically.
The air vents are actuated either automat ical-
ly or manually depending on the operat ing
mode selected . Heated or unheated fresh air,
or cooled air flows from the vents .
The air vents to heat the rear footwell are lo-
cated under the front seats.
