The fusebox is an electronic box that controls the power supply to practically all
devices. Internally, the thermal fuses reset automatically, so changing a fuse will
never be necessary. In case of malfunction it has to be sent to Audi Sport.
It is also possible to check if a fuse has blown in the fusebox, so you will know if
the current or signal was sent.
There are three ways to check the correct functioning:
Live measures view using RaceStudio3.
Checking the fusebox control channels in RaceStudio Analysis.

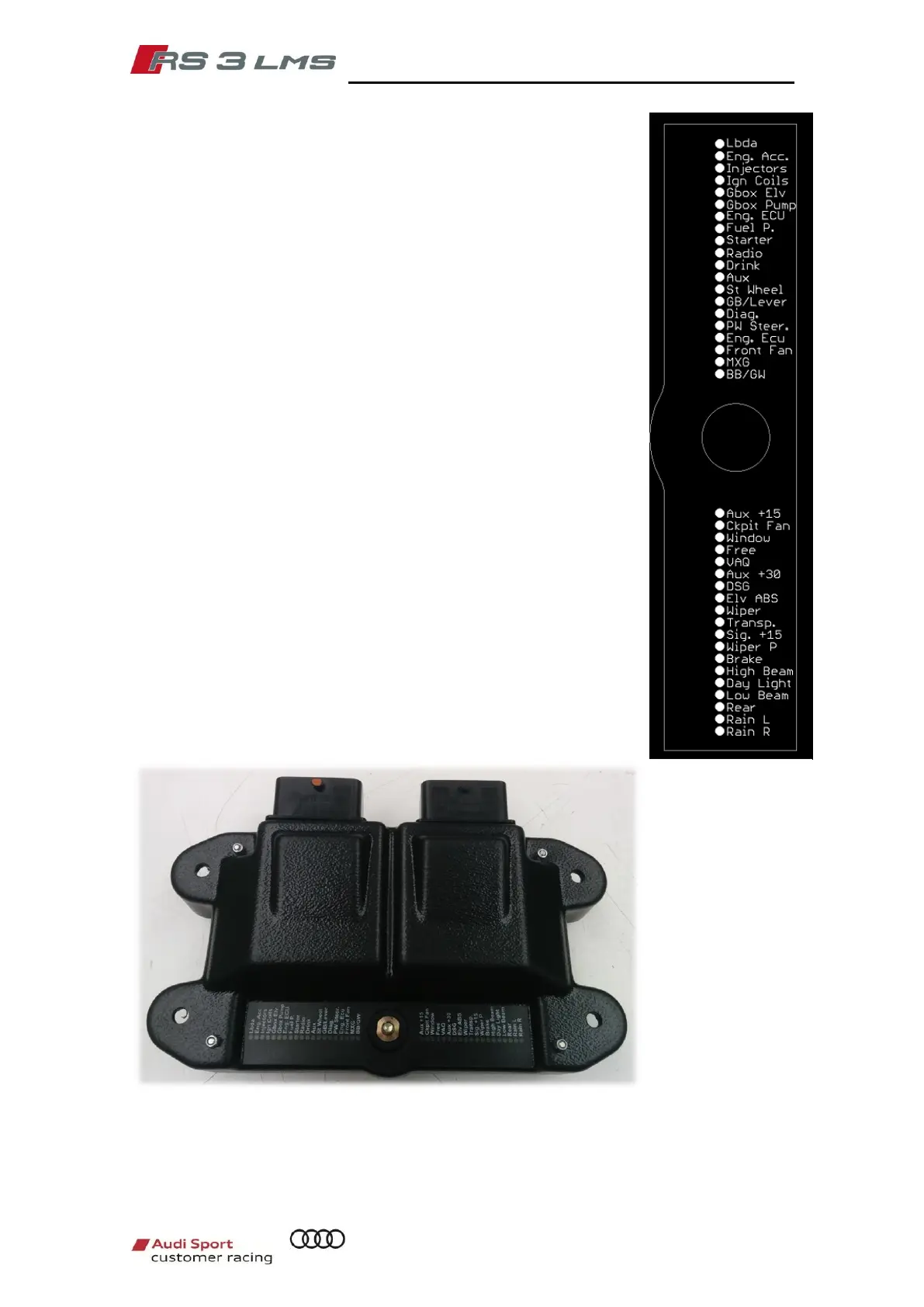

Checking the red LEDs on the fusebox.
If a malfunction is detected, it is necessary to first check the corresponding wiring
or the device.
In the following tables is shown the fusebox analysis information:
Channel name: There are 7 channels to analyse.
Bit number: Each channel is able to control 8 fuses.
Data value: Is the value you can check on data acquisition.
