Oil cooler return

The new coolant pipe alters the coolant ﬂow

in the „small“ cooling circuit.

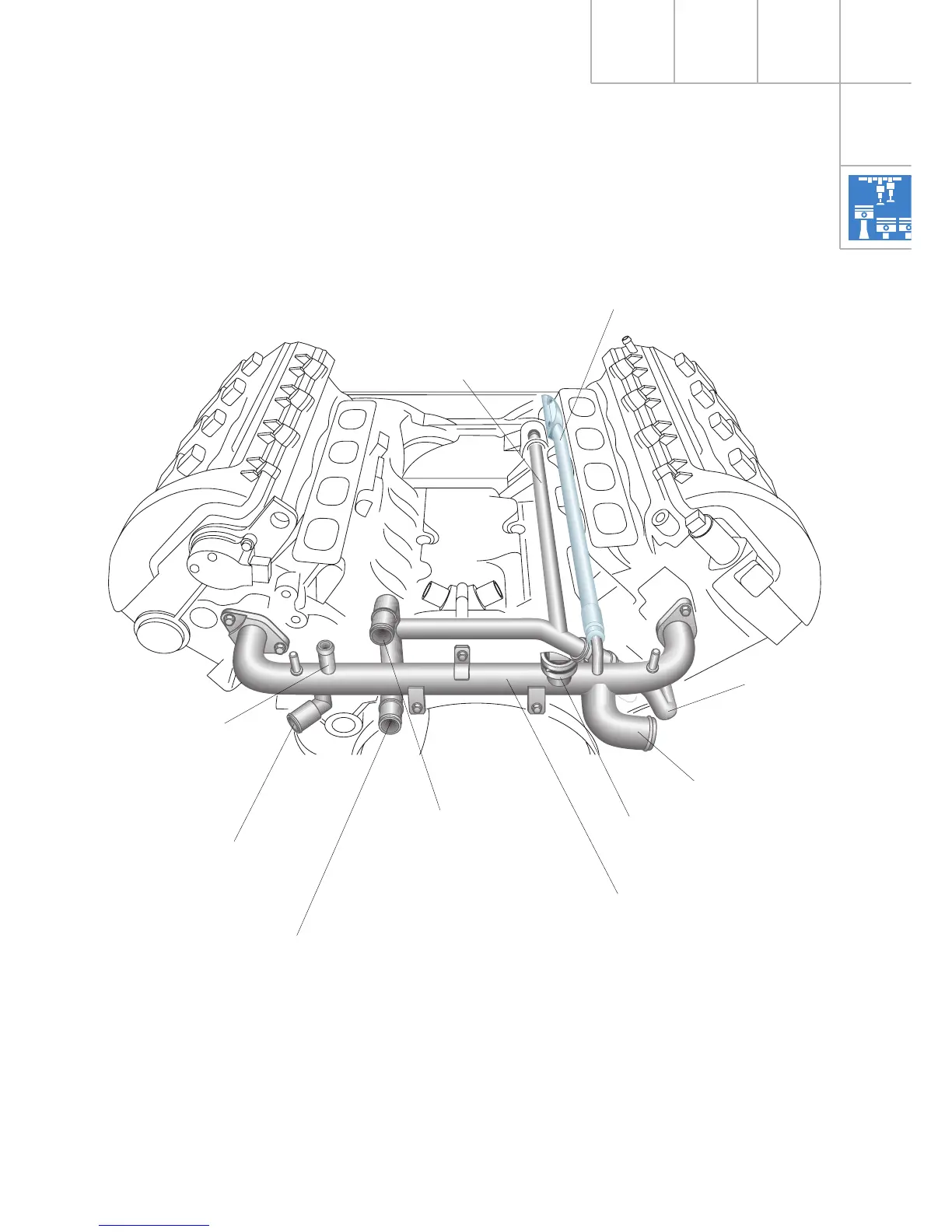

SSP217_016

Coolant pipe

(return for heater, oil cooler

and expansion tank)

New coolant pipe to

cylinder head

(small cooling circuit)

To expansion tank (A8)

Coolant return

Heat exchanger (A6)

Breather pipe

(to expansion tank)

Coolant supply

for heat exchanger

to vehicle radiator

Coolant return

Heat exchanger (A8)

to expansion tank (A6)

Coolant temperature

sender G2 and G62

Coolant pipe (rear)
