Audi V8 - Exhaust Manifold

26
Engine - Mechanics
This protects the individual cylinders
effectively against annoying exhaust
vibrations which, in turn, has a positive
effect on engine-torque characteristics.
The pipe sections and assembly of the air-
gap-insulated exhaust manifold have been
modified.
The exhaust pipes of the individual cylinders
are assembled in a cloverleaf configuration
for each cylinder bank (4 in 1 arrangement).

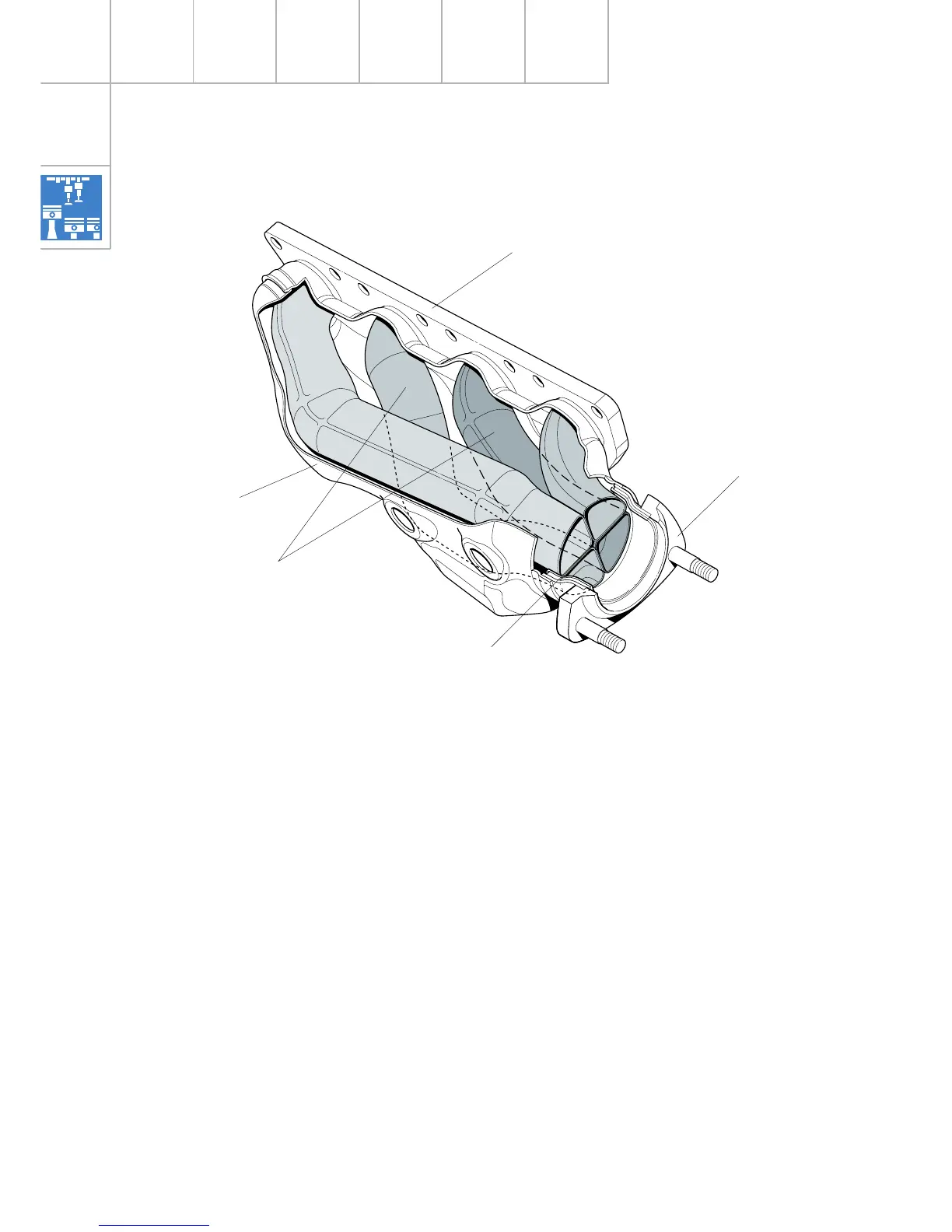

Exhaust manifold
SSP217_036
Manifold flange
(left-hand cyl. bank)
Connection for front
exhaust pipe
Cloverleaf
arrangement
Individual pipes
reshaped for
internal high
pressure
Outer shell
