36

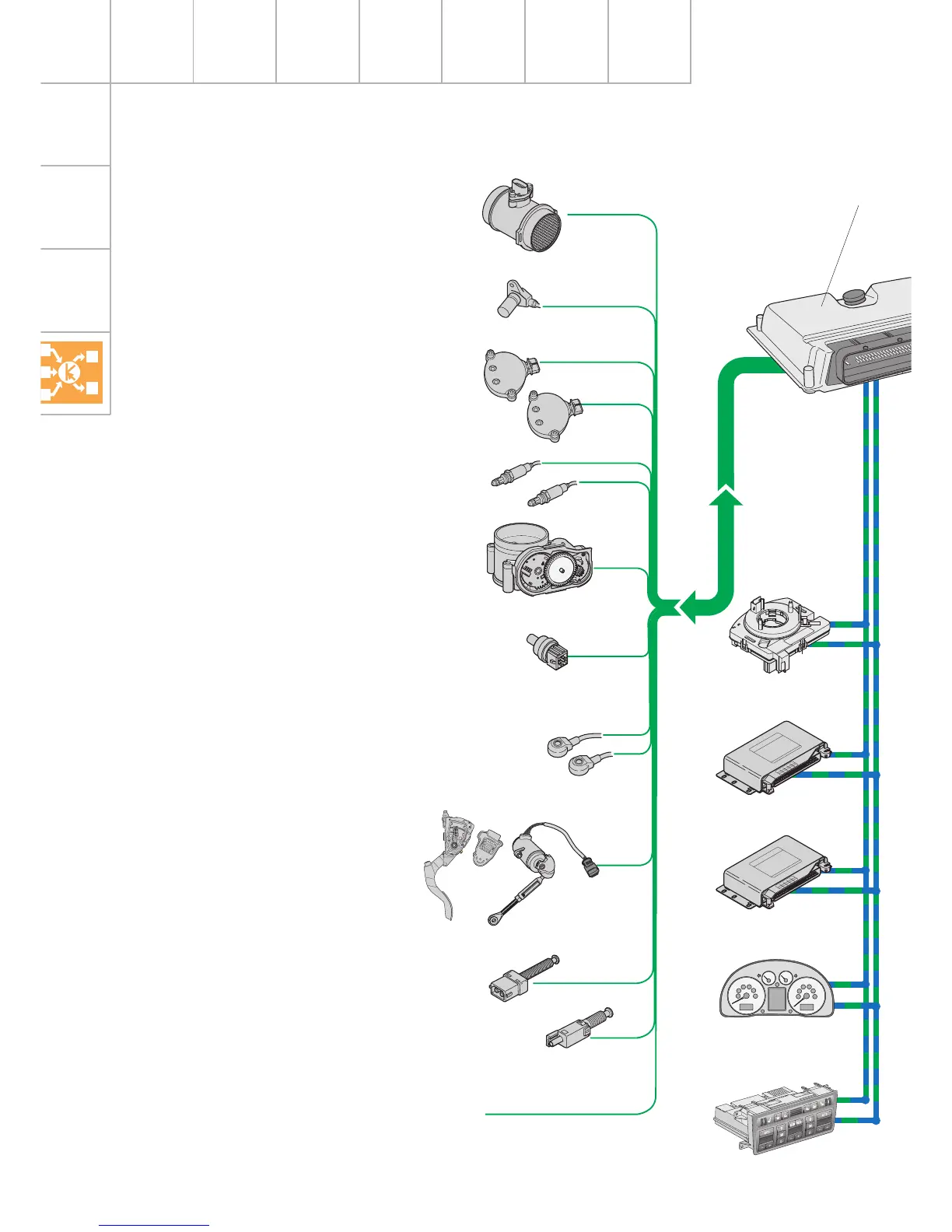

System overview
Motronic ME 7.1
Sensors
Engine Management
Altitude sender F96
(integrated in control unit)
Hot-film air mass meter G70
Engine speed sender G28
Hall sender G40 (bank 2) and
Hall sender 2 G163 (bank 1)
Lambda probe G39 (bank 1) and
lambda probe G108 (bank 2)
Coolant temperature sender G2 and G62
Knock sensor 1 G61 (bank 1) and
knock sensor 2 G66 (bank 2)
Brake light switch F and
brake pedal switch F47
Clutch pedal switch F3
(with manual gearbox only)
Additional signals
Air conditioner requirement signal
Air conditioner compressor,
bidirectional
Crash signal
CCS switch
Throttle valve control unit J338 with
throttle valve drive G186 (electric
throttle operation)
Angle sender -1- for throttle valve drive G187
Angle sender -2- for throttle valve drive G188
Pedal sender/accelerator pedal module with
accelerator pedal position sender (1) G79
and
accelerator pedal position sender (2) G185
Motronic
control unit J220
Control unit for
ABS with EDL J104
Automatic gearbox
control unit J217
* Combination processor
in dash panel insert
J218
* Air conditioner/Climatronic
operating and display unit
E87
Steering angle
sender G85
* No CAN businterface
with Audi A6
