Engine - Mechanics

Roller rocker

Exhaust valve

Every valve has a hydraulic valve lifter which

is integrated in the rocker. The rockers are

supported by a spindle shaft which is also

used to supply oil to the bearings and the

hydraulic valve lifters.

The two exhaust valves are actuated by a twin

roller rocker.

The single cam actuates the rocker by means

of a roller located between the rocker arms.

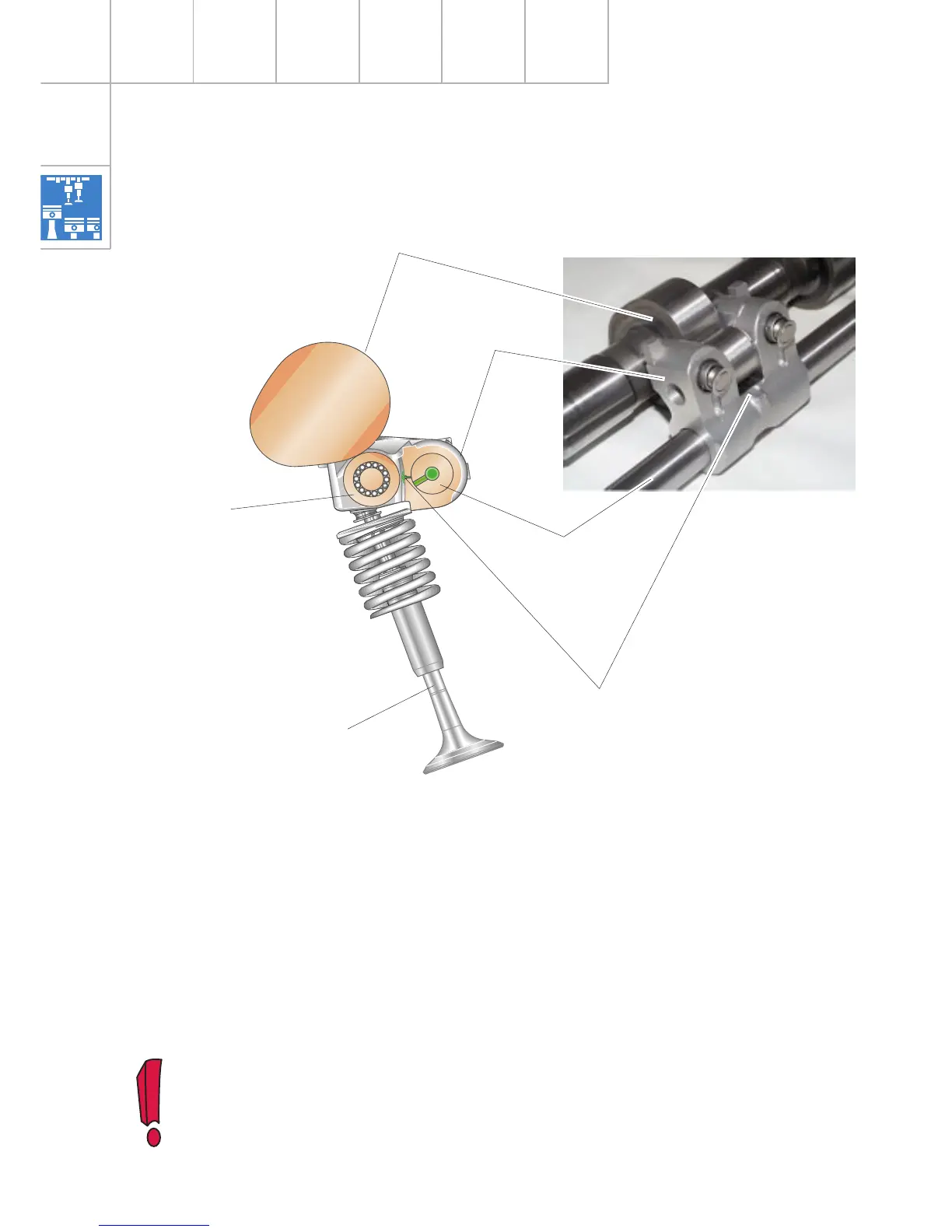

SSP217_022

Spindle shaft,

also used to

supply oil

Exhaust valve

20.2˚

Roller located between

rocker arms

Twin

roller rocker

Single cam

Oil spray hole

The individual hydraulic valve lifters

can be replaced without the rockers

needing to be removed.
