Engine - Motronic Subsystems

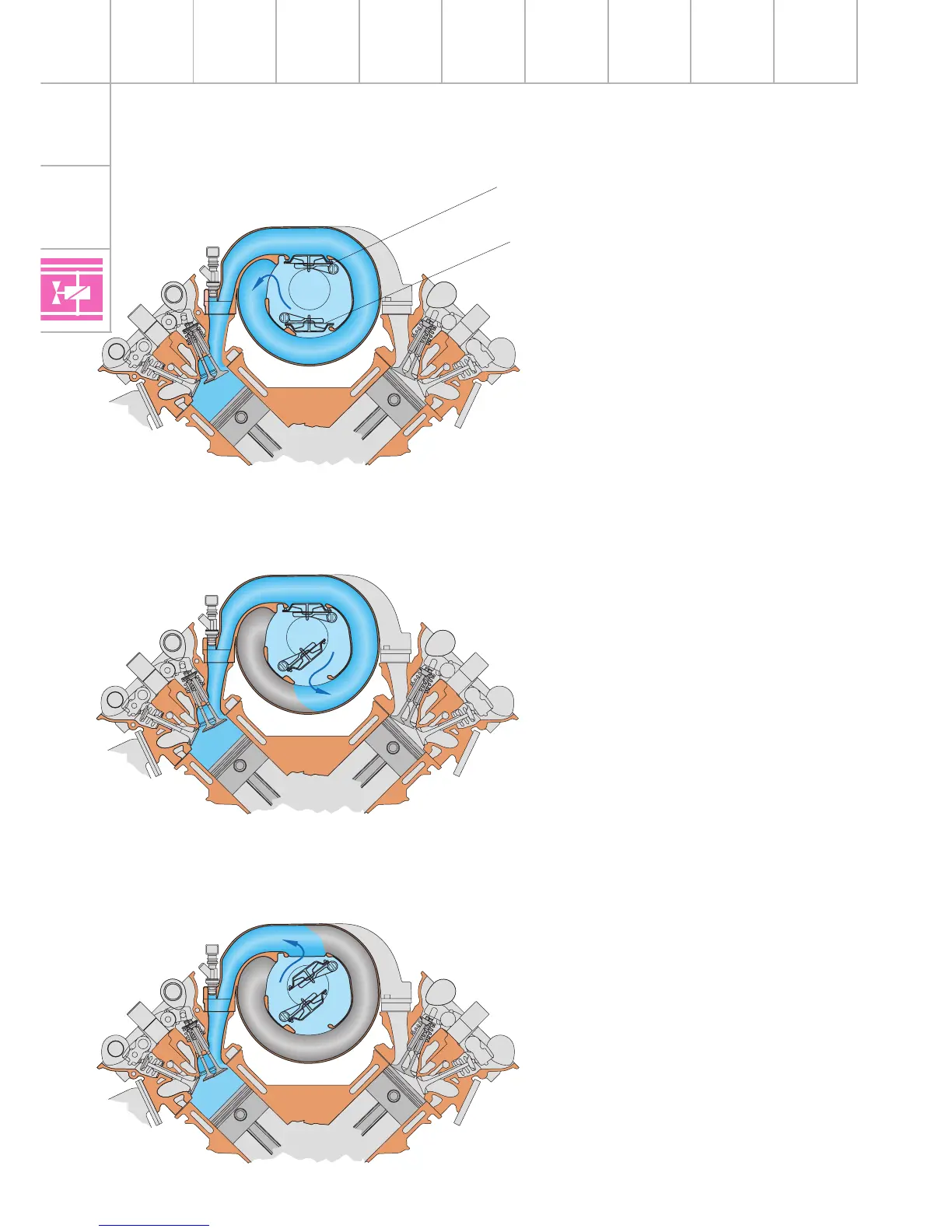

Stage 1
Lower speed range
Stage 2
Middle speed range
Stage 3
Upper speed range
In the upper speed range, the stage 3
intake manifold flap is also opened. The
intake air takes the shortest path to the
combustion chamber.
When the engine is switched off, both
flaps are open.
If the engine is idling, the two vacuum
units are evacuated by the appropriate
intake manifold changeover solenoid
valves. The intake manifold flaps are,
therefore, closed between the idling
speed and the switching speed.
SSP217_033
SSP217_034
SSP217_032
Intake manifold flap
Stage 3
Intake manifold flap
Stage 2
In the middle speed range, the intake
manifold changeover solenoid valve
N156 allows atmospheric pressure into
the vacuum unit of the stage 3 intake
manifold flap.
The stage 2 intake manifold flap is
opened and the intake path is shortened.

Audi V8 Specifications

General

Configuration Type	V8
Aspiration	Naturally Aspirated
Displacement	3562 cm3
Power	184 KW
Torque	340 Nm
Fuel System	Fuel injection
Configuration	V
Displacement Range	3.6
Cylinder Bore	81 mm
Stroke	86.4 mm
Valvetrain	DOHC
Torque Output	251 lb-ft
