Audi V8 - Page 33

33

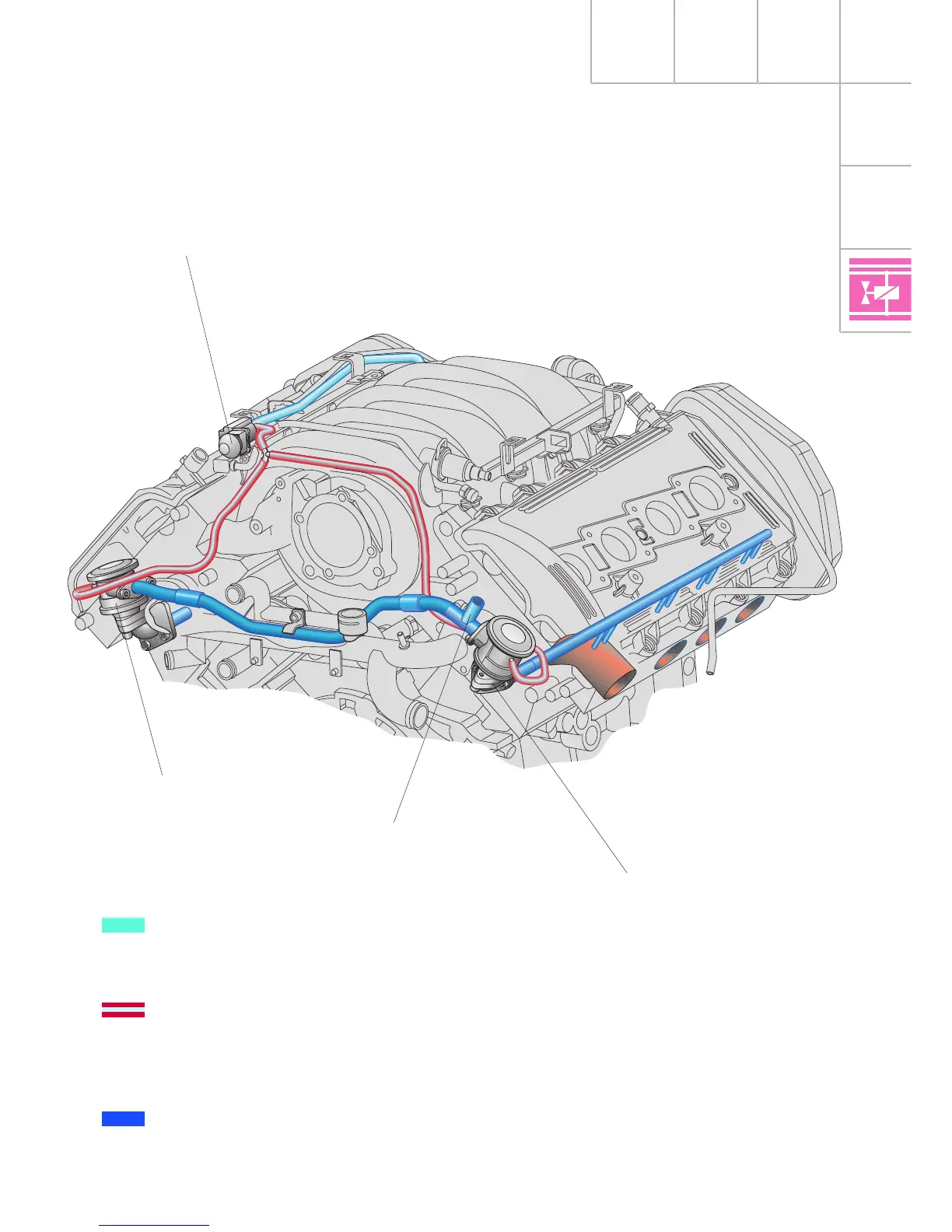

SSP217_001
Secondary air inlet valve N112
Combination valve
Cylinder bank 1
Connection for fresh air from
secondary air pump V101
Combination valve
Cylinder bank 2
Vacuum from engine
Control line (vacuum or atmospheric
pressure from secondary air inlet valve
N112)
Fresh air from secondary air pump
V101
