Console functions.
This section of the master
module looks after the
STUDIO LOUDSPEAKER
and FOLDBACK outputs of the
console. In every case the same
sources are available -
EXT 1
EXT 2
CONTROL ROOM (C/RM)
AUXILIARY A (AUX A)
AUXILIARY B (AUX B)
EXT 1 and 2 are external inputs to
the console and could be anything
you care to plug in.
C/RM selects the control room
monitor output as the source. This
is used to provide a playback of
the MIX to the studio speakers,
or to set up a quick foldback mix,
perhaps with a little help from the
Aux A and Aux B buses.
CUE A and CUE B are mono
sources which can be independently
selected to the left and right sides
of the studio speaker or foldback
outputs.
Each output has a level control.
The studio loudspeaker has a
ON switch and the FOLDBACK
outputs have SOLO switches.
These enable the foldback mix to
be created or checked in the control
room. This is always AFL.

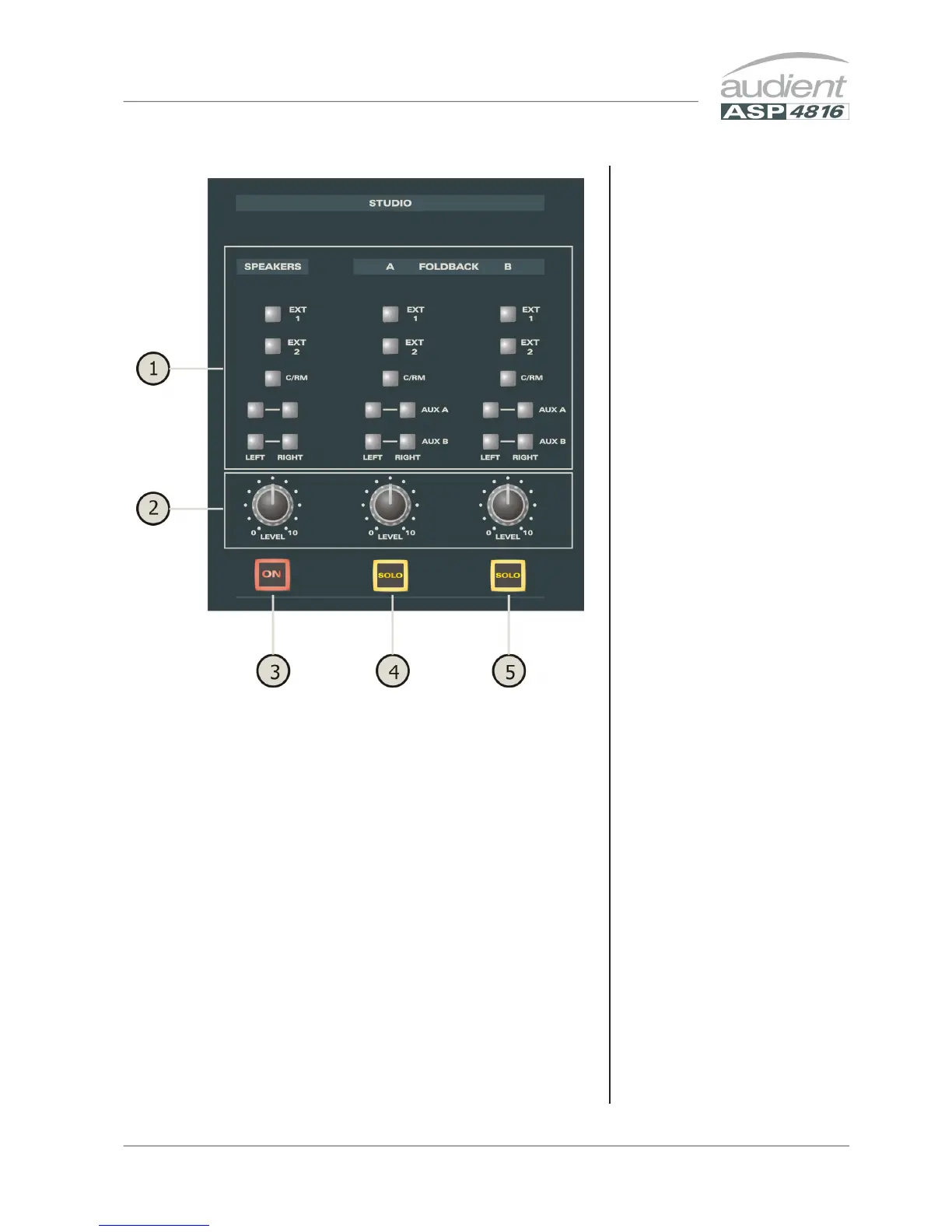

1 SOURCE SELECT. These
select the signals to be sent to
the studio loudspeakers and
foldback.
2 The LEVEL controls set the
Studio Loudspeaker and
Foldback levels.
3 Studio Loudspeaker ON
switch. This activates the
Studio Loudspeaker.
4 FOLDBACK 1 SOLO switch.
Allows foldback 1 to be
checked on the control room
monitoring system.
5 FOLDBACK 2 SOLO switch.
Allows foldback 2 to be
checked on the control room
monitoring system.
STUDIO SPEAKERS and
FOLDBACK
MASTERS
