Console functions.
MIX OUTPUTS
There are 3 sets of stereo output
connectors enabling the connection
of 3 stereo recording machines.
The outputs can be used for many
purposes of course.
Associated with the outputs are
the mix insert points. They allow
a nal mix processor to be inserted
into the MIX path, and are located
before the MIX compressor/
limiter.

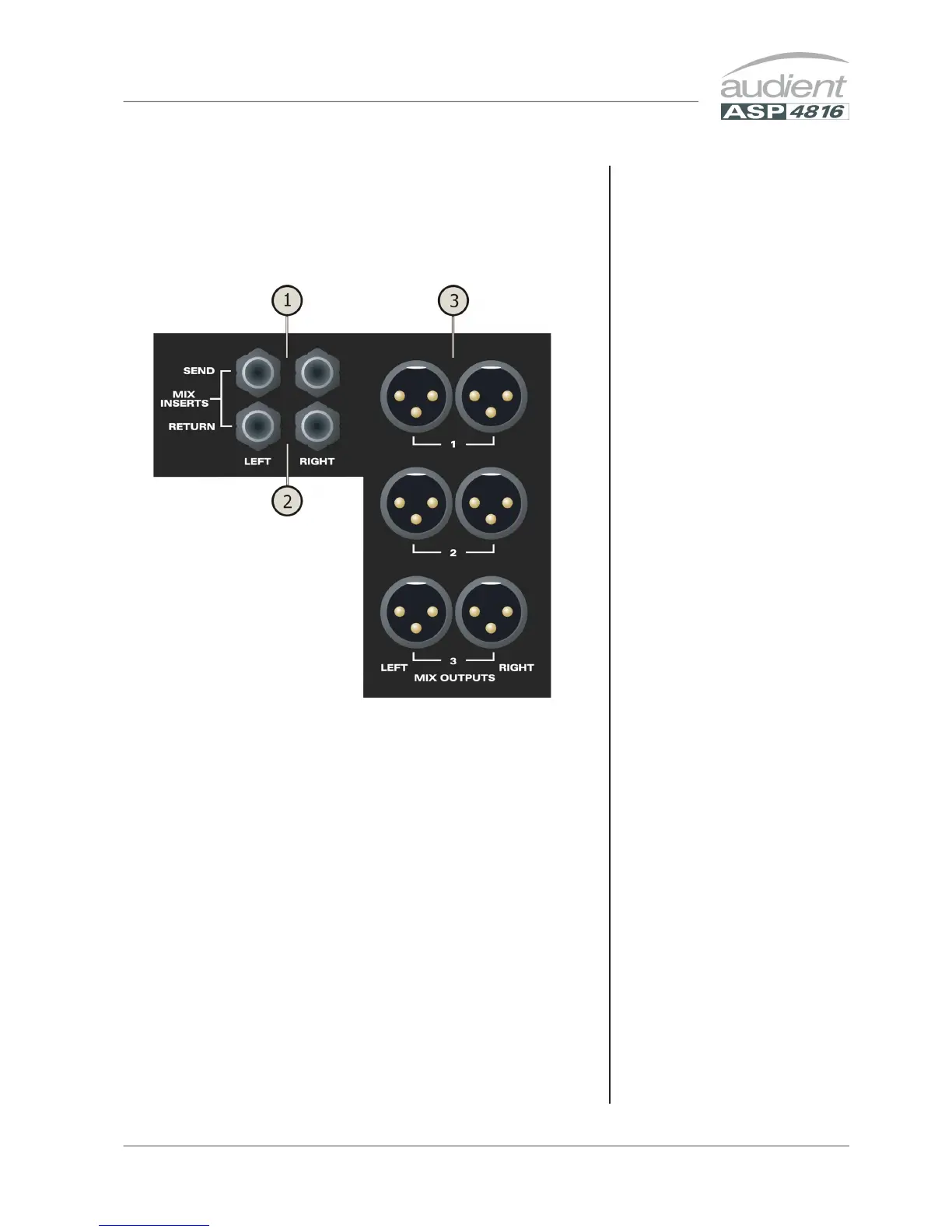

1 MIX INSERT SEND jacks.
There is a separate send output
for the left and right mix.
2 MIX INSERT RETURN jacks.
There is a separate return input
for the left and right mix.
3 MIX OUTPUT (Stereo Output)
connectors. There are three
sets of connectors which can
all be used simultaneously.
MASTERS
