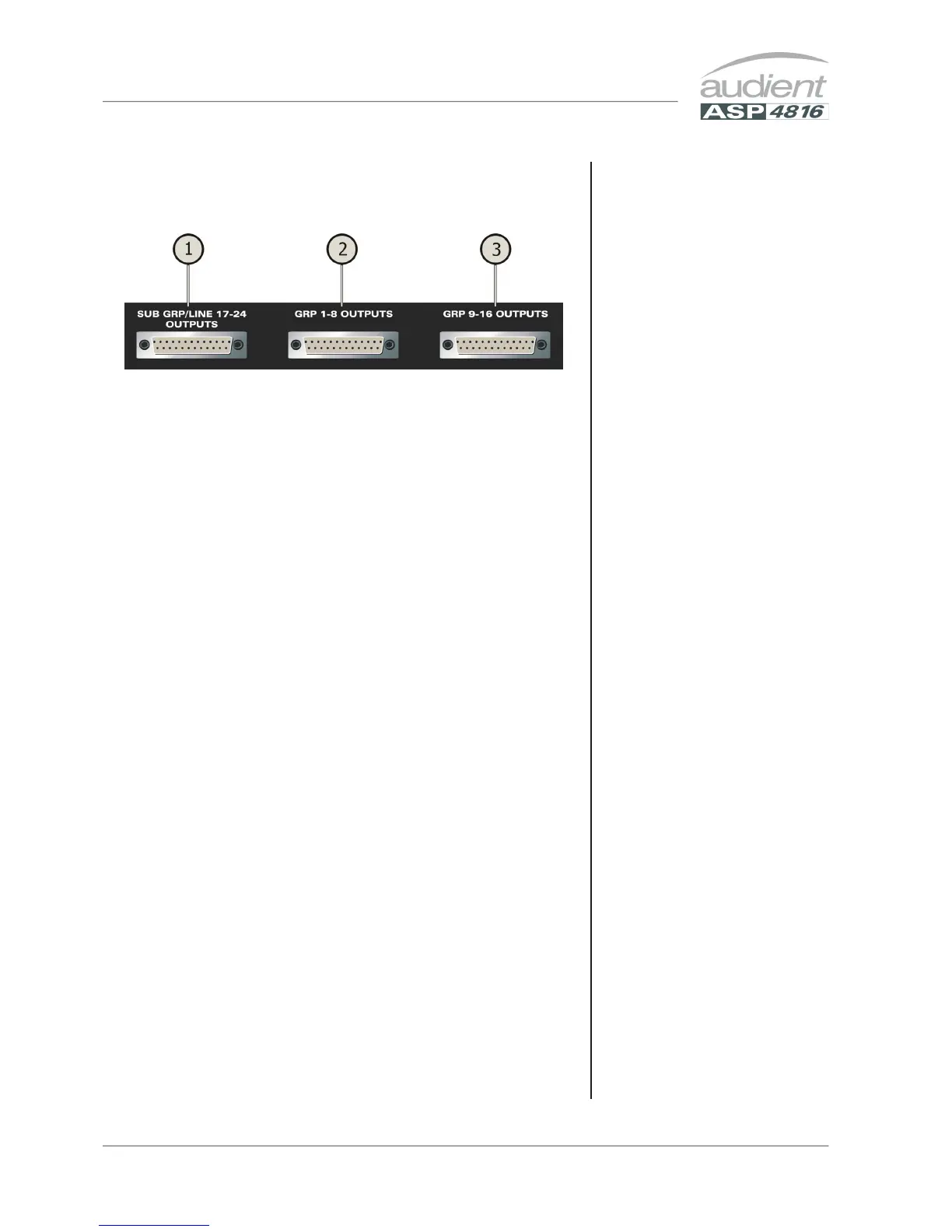

Console functions.
1 SUB-GROUP/LINE 17-24
OUTPUT CONNECTOR
2 CONNECTOR for BUS
outputs 1 through 8.
3 CONNECTOR for BUS
outputs 9 through 16.
BUS, SUB-GROUP/
LINE 17-24 OUTPUT
CONNECTORS
Rather than having individual
connectors for each bus and sub-
group output it is much more
convenient (and quicker to make
a connection) if they are on D-sub
multi-pole connectors.
The bus sends are split across 2
connectors with each carrying the
bus outputs for 8 tracks. The sub-
group/line 17-24 outputs are on a
third connector.
MASTERS
