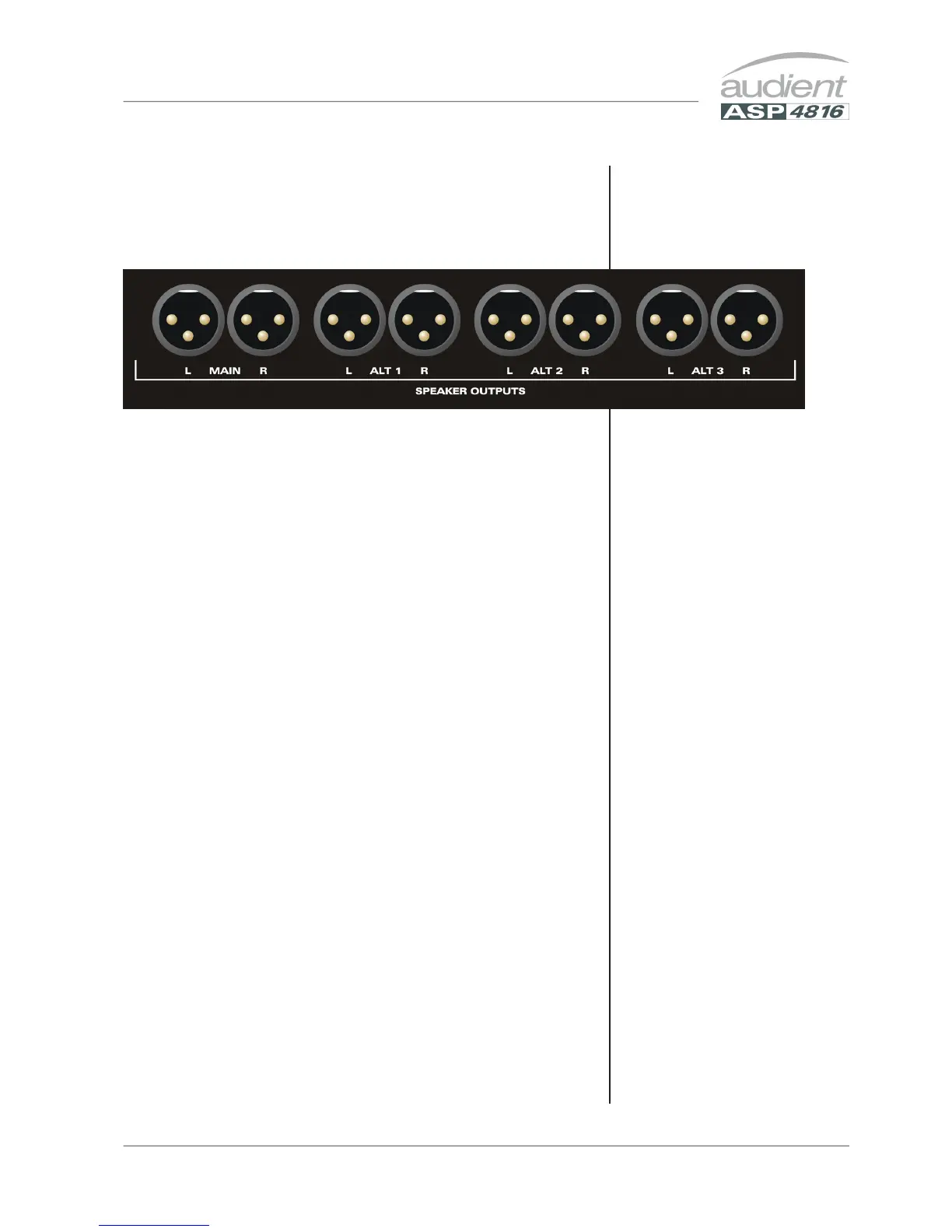

CONTROL ROOM
CONNECTORS
These are the connectors for the
control room loudspeakers. There
is a main output and 3 alternative
outputs which can be selected from
the control surface of the console.
Each output is stereo, having a left
and right connector.
The console does not contain any
power amplification and these
outputs should be connected into
a suitable power amplier for the
loudspeakers in use.
The speakers may of course be self
powered in which case connection
should be made to the inputs on the
loudspeakers.
1 MAIN Control room
loudspeaker output.
2 ALTERNATIVE 1 loudspeaker
Output.
3 ALTERNATIVE 2 loudspeaker
Output.
4 ALTERNATIVE 3 loudspeaker
Console functions.
MASTERS
