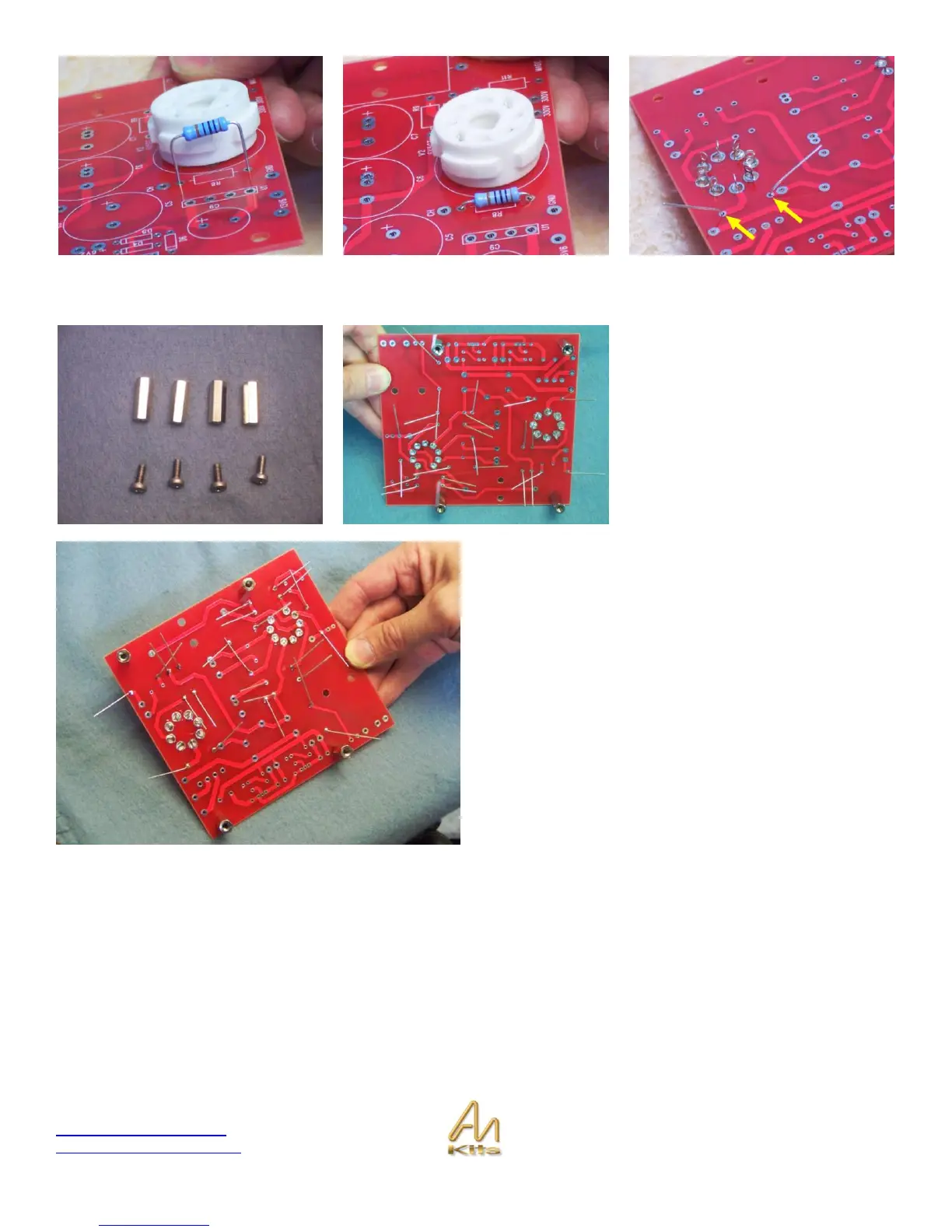

Above shows the installation of the 100R resistor into the R8 position – Bend the legs slightly on the underside to keep the
resistor in place.
We suggest you install the spacers on
the board at this point.
Once you are feeling confident of your resistor installation it
is time to solder on the underside of the board.
For first time soldering here are some tips to follow:
1. Clean the tip with a wet sponge after each solder
so as not to let resin build up.
2. „Tin‟ the tip (i.e. add a small amount of solder to it)
just before soldering.
