Digital Board Installation

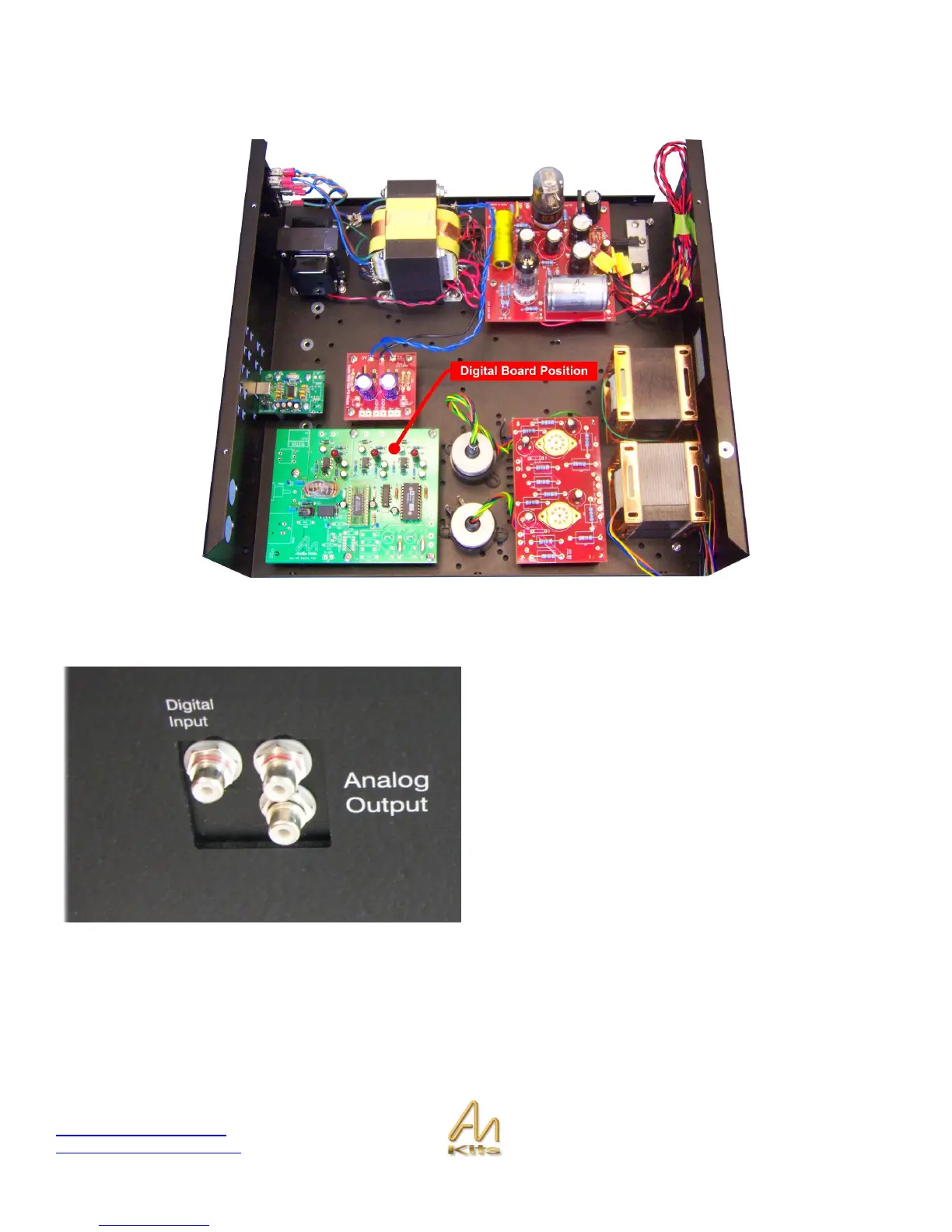

Install the 5 aluminum spacers on the board and position in the chassis.
Once the board has been positioned in the chassis you will want to connect up the input RCA‟s.
You will need to install three RCA‟s – 2 are for the analog output and one is for the digital input.
The RCA‟s on top of each other are the analog output
RCA‟s, install these into position along with the single input
RCA. You can use a red one on top and a black one below.
