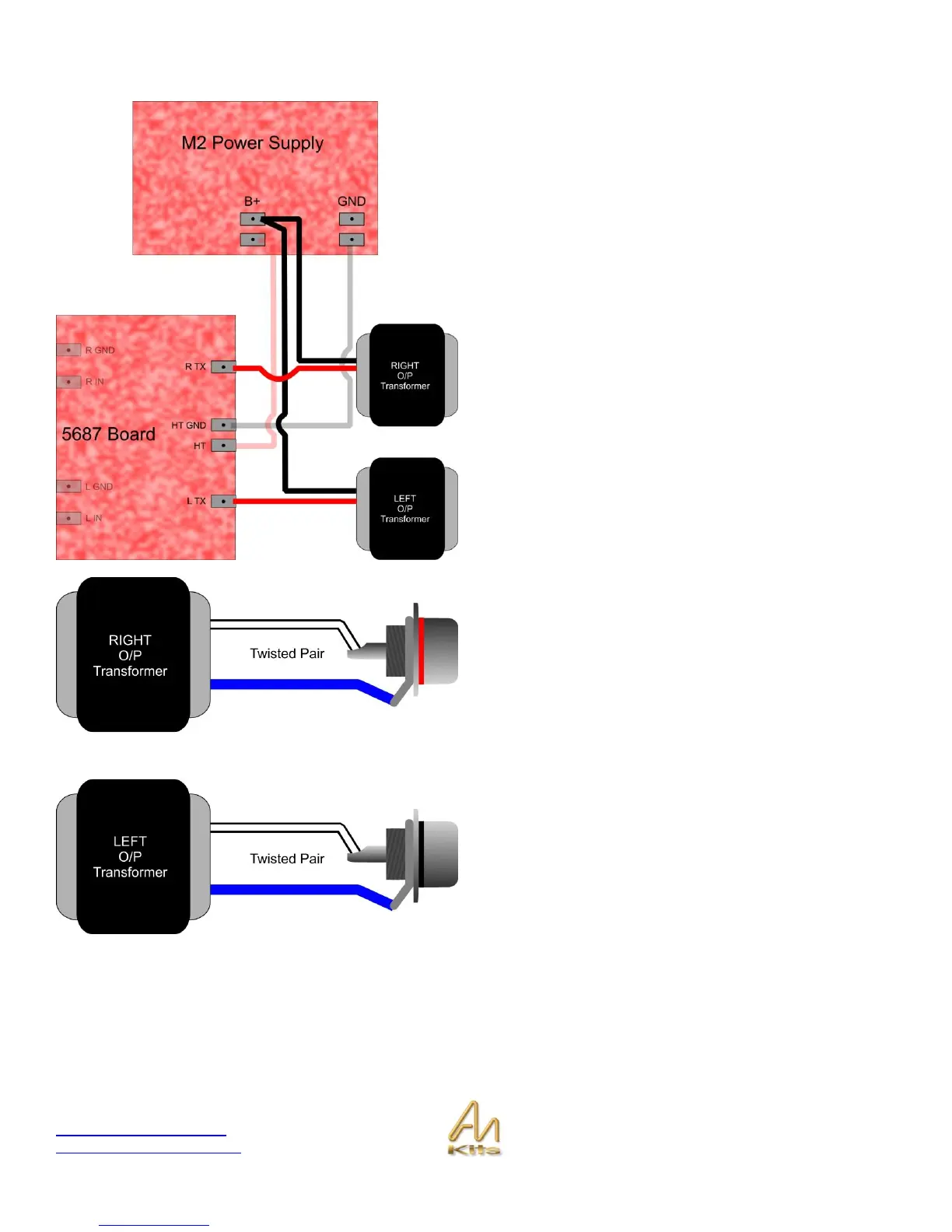

As you can see from the diagram, the Black leads from
each of the transformers connect to a B+ pad on the M2
Power Supply board.
The Red lead from the Right output transformer connects
to the R TX pad on the 5687 board.
The Red lead from the Left output transformer connects to
the L TX pad on the 5687 board.
This type of output transformer has a Blue and a White lead
at its output.
The Blue and White leads from each transformer should be
twisted together and the twisted pair connected to its
relative RCA output connector.
Connect the Blue lead to the RCA‟s earth tag.
Connect the White lead to the RCA‟s signal tag.
Note that the diagram only shows a „shortened‟ version of
the connections for clarity. In reality, you will be taking
these leads from the front of the chassis, all the way to the
back of the chassis.
