Page 49

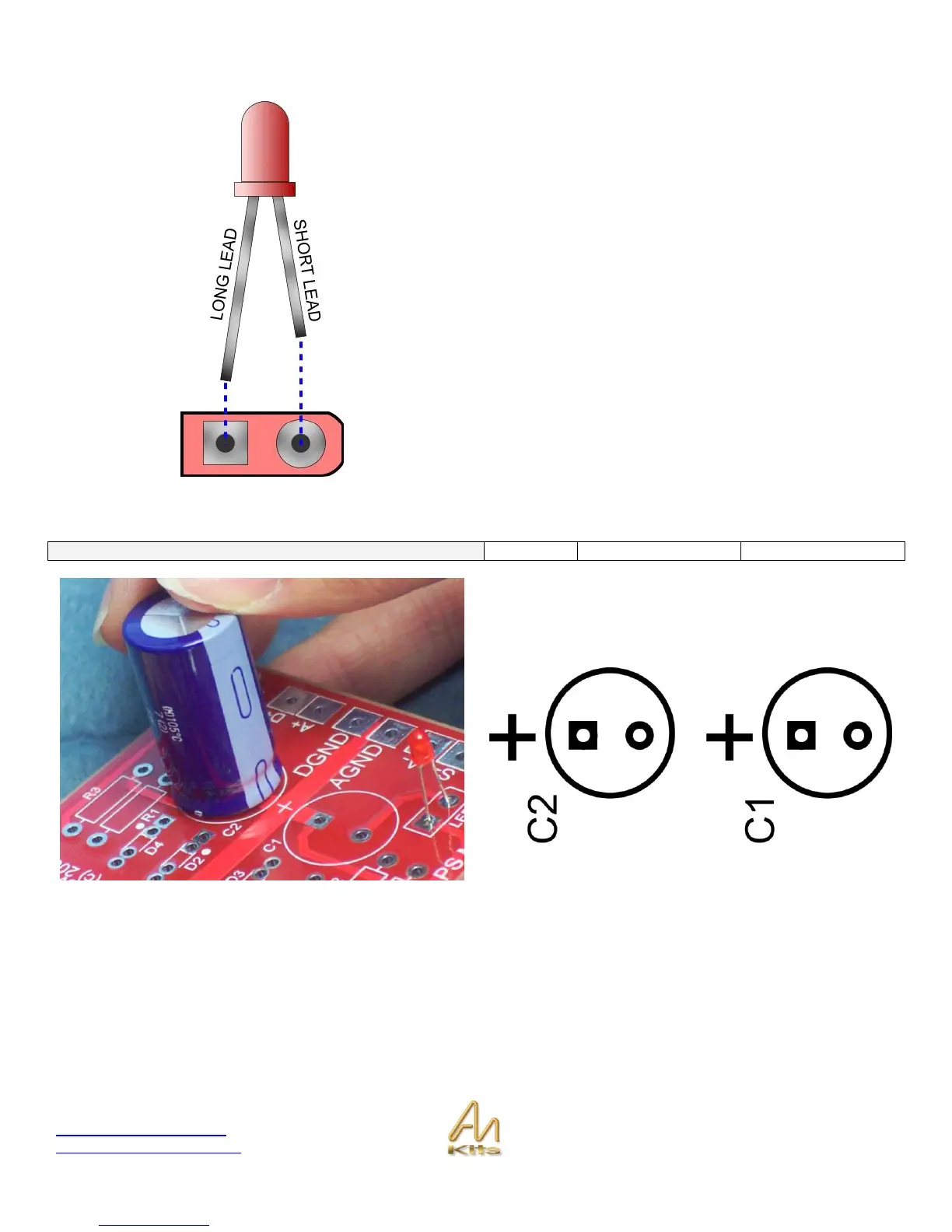

Installing the LED’s
Install the LED‟s into the LED1 and LED2 positions.
You will notice a square end on the stencil and a rounded
end – Insert the LONG lead of the led on the SQUARE
end.
Installing the Capacitors
Capacitors (Electrolytic)
2
4700uf 16V
C1, C2
Lets now install the 2 Electrolytic capacitors in the board.
The stencil on the board for each capacitor is a circle with a
+ sign beside it.
