Now TIN the shield by adding solder to it.

Now repeat this process at the other end of the cable.

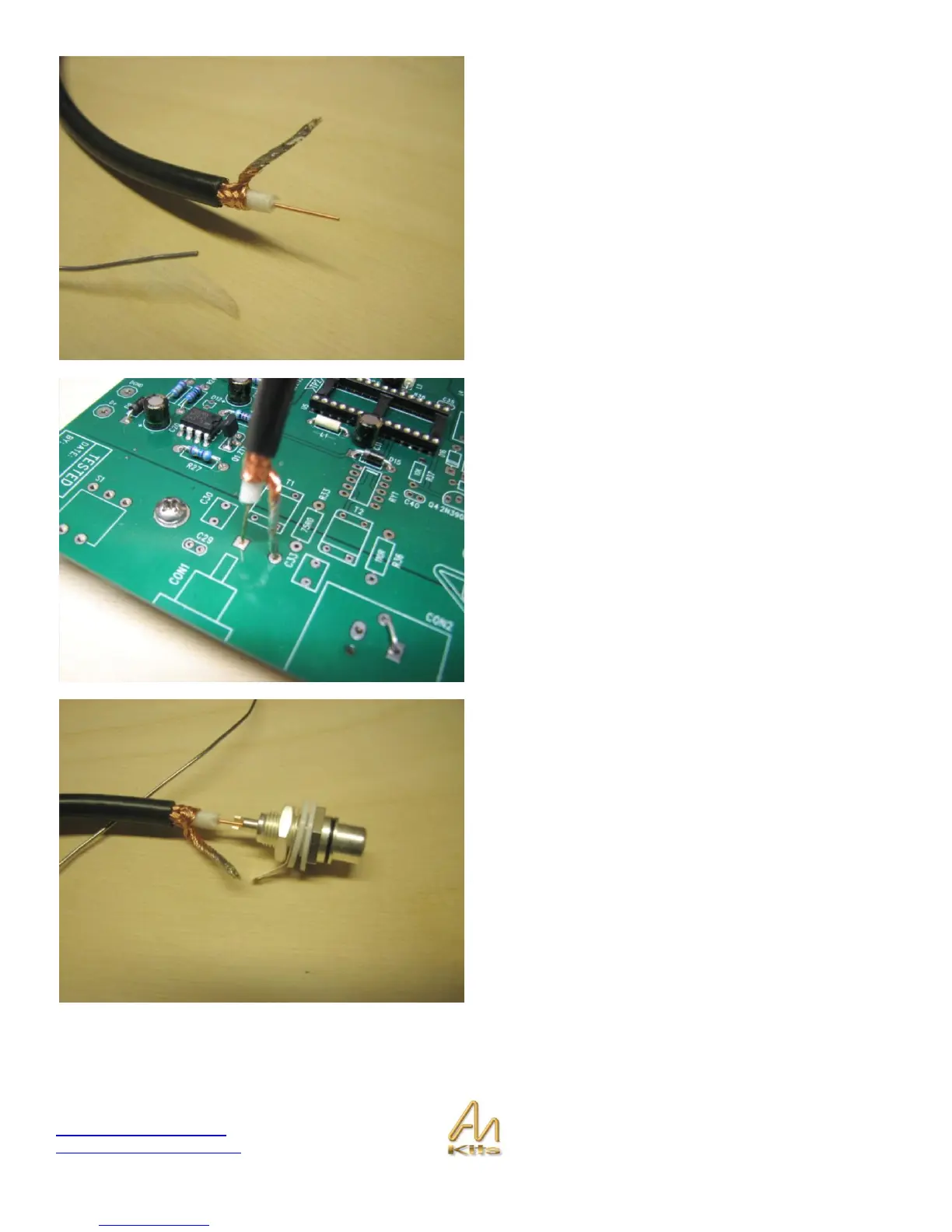

This picture shows how the solid core will fit into CON1 and

the shield will be soldered to the pad beside it.

This picture shows how the other end of the cable will

connect to the RCA connector. The RCA connector must

first be attached to the rear panel as follows:

Install the single RCA into the back panel in the top left

corner of the 4 positions available and then solder the Co

axial cable to the RCA.
