Audio Technica AT-LP120XBT-USB User Manual

4
1
Dust cover
2
Feet
Adjust the level of the product.
3
Pre-amplifier selector switch
If using an amplifier with a PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
4
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its line input jack. The red terminal is the
right channel and the white terminal is the left channel.
5
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground line.
6
USB output
Use this output to connect your turntable to the USB input of your
computer.
7
Power input jack
Connect the AC adapter.
Part names and functions

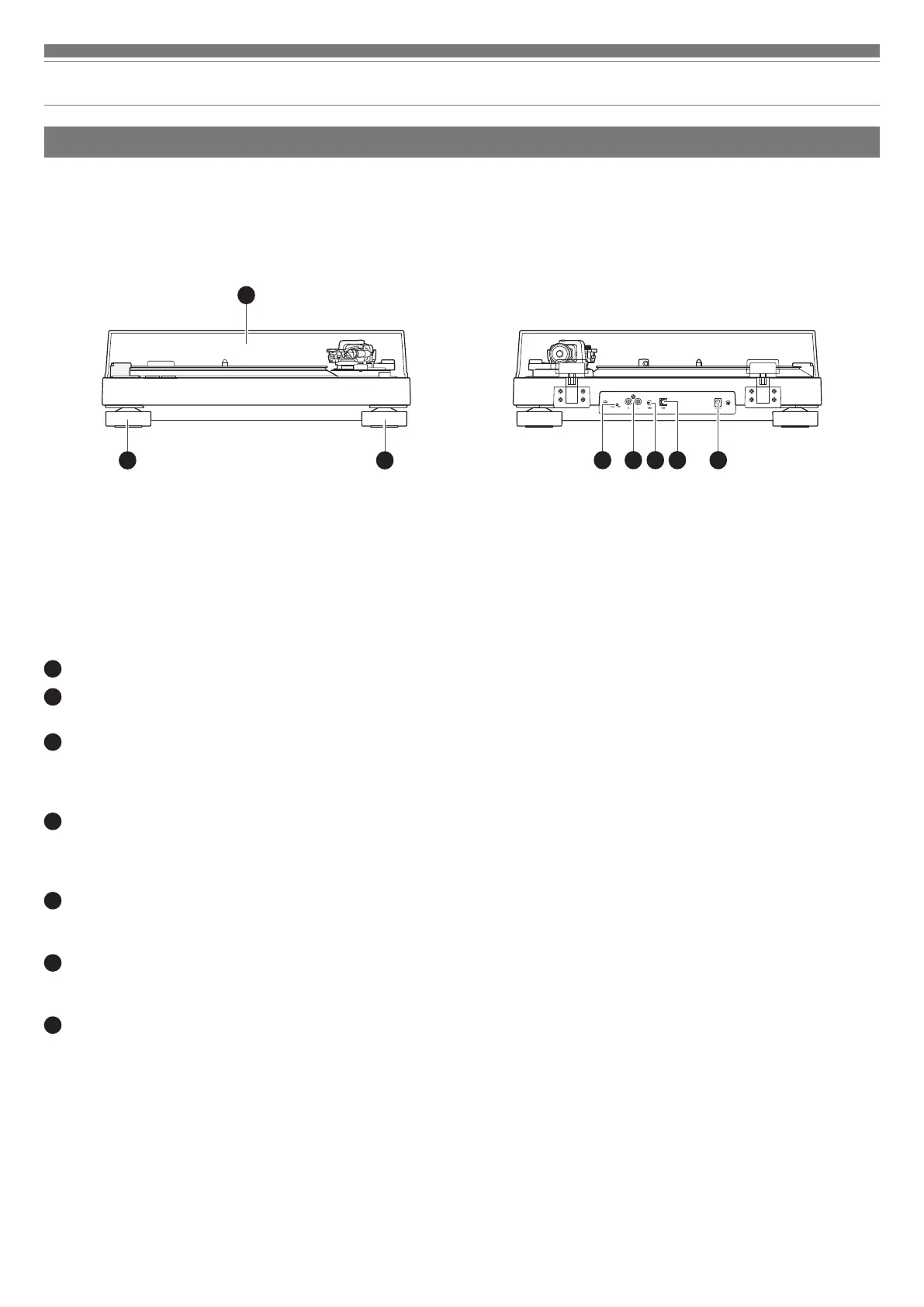

Front and rear view diagram
2
3 4 5 6 7
2
1

Audio Technica AT-LP120XBT-USB Specifications

General

Drive Method	Direct Drive
Motor	DC servo motor
Speeds	33-1/3 RPM, 45 RPM, 78 RPM
Bluetooth	Yes
USB Output	Yes
Phono Preamp	Yes
Cartridge	AT-VM95E
Signal-to-Noise Ratio	>50 dB
Bluetooth Version	5.0
Platter	Aluminum
Tonearm Type	S-shaped tonearm
Wow and Flutter	<0.2% WRMS
USB Function	A/D: 16 bit 44.1 kHz or 48 kHz USB selectable
Power Supply	100-240V, 50/60 Hz, 1.5A
Weight	8 kg
Bluetooth Output	SBC
Stylus	0.3 x 0.7 mil Elliptical Diamond Stylus
