Part names and functions

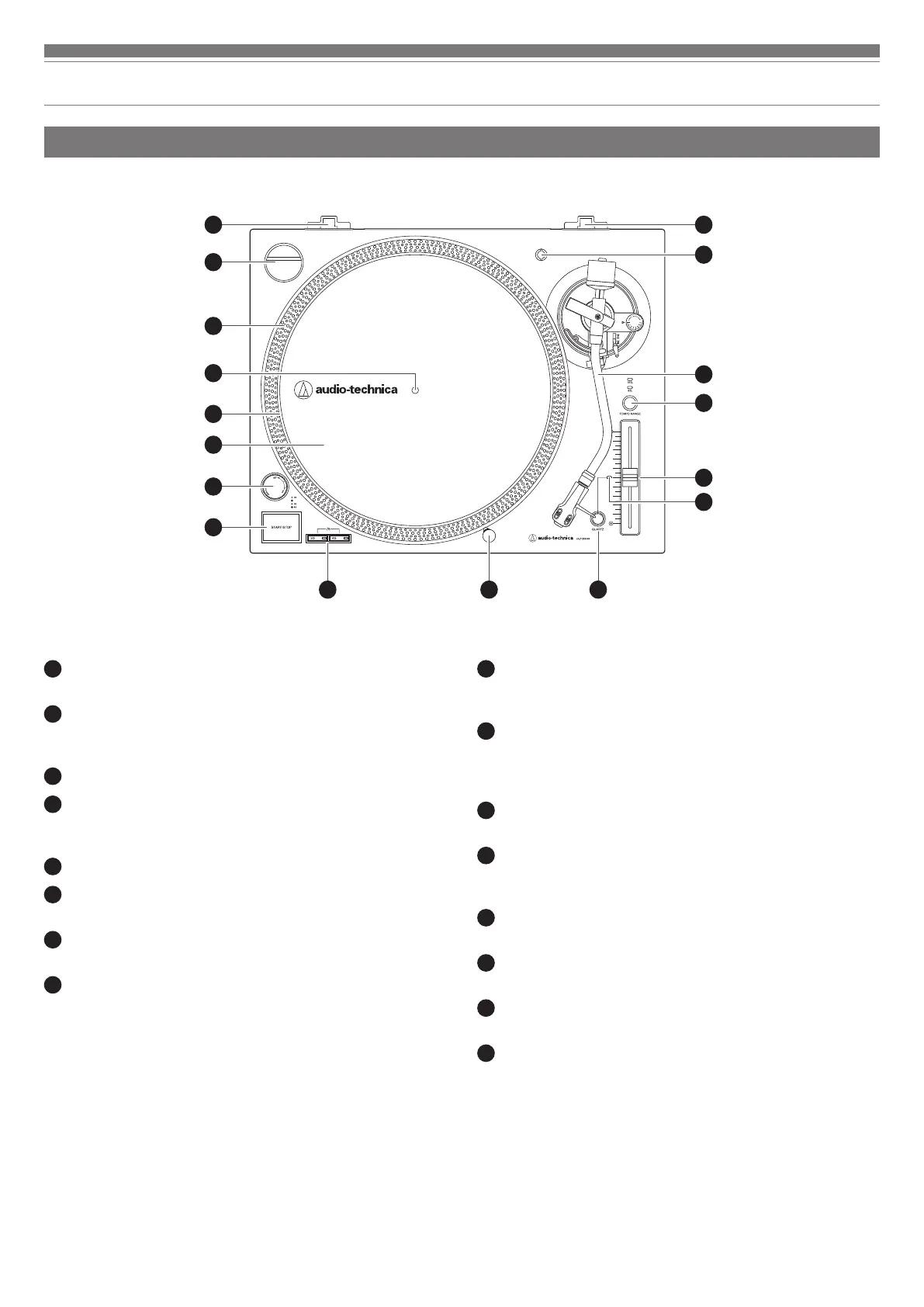

Top view diagram
9
Removable stylus target light
Provides illumination directed at the stylus position for easier
cueing in low light. Easily plugs into jack on top of turntable deck.
10
Quartz button
Turns the pitch function on and off. When the quartz is activated
the platter will hold the RPMs at 0% pitch, regardless of the pitch
slider position and tempo range control settings.
11
Pitch selection indicator
Shows red for standard or locked RPM setting.
12
Pitch adjust slide control
Use in conjunction with pitch button to vary the platter’s rotational
speed. In the center detent position quartz lock is active.
13
Tempo range button
Select 8 or 16% tempo range.
14
Tonearm
For details, refer to “Tonearm” on p.5.
15
Headshell receptacle
Storage receptacle for extra headshell (not included).
16
Dust cover hinge holders
Attachment points for dust cover hinges.
1
45-RPM adapter (shown in receptacle)
Adapts 7" records with large center holes to fixed center spindle.
2
Strobe dots (on platter edge)
Operate in conjunction with stroboscopic light located under the
power dial to provide visual indication of accurate platter speeds.
3
Spindle
4
Platter
Cast aluminum platter mounts directly to center spindle/motor
shaft.
5
Felt mat
6
Power dial
Controls power to the unit.
7
START/STOP button
Engages and disengages the motor/platter.
8
Platter speed buttons
Select 33 or 45 RPM platter speed. 78 RPM is selected by pressing
both the 33 and 45 buttons simultaneously; both buttons should
be illuminated.
8
11
16
2
3
1
4
5
6
7
16
14
13
12
9 10
15
