6

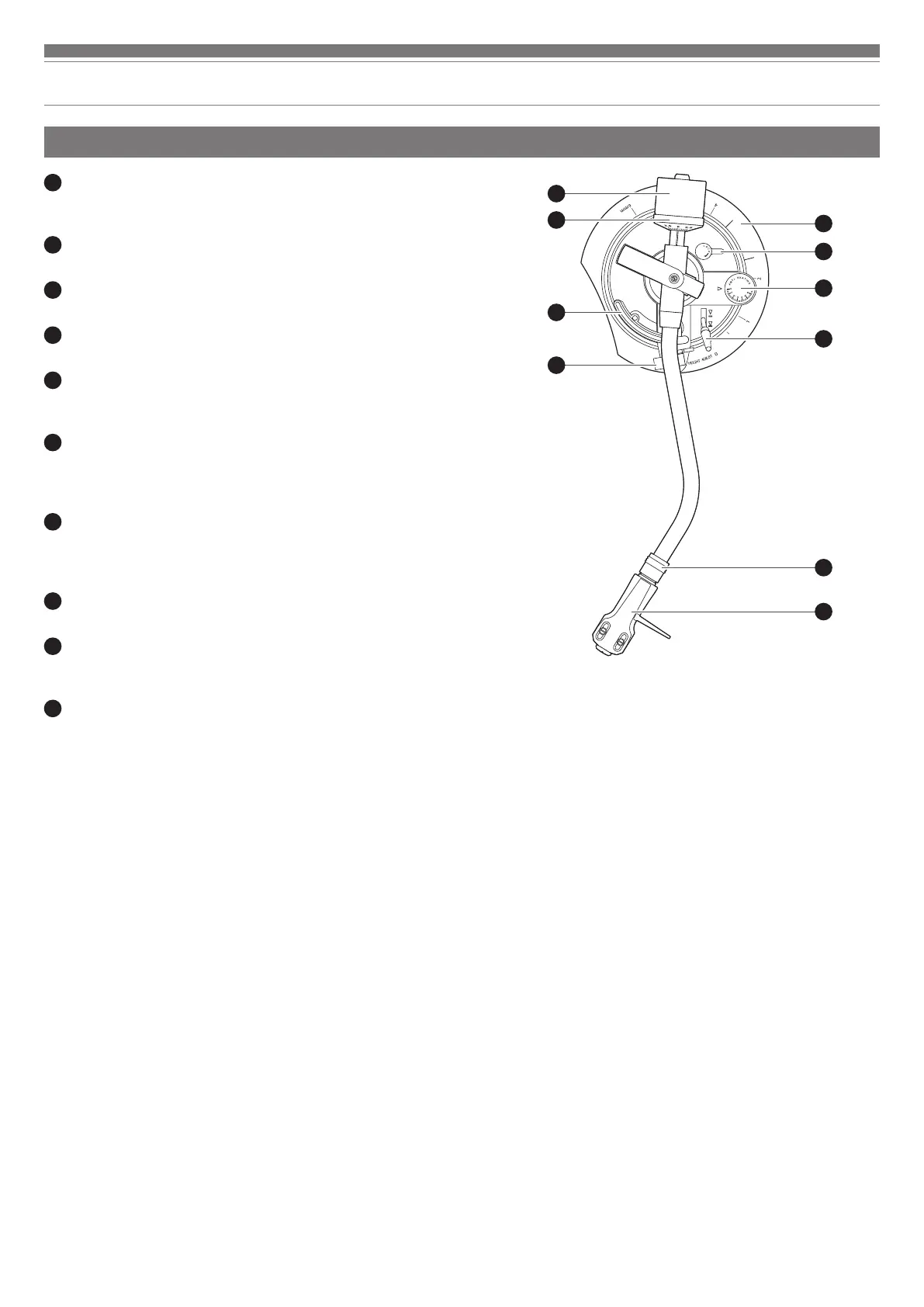

Part names and functions
Tonearm
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking
force.
2
Tracking force gauge ring
Use to adjust the tracking force.
3
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
4
Tonearm rest with clamp
Use the clamp to secure the tonearm so that it does not move.
5
Tonearm height adjustment dial
Raises and lowers the tonearm to allow it to remain parallel to the
record surface.
6
Tonearm height lock
Locks the tonearm height setting.
Always fully unlock before attempting to make a height
adjustment.
7
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it
inward. This force can be counteracted by setting the same values
for anti-skate and the tracking force.
8
Tonearm lift control lever
Operates the tonearm lift.
9
Locking ring
Rotate the ring to the left (counterclockwise) to secure the
headshell. To remove the headshell, rotate the ring to the right.
10
Headshell
The cartridge (AT-XP3) is attached to the headshell (AT-HS6).
4
7
6
5
9
10
8
1
3
2
