Audio Technica AT2020USB-X User Manual

30
8

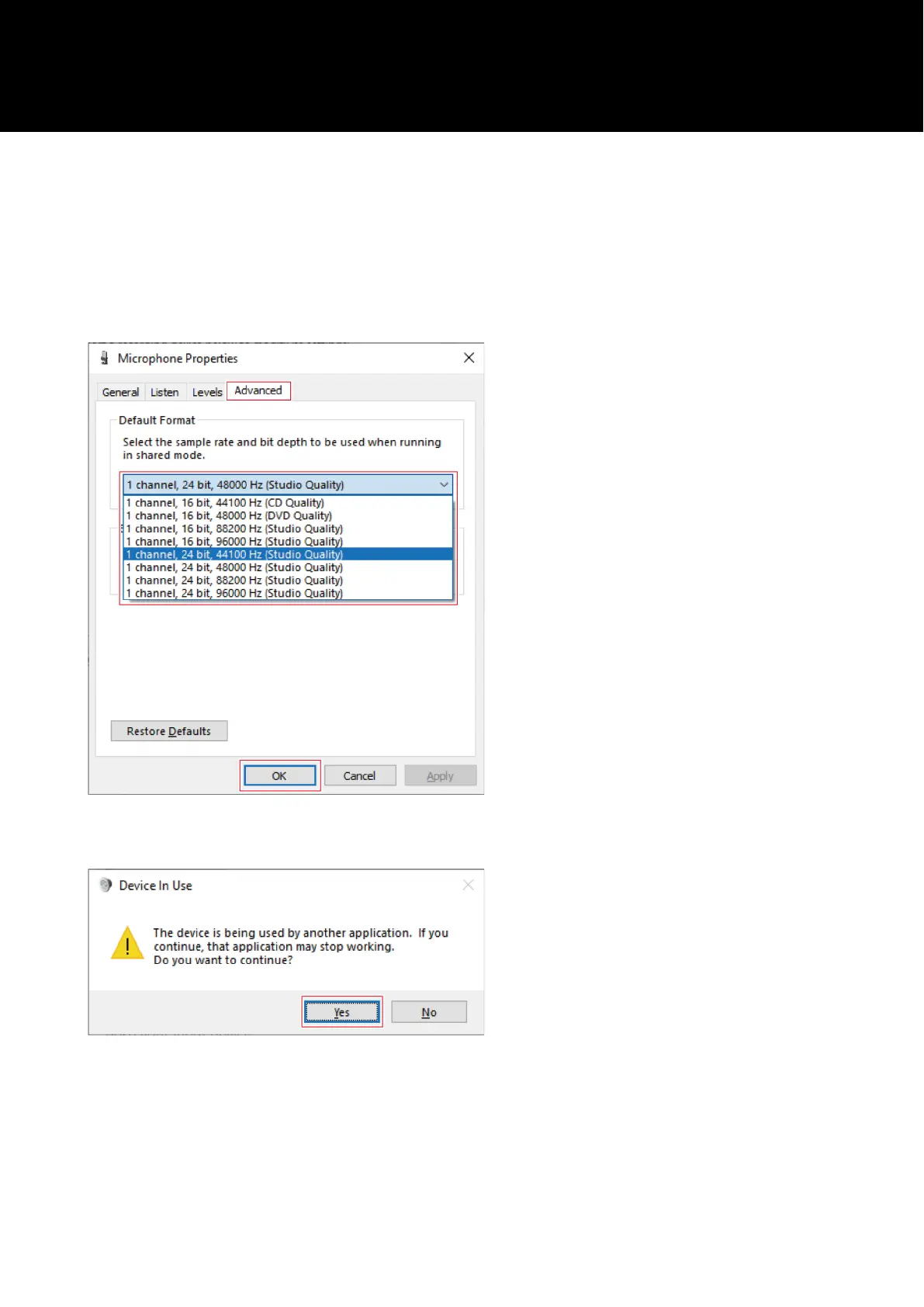

Select the "Advanced" tab, select the sample rate and bit depth under "Default Format", and then click "OK".
• With this product, you can select a sample rate of up to 96 kHz. Selecting a high sample rate may result in high-
quality recorded audio data but will also make these files larg
e.
• For stable recording with less load on the computer, change the sample rate to 48 kHz.
• When controlling the microphone from the recording software, select the "Give exclusive mode applications
priority" check box under "Exclusive Mode". The sample rate will be set according to the settings of the recording
software.
9
When a "Device In Use" message appears, click "Yes".

Audio Technica AT2020USB-X Specifications

General

Cable length	2 m
Control type	Buttons, Rotary
Plug and Play	Yes
Product color	Black
Windows operating systems supported	Windows 10, Windows 11, Windows 8.1
Power source	USB
Input voltage	5 V
Device interface	3.5 mm (1/8\
USB connector type	USB Type-C
Connectivity technology	Wired
Cables included	USB Type-C to USB Type-A
Number of products included	1 pc(s)
Type	PC microphone
Bit rate	24 bit
Sample rate	96 kHz
Volume control	Rotary
Voice coil type	Dynamic
Microphone frequency	20 - 20000 Hz
Microphone Total Harmonic Distortion (THD)	1 %
Output impedance	32 Ω

Weight and Dimensions

Height	142 mm
Diameter	52 mm
Microphone weight	373 g
