Installation
7
POWER
MAX
BASS
CONTROL
WIDE
MAXMIN
SWEEP
MIN MAX
-50Hz
-35Hz
-80Hz
BALANCED
INPUT
L R
OUTPUT
RL
DASH REMOTE
+12V GROUND
REMOTE
ABD40J
D IGITAL B A SS RECON S TRUCTI O N PROCESSOR
R
SUB
LEVEL
MAX
MIN
PWR
BATTERY
-+

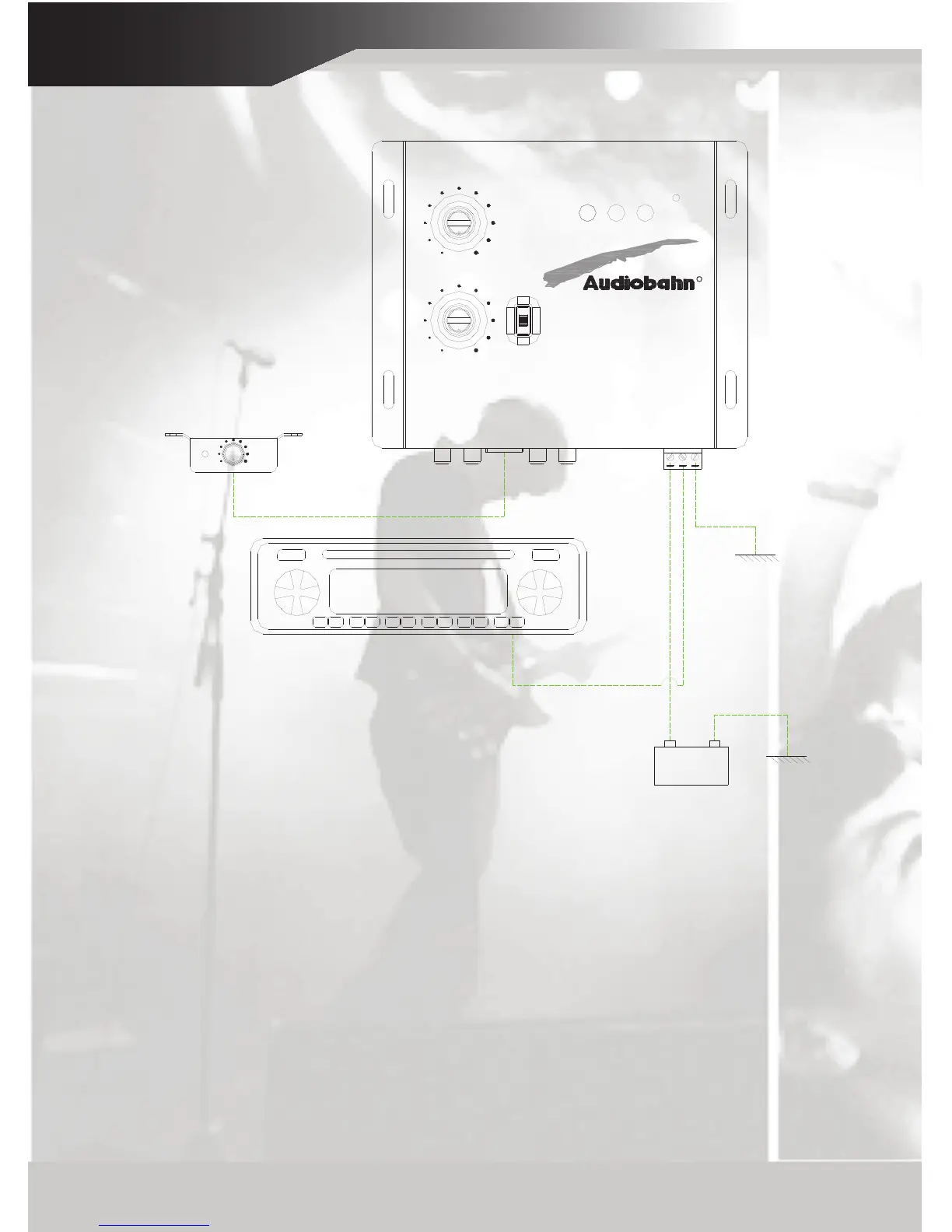

B + (12V): Connect the red wire to the car battery or other power source.
REMOTE: Connect the orange cable to the remote trigger cable (12V DC) of the car or
stereo equalizer.
GND: Connect the black wire to the chassis for grounding.
